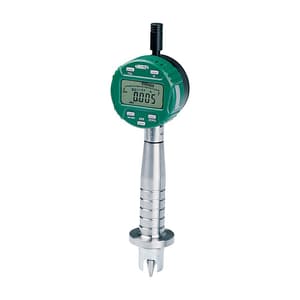

insize 8 - 12N Digital Flushness Gauge, 2936-51
Roll over image to zoom zoom_in
- Product Type: Flushness Gauge
- Measuring Range: ±5 mm
- Measuring Force: 8-12N
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹70389.36 (Incl. of all taxes)
₹59652+ ₹10737.36 GST (18%)
MRP ₹84017
SAVE 29%
7 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Data output

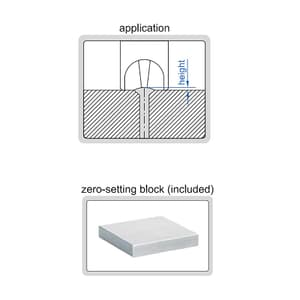

- Measure the edge of fastener to base or highest point of fastener to base
- Carbide measuring face
- Digital indicator dispaly can be rotated by 320°
- Digital indicator can keep preset data and tolerance data in memory after restart
- CR2032 battery, automatic power off (time is adjustable)
- Optional accessory: wireless transmitter (code 7315-51B, receiver is needed)
Digital indicator button function:
- Tolerance Go and No-Go display,
- Data preset,
- Measuring direction change,
- Max./min./TlR measurement,
- inch/metric conversion,
- Absolute / incremental measurement
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.FL.00001 |
|---|---|
| Product Type | Flushness Gauge |
| Model No | 2936-51 |
| Measuring Range | ±5 mm |
| Measuring Force | 8-12N |
| Resolution | 0.001 mm / 0.00005" |
| Accuracy | 0.005 mm |
| Repeatability | 0.002 mm |
