Insize 98N Manual Digital Rockwell Hardness Tester, ISH-RD200

Shop all Insize

SKU: ME.DI.HA.00019

Model: ISH-RD200

Roll over image to zoom zoom_in
  1. Insize 98N Manual Digital Rockwell Hardness Tester, ISH-RD200
  2. Insize 98N Manual Digital Rockwell Hardness Tester, ISH-RD200
  3. Insize 98N Manual Digital Rockwell Hardness Tester, ISH-RD200
  4. Insize 98N Manual Digital Rockwell Hardness Tester, ISH-RD200

  • Weight: 60 Kg
  • Product Type: Hardness Tester
  • Preliminary Test Force: 98N
  • Test Force: 588N, 980N, 1471N
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

155292.72 (Incl. of all taxes)

131604+ ₹23688.72 GST (18%)

MRP ₹202467

SAVE 35%



3 Business Days

1 Set

90248091

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • Tolerance testing
  • Set testing times (2~10) to have average value and the difference of max. and min. value
  • Convert to other Rockwell scales, HV or HB
  • Memory of 500 testing values for browsing and output Testing value can be sent to wireless printer automatically
  • Calibration function compensates the testing value for high accuracy
  • The hardness value of soft materials like plastic is not stable, the lock function can obtain the value automatically
  • Automatic power off
  • According to ISO 6508
  • Keyboard signal, can be transmitted to Excel
  • Data Output, Inspection Certificate
  • Hardness Scale (with Standard Indenters): HRA, HRB, HRC, HRD, HRF, HRG
  • Hardness Scale (with Optional Indenters): HRE, HRH, HRK

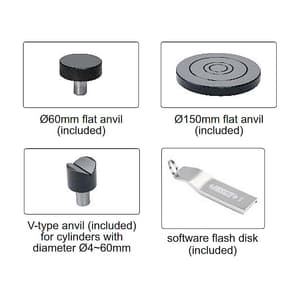

What's Included in this Package:

Main unit1 pc
Ø60mm flat anvil1 pc
Ø150mm flat anvil1 pc
V-Type anvil1 pc
Diamond indenter1 pc
Ø1.5875mm carbide ball indenter1 pc
Hardness test block HRB88~951 pc
Hardness test block HRC60~651 pc
Hardness test block HRC20~301 pc
Anti-dust cover1 pc
Software and USB cable1 pc
AC/DC adapter1 pc

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.DI.HA.00019
Product TypeHardness Tester
Model NoISH-RD200
Preliminary Test Force 98N
Test Force 588N, 980N, 1471N
Stage Elevation Manual
Load Control Manual
Resolution 0.1HR
Output Wireless & USB
Memory 500
Max. Workpiece Height 170 mm
Max. Testing Width 165 mm (From the Center of Indenter to the wall of main body)
Power Supply Built-in Rechargeable Battery
Dimension 520 x 160 x 700 mm
