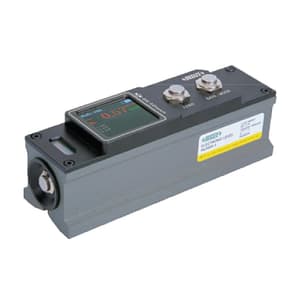

Insize Electronic Block Level, 4950-1
Roll over the image to zoom in
Key Features
- Product Type: Block Level
- Weight: 1.1 kg
- Range: ±5 mm/m (±0.286°)
- Resolution: 0.01 mm/m (0.001°)
- Accuracy: ±(1+Ax2%)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹42,174 (Incl. of all taxes)
₹35,741 + ₹6,433 GST (18%)
MRP was MRP ₹50,340
Save 29%
3 Business Days
1
90153010
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights

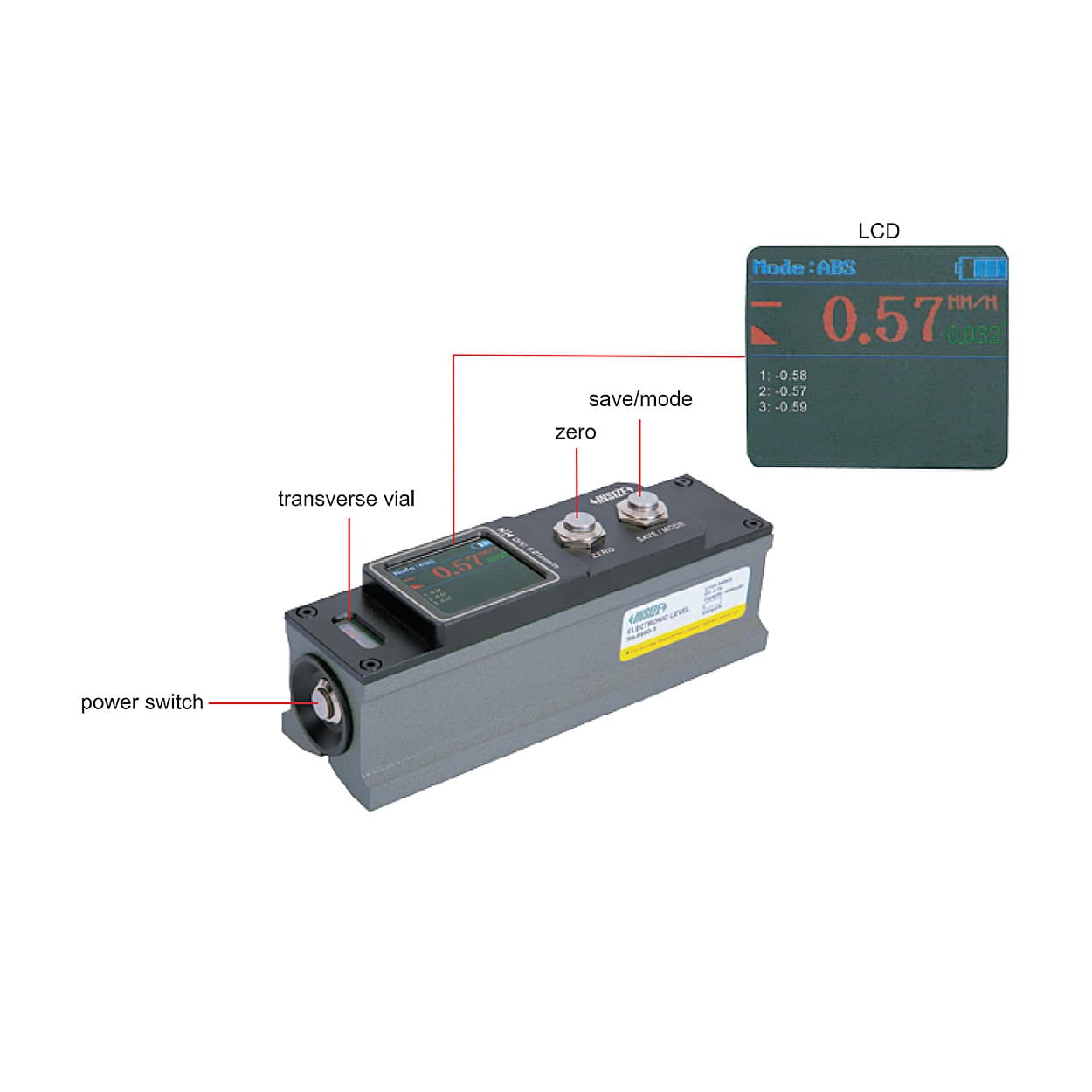

- Button function: power switch, zero, data save, ABS/REF
- 8 sets of measuring data can be saved on the LCD
- V-groove on bottom for shafts (shafts dia. 14~75mm)
- With transverse vial
- Li-ion battery power supply, for 30h continuous working
- Supplied with li-ion battery charger
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range | ±5 mm/m (±0.286°) |
|---|---|
| Resolution | 0.01 mm/m (0.001°) |
| Accuracy | ±(1+Ax2%) |
| Repeatability | 0.01 mm/m |
| Response Time | <3s |
