• Measurement Range: 170-960HLD, 7-88.5HRA, 1.2-140HRB, 1-74HRC, 18-1027HB, 3.9-112HS, 42-1220HV, 89-3300MPa
• Resolution: 1HV, 0.1HRA, 0.1HRB, 0.1HRC, 1HB, 0.1HS, 1MPa
• Hardness Scale: HLD, HRA, HRB, HRC, HB, HS, HV, MPa
• One-handed operation is possible, making test easier and faster
• Suitable for testing hardness in small space
• All directions test, do not need to set impact direction

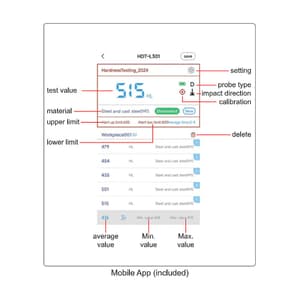

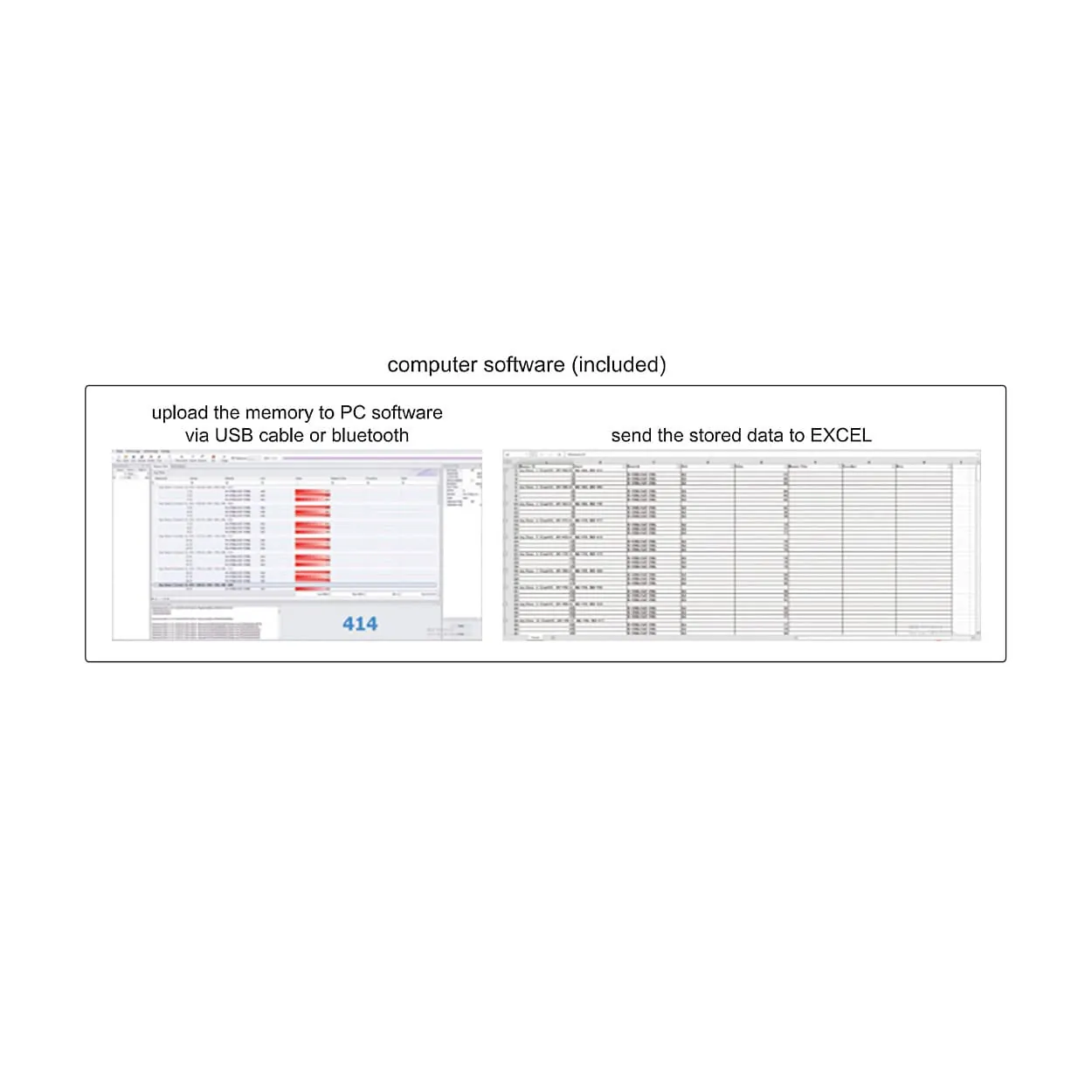

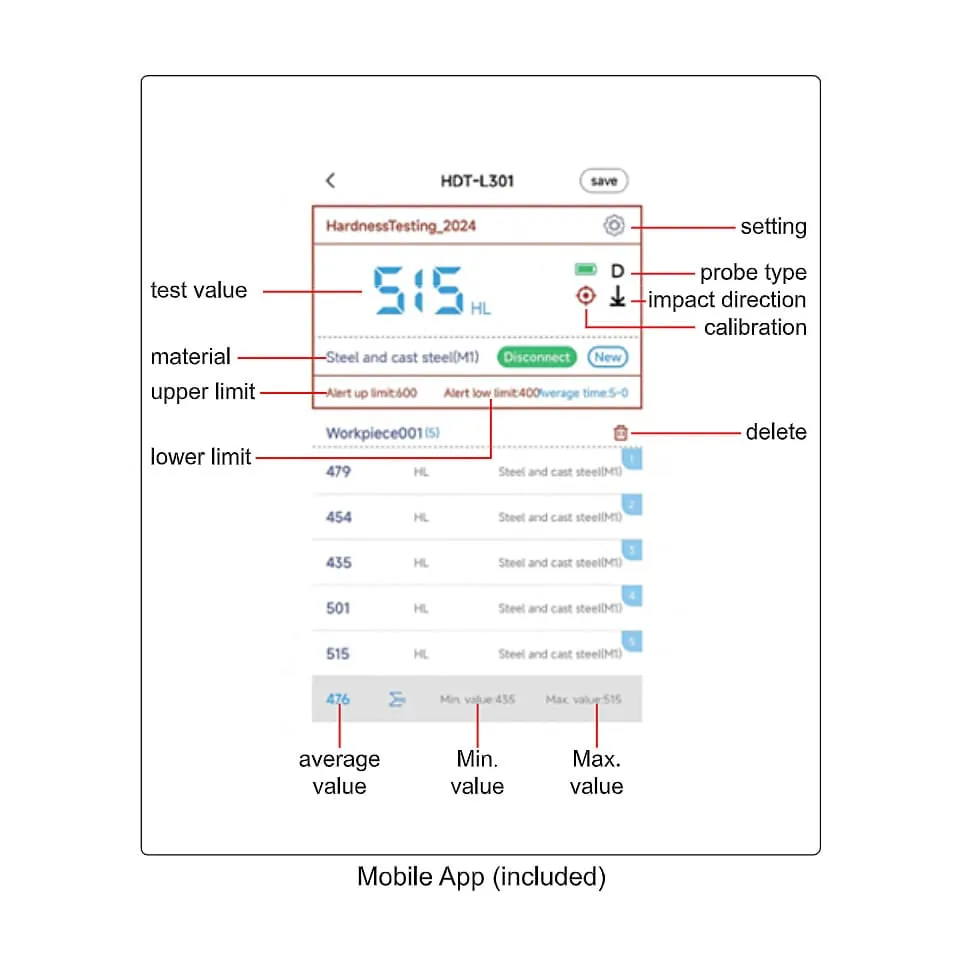

• The hardness value can be displayed on hardness tester and the cell phone App at the same time. It can also be connected by computer
• Automatic shutdown
• Support unlimited storage and sharing of test reports
• According to DIN 50156, EN ISO 16859, ASTM A956 standards

Applicable Material:

• Steel/cast steel
• Alloy tool steel
• Stainless steel
• Grey cast iron
• Nodular cast iron
• Cast aluminium
• Brass
• Bronze
• Copper
• Forged steel

Standard Delivery:

Main unit	1 pc
Hardness test block D	1 pc
Support ring	1 pc
Cleaning brush	1 pc
Loading Rod	1 pc
USB cable & Software	1 pc

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
