Insize Zoom Stereo Microscope (Base Type), ISM-ZS30
Roll over the image to zoom in
Key Features
- Product Type: Zoom Stereo Microscope
- Weight: 4.3 kg
- Objective: 1X~4.5X (zoom)
- Zoom ratio: 1:4.5
- Power supply: 110/220V,50/60Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹49,456 (Incl. of all taxes)
₹41,912 + ₹7,544 GST (18%)
MRP was MRP ₹63,503
Save 34%
3 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
Standard Delivery:
| Main unit | 1 Pc |
| WF10X eyepiece | 2 Pcs |
| 95mm glass plate | 1 Pc |
| 95mm white/black plate | 1 Pc |
| Anti-dust cover | 1 Pc |
Optional Accessory:
| Auxiliary Objective 0.5x | ISM-ZS30-OB05X |
| Auxiliary Objective 0.63X | ISM-ZS30-OB6X |
| Auxiliary Objective 0.75X | ISM-ZS30-OB07X |
| Auxiliary Objective 2X | ISM-ZS30-OB2X |
| Eyepiece 10X dividing eyepiece (graduation 0.1mm/div.) | ISM-ZS30-EPD10X |
| Eyepiece WF15X (view field 16mm) | ISM-ZS50-EP15X |
| Eyepiece WF20X (view field 12mm) | ISM-ZS50-EP20X |

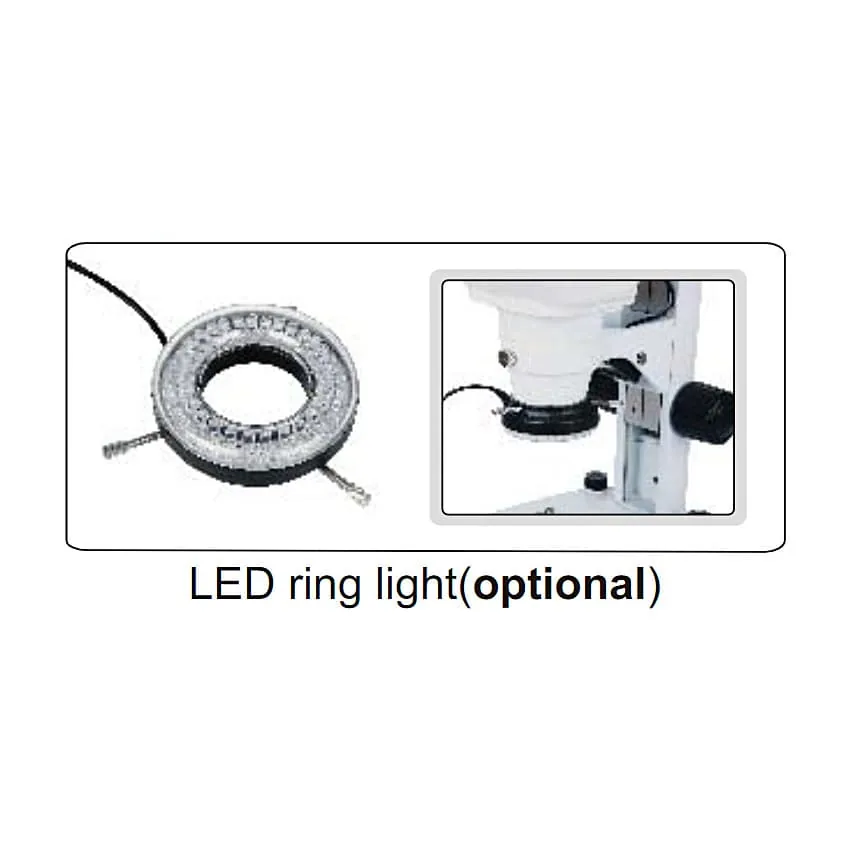

| LED ring light | ISM-ZS-RL |
| Sleeve for auxiliary objective | ISM-ZS30-ADAPTER |
| Digital camera | ISM-CM63 |
| Camera adapter 0.75X | ISM-AD-0D75 |
Note:
- 0.5X , 0.63X AND 0.75X auxiliary objective must be used with ISM-ZS30-ADAPTER
- The digital camera must be used with camera adapter0.75X.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Optical tube | binocular |
|---|---|
| Eyepiece (wide field) | 10X (view filed: 20mm) |
| Objective | 1X~4.5X (zoom) |
| Zoom ratio | 1:4.5 |
| Pupil distance | 55~75mm (adjustable) |
| Diopter adjustment | +/- 5 diopter (two eyepieces) |
| Working distance of objective | 97mm |
| Max. working height | 147mm |
| Illumination | adjustable reflected and transmitted LED light |
| Power supply | 110/220V,50/60Hz |
| Dimensions (L x W x H) | 260x190x400mm |
