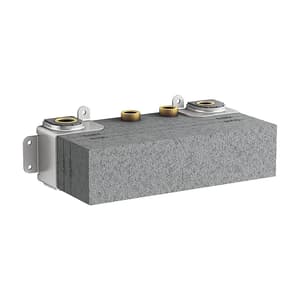

Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons.

With three independently controllable ports, this valve is ideally suited for applications where up to three outlets are required.

Features:

• High-flow Valve: Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience. Up to 50 lpm flow rate at 3.1 bar pressure with maximum flow of 39.5 lpm from one outlet.
• Standard connections: Two G (3/4 inch) 26mm female NPT inlet connections and three G (1/2 inch) female NPT outlets.
• Antiscald protection: Integrated adjustable high-temperature limit stop to control maximum water temperature. Adjustable comfort setting (preset at approximately 37°C).
• Durable: Cast dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions.
• Installation: Requires three-outlet thermostatic valve control panel trim with recessed push buttons K-26347 (sold separately).Fully-serviceable from the front of the valve.

Package Contents:

• 1 Thermostatic Valve
• 3 Plug
• 4 Screw
• 1 Installation Guide
• 1 Warranty Card

Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
