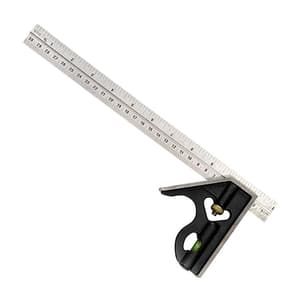

Kristeel 0 - 300 mm Combination Try & Metre Square (Hard Chrome Finish), 1516 B
Roll over the image to zoom in
Key Features
- Product Type: Combination Square Sets
- Range (mm): 0 - 300 mm
- Range (inches): 0 - 12 inch
- Width (mm): 25 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,293 (Incl. of all taxes)
₹1,943 + ₹350 GST (18%)
MRP was MRP ₹2,775
Save 30%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Kristeel Shinwa CatalogueNot available
Download Kristeel Shinwa CatalogueNot available
Product Information
Highlights
This tool combines try and meter square, depth gauge, height gauge marking gauge and rules which can be used separately if desired. A spirit level is incorporated in the die-cast stock.
The blade is machined parallel and English on both edges. Metric in mm and English in 1/16ths. The die-cast stock is finished with high-quality enamel. Available in 300 mm/12-inch length only.
Graduation:
- Top Side:1mm & 1/8"
- Back Side:1/16" & 1/32"
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 300 mm |
|---|---|
| Range (inches) | 0 - 12 inch |
| Width (mm) | 25 mm |
| Thickness (mm) | 2 mm |
| Standard | EEC-I |
| Least Count | 1 mm & 1/32 Inch |
| Blade | Hardened Steel |
| Base | CI Casting Base Painted |
| Accuracy (±mm) | Linear 0.2 mm & Angular - 5 Minutes |
