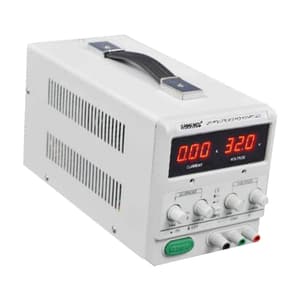

Kusam-Meco 0 - 30V / 0 - 2A DC Regulated Power Supply (Single Output), KM-PS-302
Roll over image to zoom zoom_in
- Product Type: Power Supply
- Output Voltage: 0 - 30V
- Output Current: 0 - 2A
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹4885.2 (Incl. of all taxes)
₹4140+ ₹745.2 GST (18%)
MRP ₹5175
SAVE 20%
3 Business Days
1 Set
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Signal channel output.
- Digital Meter show the Voltage & Current values.
- Voltage / Current adjust knob with rough & meticulous adjustable.
- Light & compact design.
- Deal for educational laboratories, safe for students to use.
- Constant Voltage & Constant Current operation.
- Low ripple & noise.
- Affordable & easy to operate.
- Have current limitation protection.
Application:
- Educational Laboratories
- Electronic Production Line
- Communications Industry
- Product research
- All other areas need DC Power Supplies
Technical Data:
| Constant Voltage State | Voltage Stability : < 0.01% + 3mV |
| Load stability : < 0.01% + 5mV | |
| Recovery time: < 100µS | |
| Ripple & noise: < 1.0mVrms | |
| Constant Current State | Current Stability : < 0.2% + 3mA |
| Load stability : < 0.2% + 3mA | |
| Ripple & noise : < 3mArms |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.PO.00068 |
|---|---|
| Product Type | Power Supply |
| Model No | KMPS302 |
| Type of Product | DC Power Supply |
| Output Voltage | 0 - 30V |
| Output Current | 0 - 2A |
| Input Voltage | 220V / 110V ± 10%; 50 / 60Hz (Setting Switch At The Back) |
| Operating Temperature & Humidity | 0°C - 40°C; <80%RH |
| Storage Temperature & Humidity | -10°C ~ 70°C; <70%RH |
| Temperature Coefficient | < 300PPM / °C |
| Dimension (DxWxH) | 270 X 128 X 145 mm |
