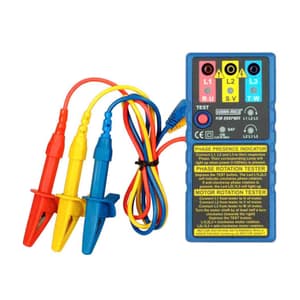

This instrument represents the quickest and easiest way for servicing, repairing and electrical maintenance of 3-phase systems & 3-phase rotating machinery. The KM 888PMR is a 3 phases Presence and Rotation Indicator combined with a 3 phases Motor Rotation Tester. It can be utilized on a 3 Phases Powered System (the supply side) or on a Three Phases Unpowered Motor (the load side) without having to worry about damage to the tester.

When utilized on a Three Phases Unpowered Motor, the instrument is then utilized as a 3 Phases Motor Rotation Tester. When utilized on a 3 Phases Powered System, this instrument is a rotary field indication instrument that displays all three phases by lighting up its corresponding lamp. It displays the rotation (clockwise or anti-clockwise) on an LED. When utilized on a 3-phase Unpowered Motor, it is also possible to determine the motor connections R, S and T without a live circuit to avoid subsequent damages e.g. Pumps to reversed motor rotation. It displays the rotation (clockwise or anti-clock-wise) on a LED.



Features:

• Indicates Phase Presence
• Indicates Phase Rotation
• Indicates Motor Rotation/wiring
• Indicates Battery Status
• Phase Rotation & Motor Rotation
• Indication works from as low as 1 Vac.
• Small and rugged enclosure
• Color-coded test Leads.
• Phase Presence Indication from as low as 100Vac.
• Very low consumption.
• Fused
• Lightweight, Robust & Compact.
• Works from 2Hz to 400Hz sine.



Technical Data:

Phase Presence Nominal Voltage for Phase Presence Indication (The Voltage required for the neon Lamps L1, L2, L3 to light up)	Voltage / Freq.	100 VAC to 600 VAC / 10-400Hz
Determination of Phase Rotation Field Direction	Voltage / Freq.	1 VAC to 600 VAC / 2-400Hz
Determination of Motor Connections (requires > ½ turn of the Shaft)	Voltage / Freq.	1 VAC to 600VAC / 2-400Hz

Safety:

• IEC/EN 61010-1 CAT III 600V

Package Content:

• Test leads (AL-34) Vinyl case
• User’s Manual
• Battery
