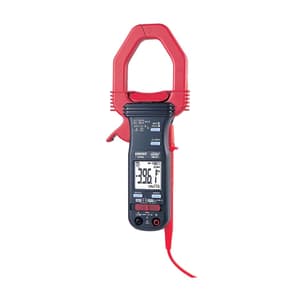

Meets IEC61010-2-032(2002), EN61010-2-032 (2002), UL61010B-2-032(2003). Overload Protection - Clamp-on jaws - DC 1000A or AC 800A rms continuous + & COM terminals - 600VDC/VAC rms

Features & Benefits:

• DC 1000A / AC 800A Clamp-on + Full Multimeter ranges
• Versatile & Handy
• Fully Auto-ranging on all functions
• Backlighted Display
• 30ms Max HOLD to capture in-rush currents
• Data Hold, Max Hold & Relative Zero Mode
• Fast Audible Continuity Test & Diode Test
• Auto power off
• Relative Humidity - Maximum 80%R.H. for Temperature upto 31°C decreasing linearly to 50% R.H. at 40°C
• Temperature Coefficient: Nominal 0.15 x (specified accuracy) / C @ (0 C ~ 18 C or 28 C ~ 40 C), or otherwise Specified
• Power Consumption - typical 11mA for DCA / ACA & 2.9mA for other Functions

Safety:

• Measurement Category: CAT III 600V AC & VDC
• Pollution degree: 2
• E.M.C.: Meets EN61326(1997, 1998/A1), EN61000-4-2 (1995), & EN61000-4-3 (1996)
• In an RF Field of 3V/m: The capacitance function is not specified
• Other function ranges: Total accuracy = Specified accuracy + 45 digits
• Performance above 3V/m is not specified
• Pollution Degree: 2
• Transient Protection: 6.5kV (1.2/50ms surge)
• Battery cover with Probe holders
• Rugged Fire retarded casing
• LVD EN61010-2-032 CAT III 600V

Package Content:

• Test lead pair
• Batteries installed
• User’s manual & Carrying case
