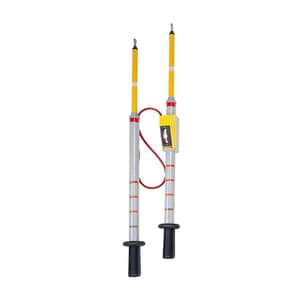

This NEW “PC” range of High Voltage Multifunction Phasing Sticks are all-in-one, a Phase Comparator with colour code scale indication, a Voltage Detector with Neon Indication & a Scaled analog Voltmeter. These Dual Poles instruments incorporate modern, high-quality glass fiber front end, and composite polyurethane main body molding to give tough and very lightweight construction and superior Safety features. They have analog Colour Coded Dual Scales and Neon indications.

They are VDE0681part 5 compliant and IEC1243 - 2. They are practical and efficient. Because of their multifunction capabilities, you do not need to buy separate instruments, you can therefore stay within your budget without compromise. They are supplied complete with an instruction manual. They are housed in a superb quality modern Plastic Case with shock-absorbing foam. They are suitable for indoor and outdoor use (in dry weather). They do not require dismantling or re-assembling and do not have any user’s assembled parts, so eliminating the risks of assembly mistakes and accidents during High Voltage Work. In a breakdown situation, they are lighter than any other sticks available in the market today. The indicator has been screened for high immunity to interference fields.

Fiberglass is of hot stick quality and tested to IEC specs(100kV / 300mm for 1min). All front end (resistors) are encapsulated. These analog Multifunction phasing Sticks are ideally suited for testing grounded or ungrounded systems. Important applications include checking voltage fuses, testing for correct phase connections, and for the absence of high voltage on de-energized lines or apparatus. The dual scale read direct(no multiplier)in kV AC or in % of full scale and color-coded (Green = in phase; Red = out of phase). A Bright neon is included on the scale for easy visibility indoors and it has dual purpose. They are equipped with two fixed-length poles connected by a strong flexible, insulated cable. Handguards are standard on all models. They are easy to handle, lightweight, well insulated and designed to ensure maximum operator safety.

Features:

• Dual Colour Code Scale (%, Vac).
• Neon indicator lit when >1200 Vac.
• Compare between Phases
• Measure and test Phase to Earth.
• High-quality fiberglass wound Rod.
• Self-powered operation - No Battery
• DC version available
• Measure Phase to Phase
• High immunity to interference fields
• Suitable for indoor and outdoor use.
• Current is limited to ±1 mill - ampere.
• Voltage color code - O-Y-G-B-R.
• Lightweight Robust & Compact.
• Designed to Exceed VDE 0681 part 5
• Meets IEC 61481: 2001
• Carry Case included
