Mastech 6000 Count / 1000A AC TRMS Three-Phase Power Clamp Meter, MS2205

The MASTECH MS2205 is a robust three-phase power clamp meter designed for professionals who need to measure and analyze electrical parameters in complex systems. It features a wide jaw opening, data logging, and RS232 interface for detailed data analysis.

Features:

• Multifunctional Measurement: AC voltage, AC current, frequency, active power, apparent power, reactive power, power factor, and harmonics.
• Auto and Manual Ranging: Provides flexibility in measurement.
• True RMS: Ensures accurate measurements for all waveforms.
• Data Hold: Easily freeze measurements for analysis.
• Backlight: Ensures readability in dim environments.
• RS232 Interface: Allows data transfer to PC for further analysis.
• Safety Certified: CAT III 600V rating for secure operation.
• Versatile Measurement: Offers a comprehensive range of electrical measurements in one device.
• Data Logging: Store up to 100 groups of data for later review.
• Durable Design: Robust construction with a large jaw opening for various applications.
• User-Friendly: Easy to operate with auto and manual ranging, and a clear display with backlight.
• Additional Features: Includes Frequency,  auto power off, low battery display and data logging (100 Groups), Display Backlight, Peak Measurement

Applications:

• Electrical troubleshooting
• HVAC testing

Why Choose MASTECH MS2205

The MASTECH MS2205 is an essential tool for professionals working with complex electrical systems. Its ability to measure a wide range of electrical parameters, combined with features like data logging and RS232 interface, makes it an invaluable asset for accurate and efficient electrical analysis.

Technical Data:

Specifications	Range	Resolution	Accuracy
AC Voltage	80V / 180V / 400V / 600V	0.1V / 0.1V / 1V / 1V	± (1.0%+5)
AC Current	20A / 40A / 100A / 200A / 450A / 1000A	0.01A / 0.01A / 0.1A / 0.1A / 1A / 1A	± (2.0%+5)
Active Power	30kW / 60kW / 120kW	0.01kW / 0.01kW / 0.1kW	± (3.0%+5)
	150kW / 300kW / 600kW	0.1kW	± (3.0%+5)
Apparent Power	3kVA / 12kVA / 30kVA	0.001kVA / 0.01kVA / 0.01kVA	± (3.0%+5)
	120kVA / 150KVA / 600kVA	0.1kVA	± (3.0%+5)
Reactive Power	3kVAr / 12kVAr / 30kVAr	0.001kVAr / 0.01kVAr / 0.01kVAr	± (3.0%+5)
	120kVAr / 150KVAr / 600kVAr	0.1kVAr	± (3.0%+5)
Power Factor	0.3 ~ 1	0.001	± (2.0%+2)
Frequency	30Hz ~ 1000Hz	0.1Hz	± (0.5%+1)
Harmonic Measurement 45Hz ~ 65Hz (Fundamental)	Harmonic Number : 1	-	± (3.0%+10)
	Harmonic Number : 2-6	-	± (3.5%+10)
	Harmonic Number : 7-8	-	± (4.5%+10)
	Harmonic Number : 9-10	-	± (5.0%+10)
	Harmonic Number : 11-15	-	± (7.0%+10)
	Harmonic Number : 16-20	-	± (10%+10)

Functions:

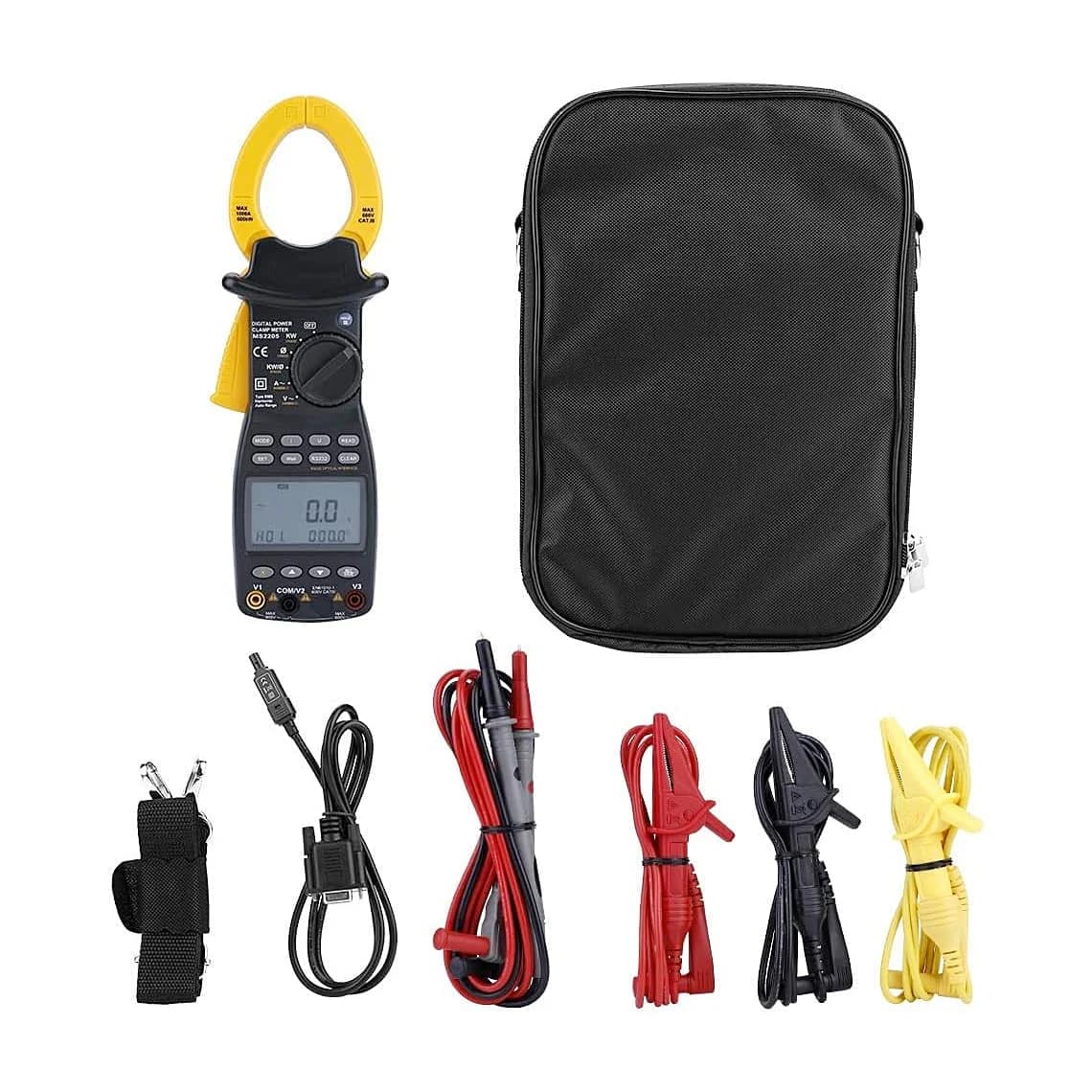

Package Content:

• Three-Phase Power Clamp Meter
• Test Leads
• Alligator clip
• RS232C interface cable
• PC data record graph software
• Carry Case
• 4×1.5V AAA Batteries
• User's manual
