Voltage (DC)

• Range: 600mV - 1000 V
• Resolution: 0.1 mV - 100 mV
• Accuracy: ± (0.5% +3 ) / ± (0.8% + 5)

Voltage (AC)

• Range: 6V - 750V
• Resolution: 1mV - 100mV
• Accuracy: ± (1.0% +8) / ± (1.2% +8)

Current (AC)

• Range: 600A - 1000A
• Resolution: 10 mA - 1 A
• Accuracy: ± (2.5% +8) / ± (2.5% + 5)

Current (DC)

• Range: 600A - 1000A
• Resolution: 10mA - 1A
• Accuracy: ± (2.5% +8) / ± (2.5% + 5)

Frequency

• Range: 100 Hz - 10 MHz
• Resolution: 0.01 Hz - 1 KHz
• Accuracy: ± (0.1% + 4)

Resistance

• Range: 600 - 60M
• Resolution: 0.1 - 10K
• Accuracy: ± (0.8% +10) / ± (0.8% +8) / ± (1.5% +15)

Capacitance

• Range: 60 nF - 1000 µF
• Resolution: 10 pF - 1 µF
• Accuracy: ± (3.0% +10) / ± (5.0% +30)

Features:

• Resistance
• Diode Test
• Temperature
• Frequency
• Duty Cycle
• Capacitance
• APO
• hFE
• Data Hold
• Backlight
• Clamp Light

What's Included In This Package:

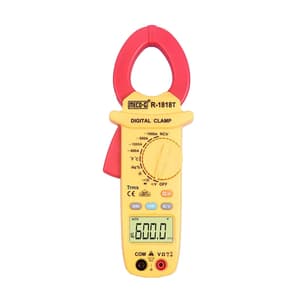

• 1x R-1818T Meco-G Digital Clamp Meteres
• 1x Test Leads
• 1x Instruction Manual
• 1x Carrying Case
• 1x K-Type Thermocouple Leads



Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
