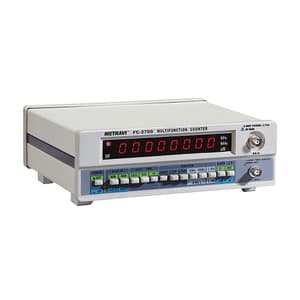

This instrument is a 10Hz to 2700MHz multiple-function & equal accuracy counter. It features a eight digit, bright seven segment LED display, four function performance, LOW power consumption circuit design, small size Light weight, high stabilized crystal oven oscillator for measurement of acuracy and full input signal conditioning.

The four functions are frequency, period, totalizer and Self check This is accomplished by a single chip microcontroller. The input signal can be conditioned by attenuation.

Features:

• Bench Type
• 8 Digit RED LED Display
• Dual Channel Input
• Sensitivity: 20mV rms up to 8MHz / 30mV rms up to 10MHz / 20mV rms up to 80Hz/ 30mV rms up to 2.7GHz



CH - A Range	10Hz to 10MHz direct counter, 10MHz to 100MHz perscaled by proportion
CH- A Resolution	Direct counter : 1, 10, 100Hz switch selectable, Per scaled : 10, 100, 1000Hz switch selectable
CH- A Gate time	0.01s, 0.1s is switch selectable
CH - A Accuracy	± 1 count ± time base error x measured
CH- A Input Sensitivity	10 Mhz range : 10Hz ~ 8MHz 20m Vrms : 8MHz ~ 10MHz 30m Vrms, 100 Mhz Range : 10Hz ~ 8MHz 20m Vrms : 8MHz ~ 10MHz 30m Vrms
CH - A Impedance	Approx, 1M Ohmless then 35pF
CH- A Maximum voltage without damage	250v (DC + Acrms)
CH - B Range	100MHz – 2.7GHz
CH - B Resolution	10-7 s, 10-8 s, 10-9 s, switch selectable
CH - B Gate Time	0.01s, 0.1s, 1s
CH- B Accuracy	± 1 count ± time base error x measured frequency
CH - B Input Sensitivity	20m Vrms
CH - B Impedance	Approx. 5 Ohmless
CH - B Maximum voltage without damage	3V
