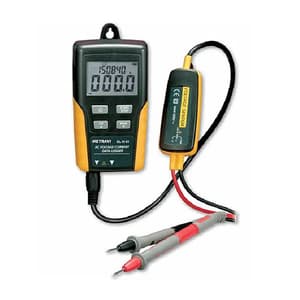

Data Logger for Voltage and Current with digital display and 100096 data points. This meter is designed and produced according to IEC61010 safety standard, and leave factory with best status after inspection.

The Datalogger USB software is a program for collecting data from the DATA LOGGER when it is connected to a PC or notebook computer. The data may be displayed graphically, as Excel or similar programs. The major functions are all listed in the main window.

Features:

• Single Channel Input
• Measures and records the virtual value of Voltage and Current of AC Signal
• AC Voltage Range: 10V ~ 600V (40Hz ~ 1kHz)
• AC Current Range: 10A ~ 200A (50 / 60Hz)
• Wave Record Function: Records the wave that exceeds the set Voltage / Current. (764 data)
• Real-Time Display, Calibrated with software
• Peak Hold FunctionUSB PC Interface with software.
• RMS: Measure and record virtual value of voltage and leaked current of AC cycle signal. (100,096 data)
• Accuracy: Voltage 10V-600V (40Hz~1kHz) ± 2% ±1V Current 10A-200A (50/60Hz) ± 2% ± 1A
• MAX/MIN: maximum and minimum reading hold Data output: USB output

Minimum Hardware Required:

• Windows 2000 or Windows XP or Vista
• PC or NoteBook with Pentium 90MHz or higher 32 MB RAM
• Recommended display resolution 1024X768 with High Color(16 bit)
• At least 7 MB byte hard disk space available to install Datalogger USB software

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
