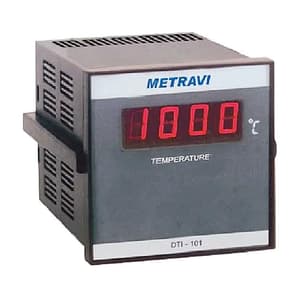

Metravi 96 x 48 mm Single Channel Temperature Indicator, DTI-101 48
Roll over image to zoom zoom_in
- Product Type: Temperature Controllers & Indicators
- Sensor Input: J. K. R.S. T/C. PT-100 RTD, mV, V & 4-20 mA I/P
- Supply: 230V AC ± 10% 50 Hz
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹1581.20 (Incl. of all taxes)
₹1340+ ₹241.2 GST (18%)
MRP ₹1971
SAVE 32%
5 Business Days
1 Pcs
90251920
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Digital Temperature Indicator 96 x 48 mm sq, for K, J, R, S, PT-100 (Any One)
Option:
- 110V AC Mains/24V DC supply
- 0 to 100% RH indicator with RH sensor
- Retransmitted output is possible
- °F Unit on Demand
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | EL.IN.TE.00005 |
|---|---|
| Product Type | Temperature Controllers & Indicators |
| Model No | DTI101 48 |
| Display | 3½ Digit 7 Segment Red colour LED 0.5" ht |
| Cold Junction Compensation | Automatic for T/C |
| Sensor Input | J. K. R.S. T/C. PT-100 RTD, mV, V & 4-20 mA I/P |
| Accuracy | J, K, 1%, R, S 0.5%, PT-100 RTD 0.2%, mV, V, mA 0.1% |
| Sensor Open Indication | By '1' at MSD |
| Operating Temperature | 0-50°C (RH < 80%) |
| No. of Input Sensor | 6-12 Point for DTI - 101 M select by Rotary Switch for all other modules one |
| Supply | 230V AC ± 10% 50 Hz |
| Dimension (H x W x D) | 96 x 96 x 120 mm 72 x 72 x 110 mm 48 x 96 x 120 mm |
| Panel Cutout (H x W) | 92 x 92 mm 68 x 68 mm 46 x 92 mm |
