The Metravi GD-09-6M Pumping Multi Gas Detector is intelligently designed with advanced, integrated circuit technology, standard intelligent technical level design and proprietary digital-analogue hybrid communication technology.

It detects 6 gases: Oxygen (O2), Carbon Di Oxide (CO2), Carbon Monoxide (CO), Hydrogen Sulfide (H2S), Nitrogen Di Oxide (NO2) and Explosive Gases (EX).

It integrates electro-chemistry, catalysis and various detection principles such as semiconductors, thermal conductivity and optics to provide users with a reliable, accurate and safe gas detection solution.

The GD-09-6M features PM2.5/PM10 detection module, 4G module & GPS.

The detector adopts a built-in pump-suction sampling method and the sensitive element adopts a high-quality gas sensor. It has good sensitivity and excellent repeatability, is easy lo use and helps to maintain the safety needs of industrial sites.

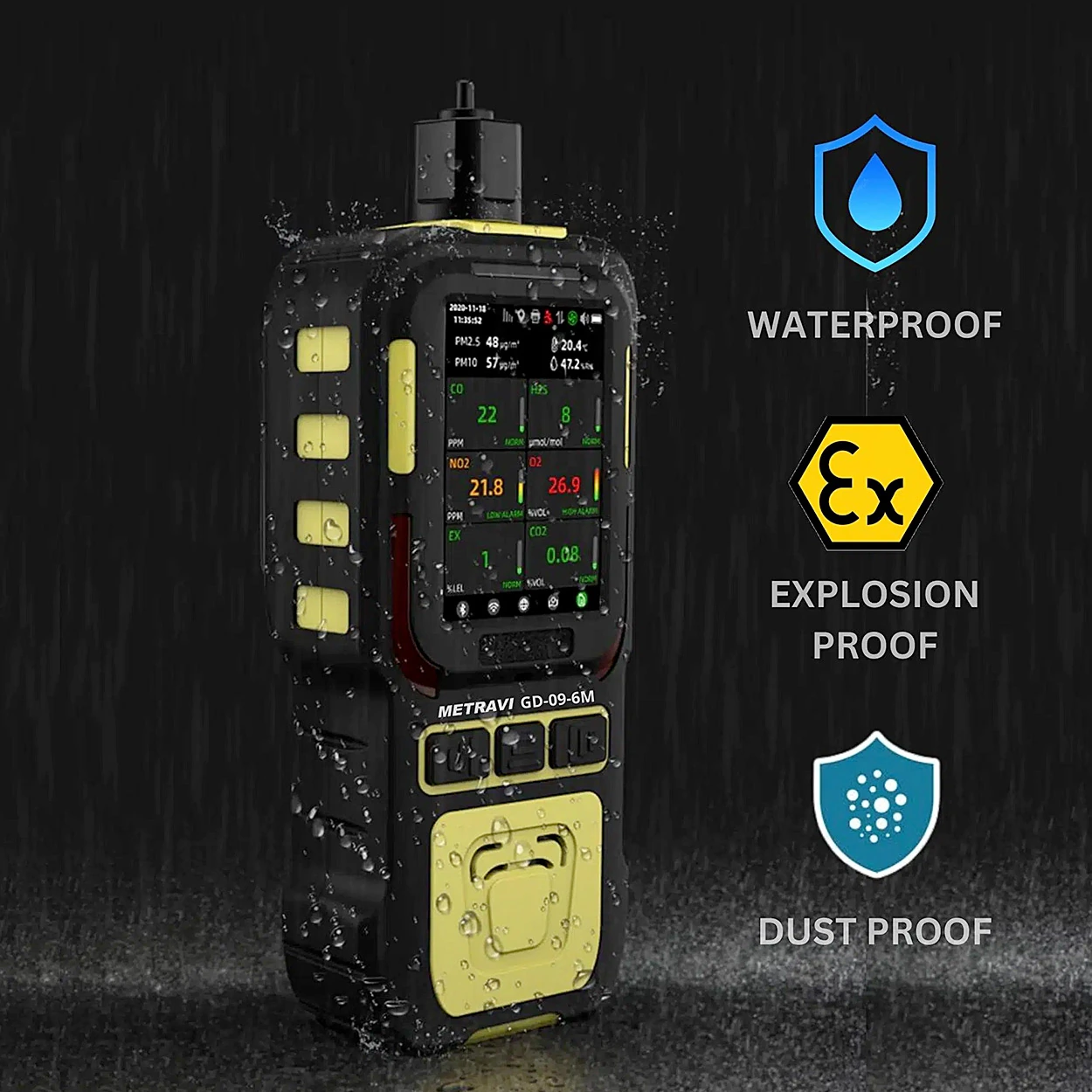

For high-reliability, the shell is made of high-strength engineering plastics and composite, non-slip rubber, which has high strength, solid hand feeling, and is waterproof. dust-proof and explosion-proof.

It is widely used in petroleum, chemical, environmental protection, smelting, refineries, manufacturing biochemical medicines, agriculture, scientific research, universities and other industries and fields.

*Note : The Metravi GD-09-6M can be customised for selected 6 gases from a given list (ref. catalogue) – the cost for the same will depend on the combination and features selected. The standard pre-designed device comes with CO, O2, CO2, NO2, H2S and EX detection.

Features:

• Detects O2 (Oxygen), CO (Carbon Monoxide), CO2 (Carbon di Oxide), H2S (Hydrogen Sulfide), NO2 (Nitrogen di Oxide) and EX (explosive/combustible) gases.
• Latest GUI design, comprehensive interface and display, user-friendly operation.
• The integrated built-in pump can detect up to six types of gas at the same time.

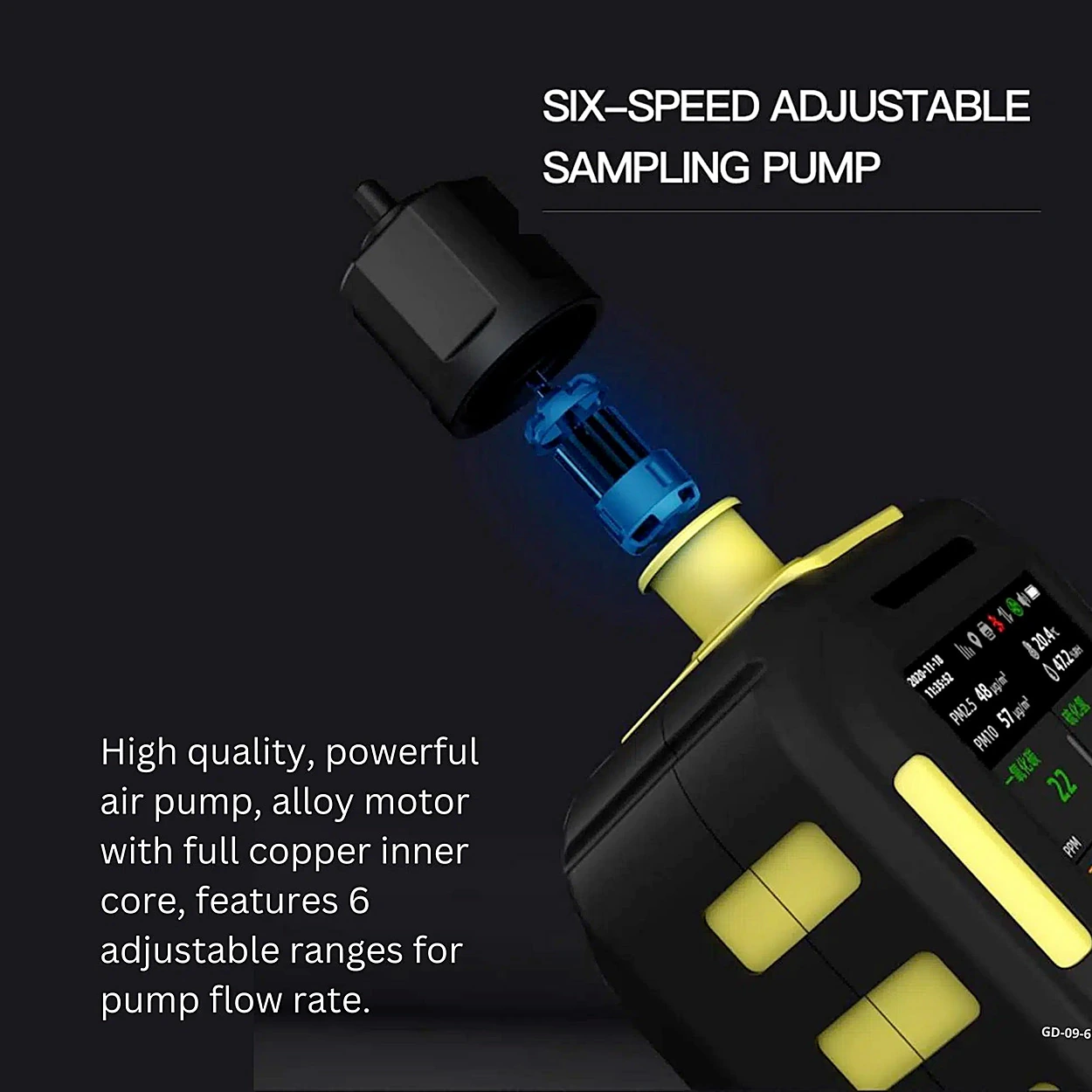

• Imported miniature, vacuum suction pump enables stable flow, long life and low noise.

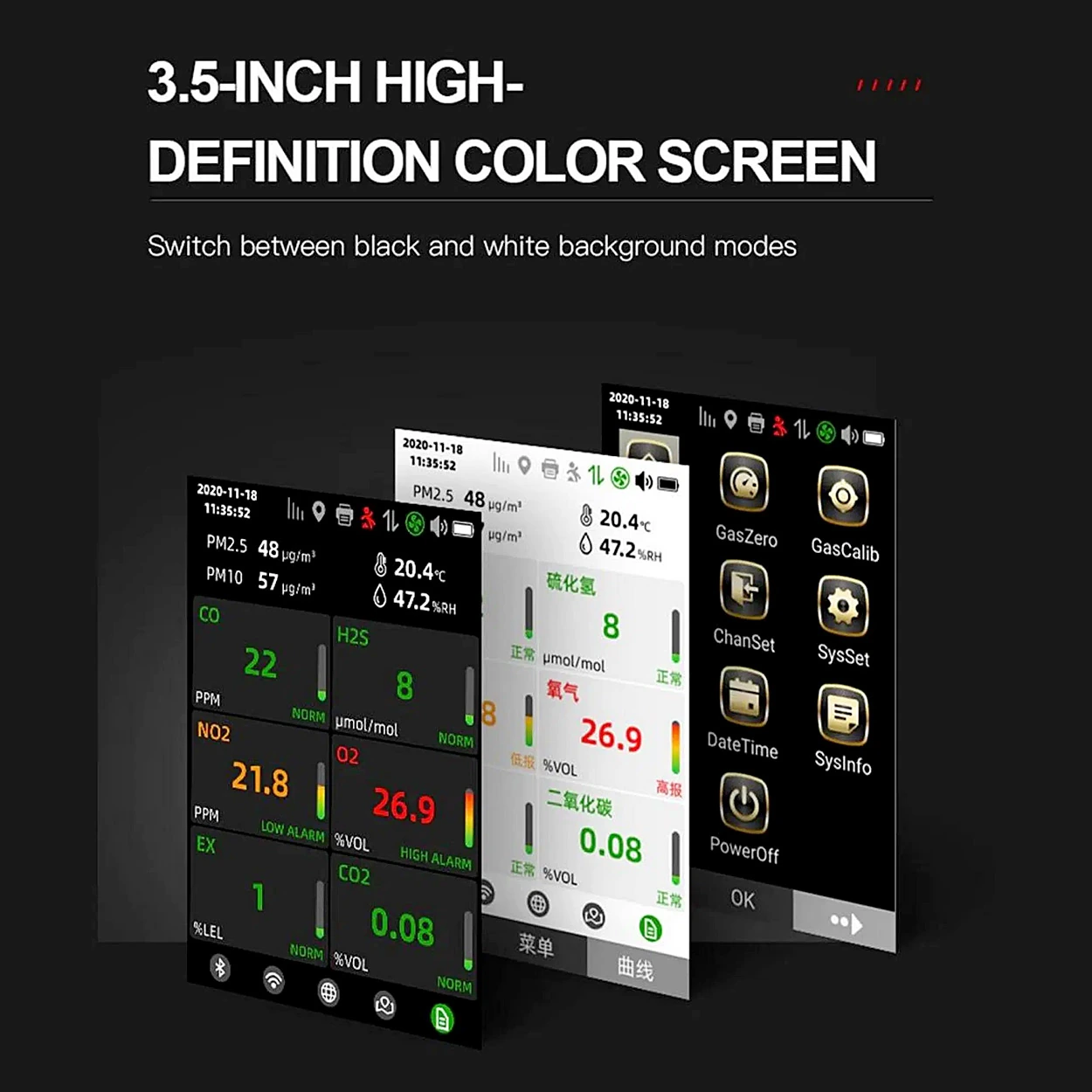

• 3.5-inch high-definition colour screen with a wide viewing angle of 120°.
• Response Time: T90<30S
• IP65 protection: the device is waterproof and dust proof.
• Explosion Proof: Exiib IIC T4Gb certification.
• Adjustable flow rate (6 levels).
• Calibration: Uses mixed gas calibration method. Supports multi-point calibration method (5 points).
• Alarms: Four Alarm modes – sound, light, vibration and display. Supports TWA and STE alarm functions.
• Fail alarm; the sampling pump will automatically sound alarm and display prompt if it fails.
• Gas units switching function.
• Temperature & Humidity: Real-time detection.

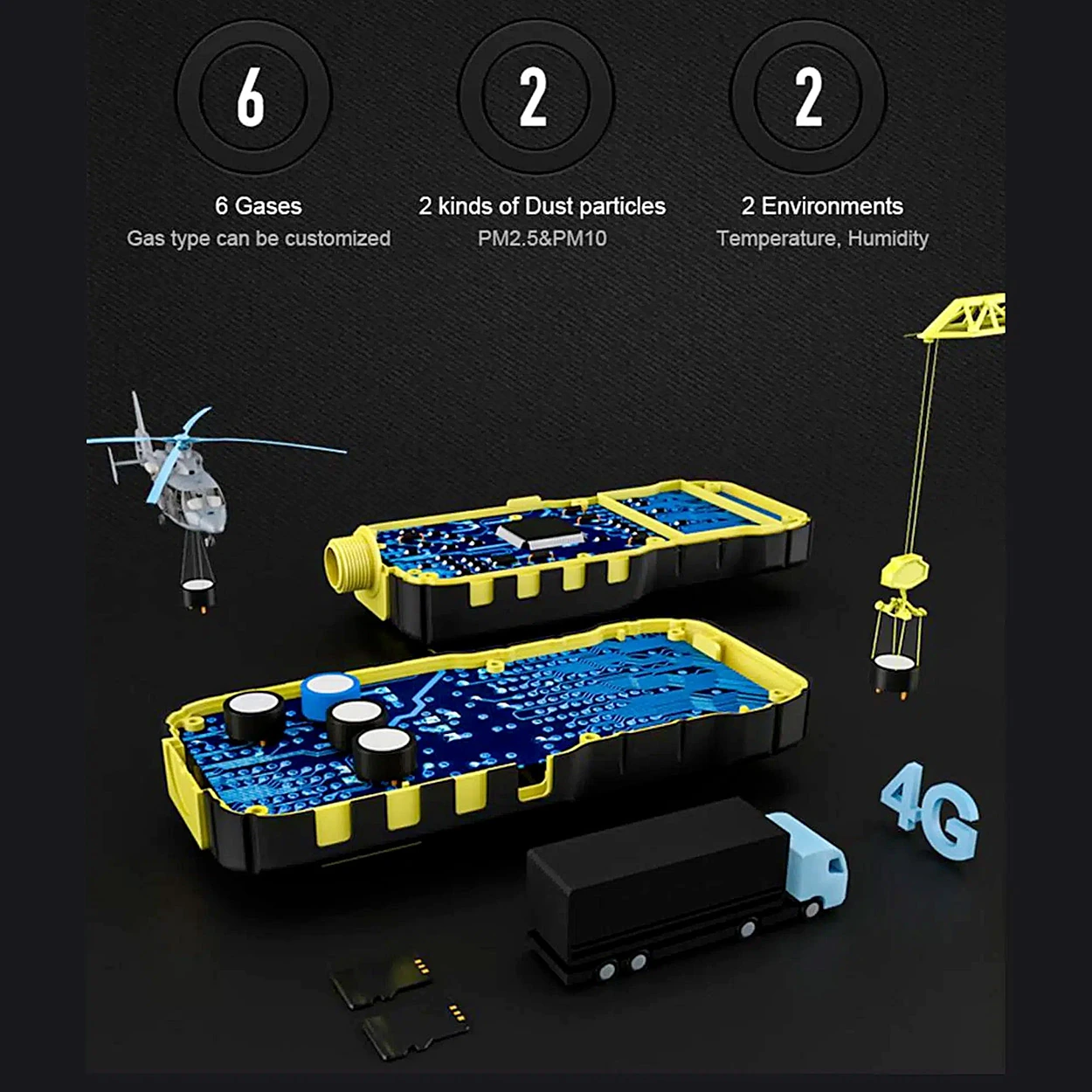

• PM 2.5/PM 10 detection module.

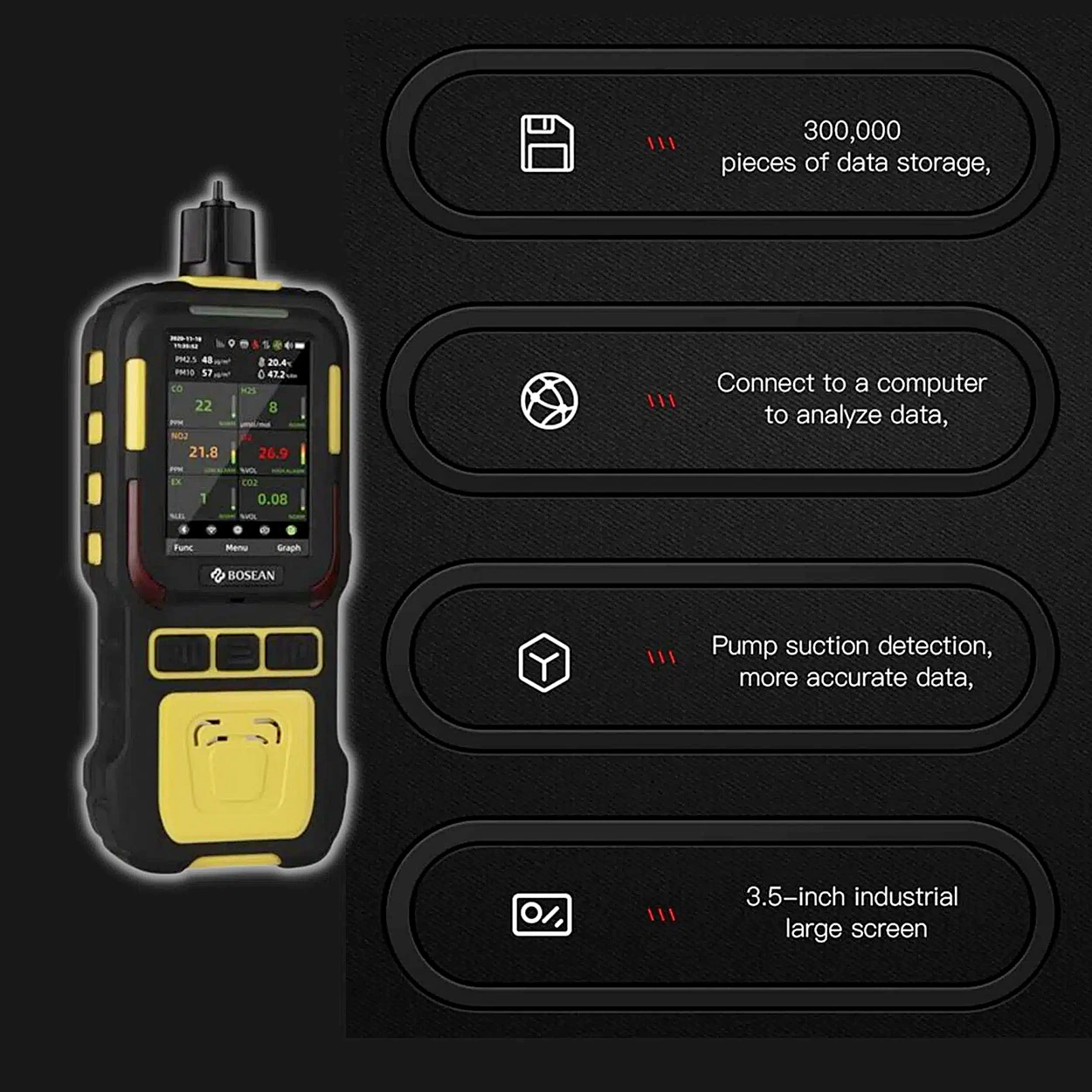

• Data Storage: Alarm storage, Timing storage, Manual storage. Supports external TF memory card storage mode and can read the stored data on a PC using the USB cable. External storage in csv file format data is available for viewing at a glance.
• Bluetooth: facilitates data view and setting of parameters through the mobile App
• Printing of Data: Supports external Bluetooth printer and real-time printing of test data (optional).
• GPS: GPS positioning function and 4G data transmission (optional).
• Cloud Support: Supports cloud platform data viewing* function (optional).

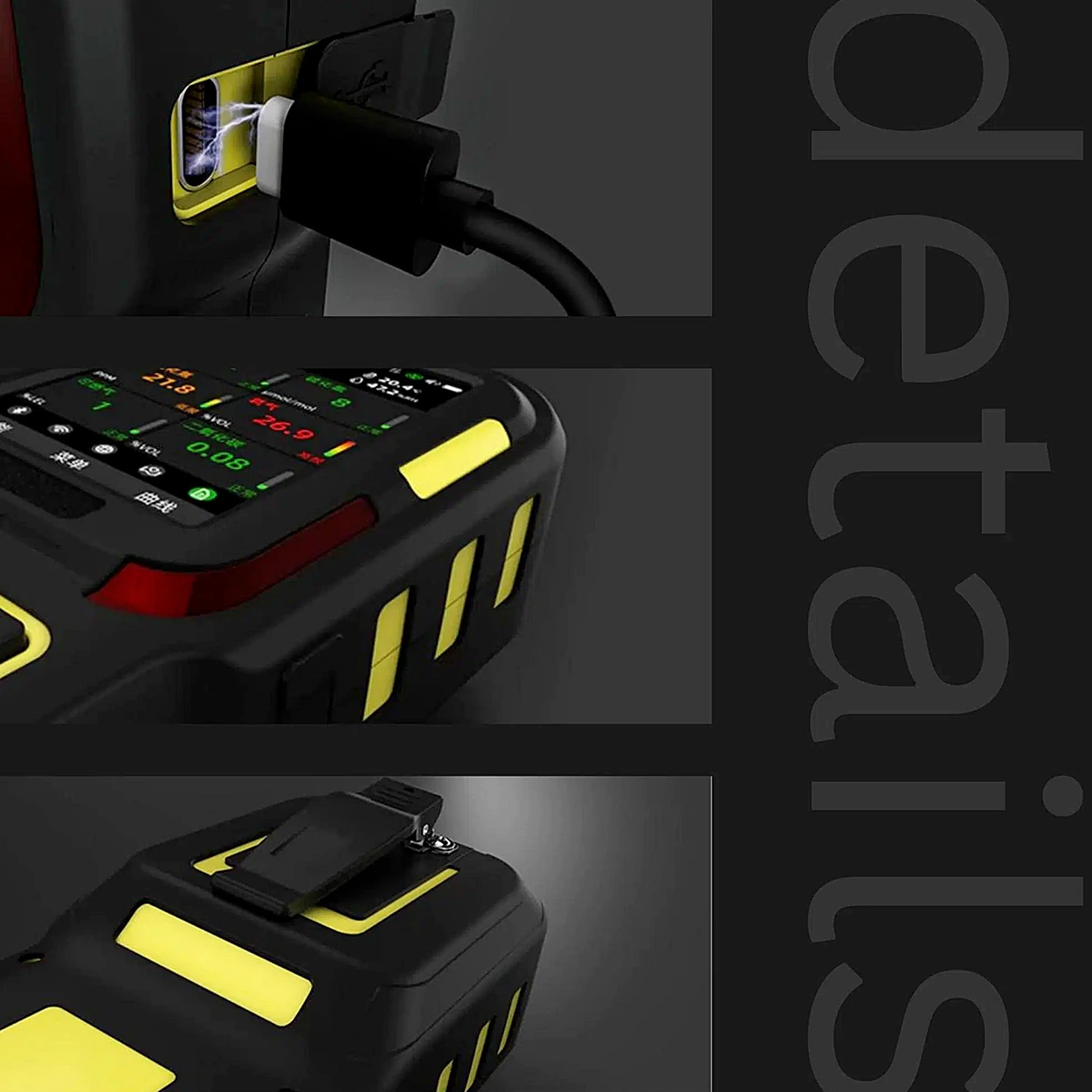

• Charging: USB type-C interface for charging.
• Connectivity: USB connectivity to PC or Smartphone (using App).
• Battery: Large capacity (4000mAh) rechargeable Li-Ion battery.

Measurement Specifications:

Gas	Measuring Range	Low Alarm	High Alarm	Resolution
EX	(0~100)%LEL	20%LEL	50%LEL	1%LEL
H2S	(0~100) ppm	10ppm	35ppm	1ppm
CO	(0~1000) ppm	50ppm	150ppm	1ppm
O2	(0~30)%vol	19.5%vol	23.5%vol	0.1%vol
CO2	(0~5)%vol	1.00%vol	2.00%vol	0.01%vol
NO2	(0~20) ppm	5.0ppm	10.0ppm	0.1ppm
