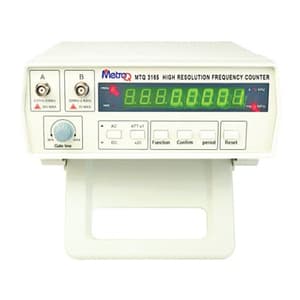

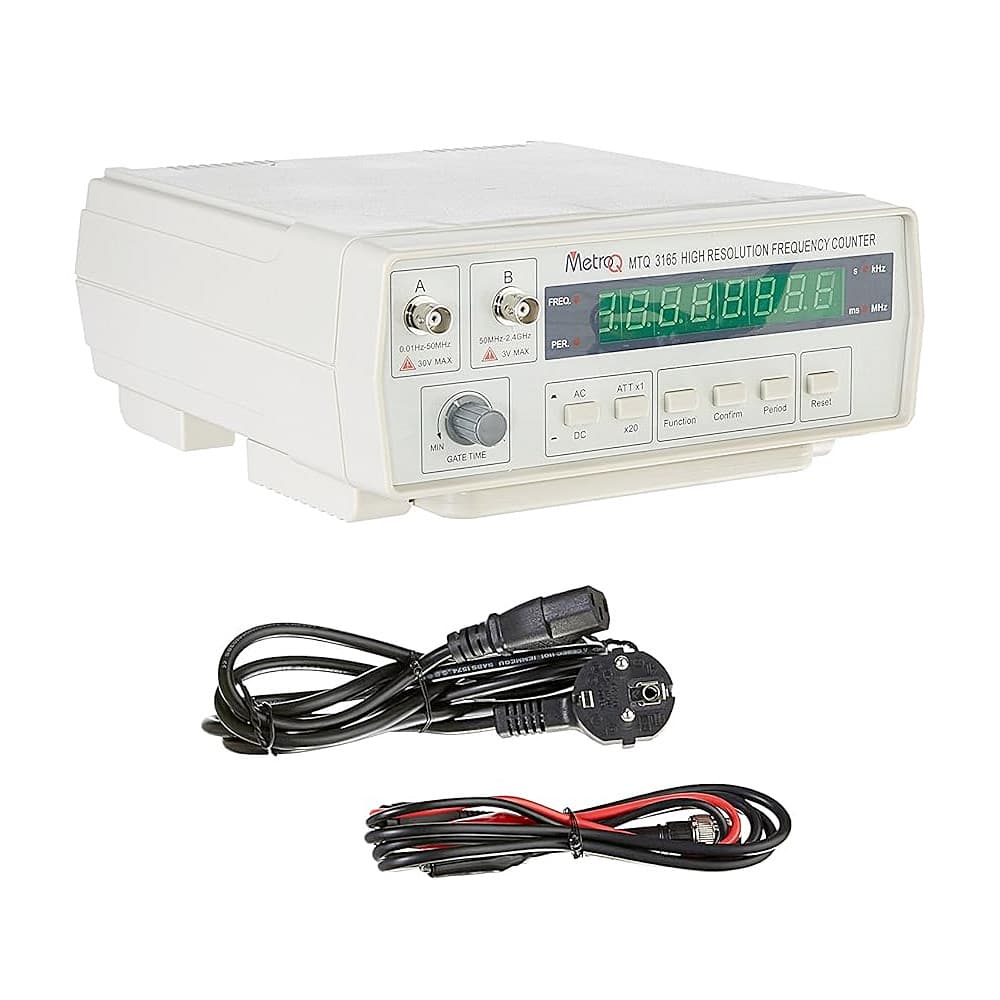

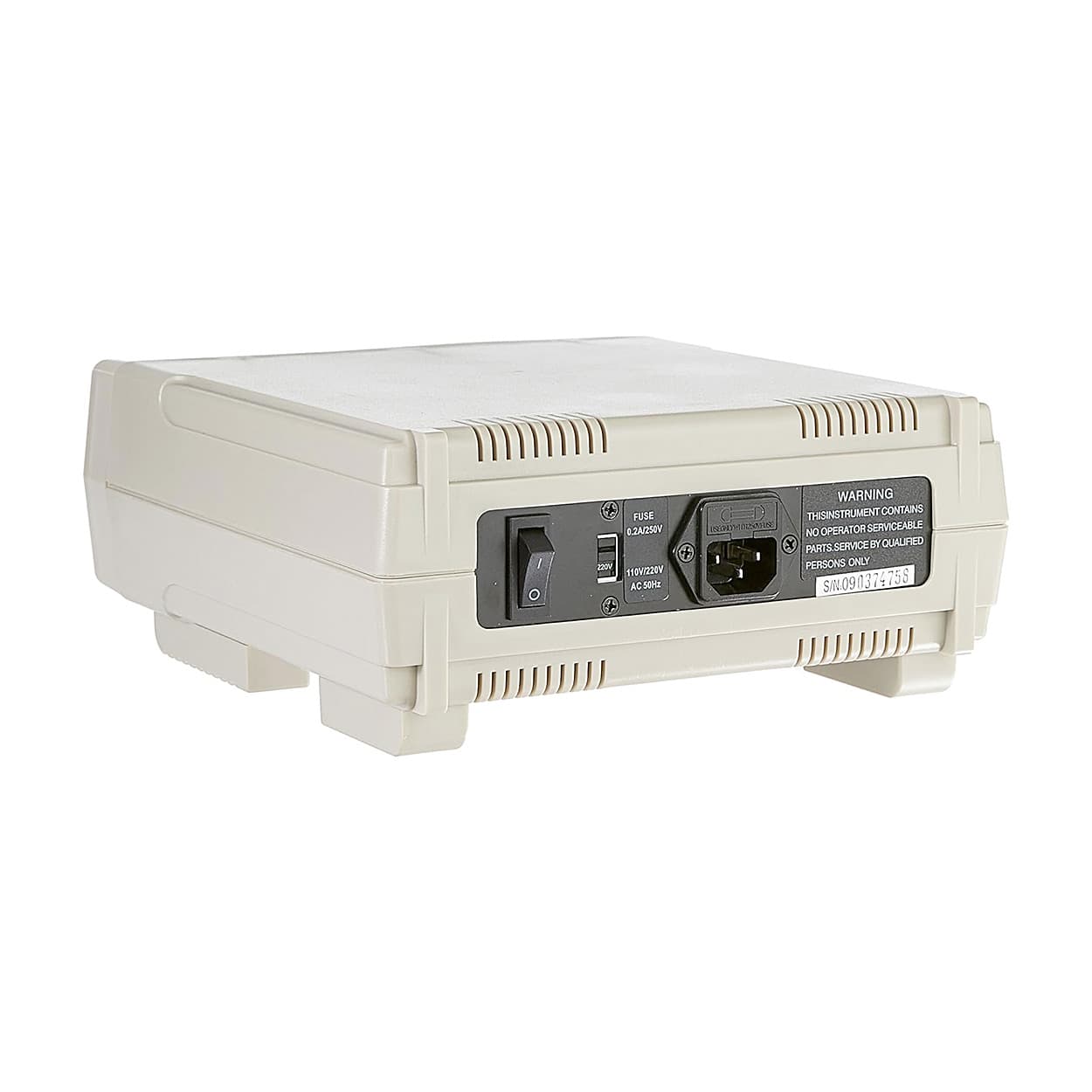

MetroQ 0.01Hz - 2.4GHz Digital High Resolution Frequency Counter With Dual Channel Signal Input, MTQ 3165
Roll over image to zoom zoom_in
- Weight: 1.6 Kg
- Product Type: Function Generators
- Attenuation: 20dB
- Gate Adjust Range: 100ms~10s Continuious Adjustable
- Input Impedance: CH A: 1M ohm; CH B: 50 ohm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹5003.2 (Incl. of all taxes)
₹4240+ ₹763.2 GST (18%)
MRP ₹5300
SAVE 20%
Out of Stock
5 Business Days
1 Set
903031
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
The Instrument can Measure Frequency upto 2.4 GHz. It has a 8 Digit display with dual Channel Signal Input. It is an appropriate choice for various Telecom and Electronic Applications.
Features:
| Frequency measurement | CH A: Measuring range:0.01Hz~50MHz, Basic accuracy: ±(2*10-5+3) |
| CH B: Measuring range B:50MHz~2.4GHz, Basic accuracy: ±(2*10-5+3) | |
| Cyclic measurement | CH A: Measuring range:0.02us~10s, Sensitivity 80mVrms>1S |
| CH B: Measuring range:0.5ns~0.02us, Sensitivity 500mVrms<1S |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.FU.00022 |
|---|---|
| Product Type | Function Generators |
| Model No | MTQ3165 |
| Cyclic Measurement Range | 0.5ns~10s |
| Attenuation | 20dB |
| Gate Adjust Range | 100ms~10s Continuious Adjustable |
| Input Impedance | CH A: 1M ohm; CH B: 50 ohm |
| Power | 220V/110V±10%, 50Hz/60Hz±5% |
| Dimensions | 270 x 215 x 100mm |
