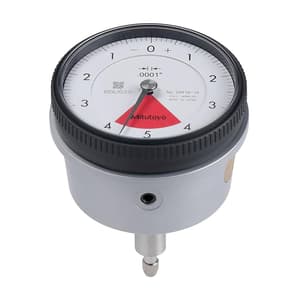

Mitutoyo 0 - 0.008 inch Back Plunger Type Dial Indicator, 2991A-10
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator
- Type of Product: Dial Indicator
- Range (Inches): 0 - 0.008 inch
- Graduation (inch): 0.0001 inch
- Dial Reading: 4-0-4
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹31,923 (Incl. of all taxes)
₹27,053 + ₹4,870 GST (18%)
MRP was MRP ₹36,070
Save 25%
1 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Balanced Scale, One Revolution, Shockproof, Back Plunger & Jeweled Bearing
- Back Plunger type dial indicators are suitable for mounting onto leveling machine tool tables or inspection jigs, and for use in small spaces where the graduations of standard dial indicators are difficult to see.
- Mitutoyo's proprietary shock-proofing mechanism provides excellent durability and shock resistance.
- Designed for secure installation on leveling machine tool tables or inspection fixtures.
- Enclosed frame design without through-holes enhances resistance to dust and contaminants.
- Reinforced bearing plate structure minimizes tracing deviations and ensures measurement accuracy.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Dial Indicator |
|---|---|
| Range (Inches) | 0 - 0.008 inch |
| Rev (inch) | 0.01 inch |
| Graduation (inch) | 0.0001 inch |
| Accuracy (inch) | ±0.0002 inch (First 1 Rev) |
| Accuracy Retrace (inch) | 0.0001 inch |
| Repeatability (inch) | ±0.00005 inch |
| Dial Reading | 4-0-4 |
| Measuring Force (N) | 1.5 or less |
