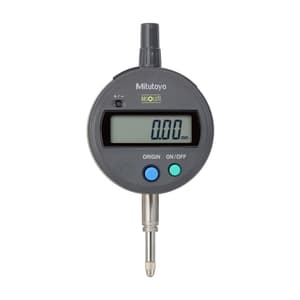

The Mitutoyo ABSOLUTE Digimatic ID-S indicators are highly accurate and easy to use for measuring short linear distances in many different applications. Measurements are shown on an impact-resistant LCD display. The Mitutoyo ABS digital ID-S digital indicators provide up to a 12.7mm / .5" range in a compact design that is easy to use and read.

Large push buttons provide direct, easy access to all of the indictor’s functions, and readings are shown on a large 9mm LCD display. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation which is useful in multipoint measurements.

Features:

• Similar in size to standard Series 2 dial indicators
• Available in Metric and Inch/Metric models
• Buttons on the front of the indicator.
• Available with or without SPC output capabilities
• Exceptional battery life.
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• SPC output function allows for quick and easy data management in real time
• The Absolute sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
• Functions include Origin set, zero set, counting direction switching, power On/Off, data output and inch/mm conversion (on inch/metric models only)
• Alarm: Low voltage, counting value composition error, over-flow error
• Unlimited response speed eliminates over-speed errors
• IP42 for protection against objects greater than 1mm and water
• Supplied in a fitted plastic case

Functions:

Alarm:	Low voltage, sensor error, ABS data composition error
Remarks:	This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
Digital Scale:	Electrostatic capacitance type absolute linear encoder
