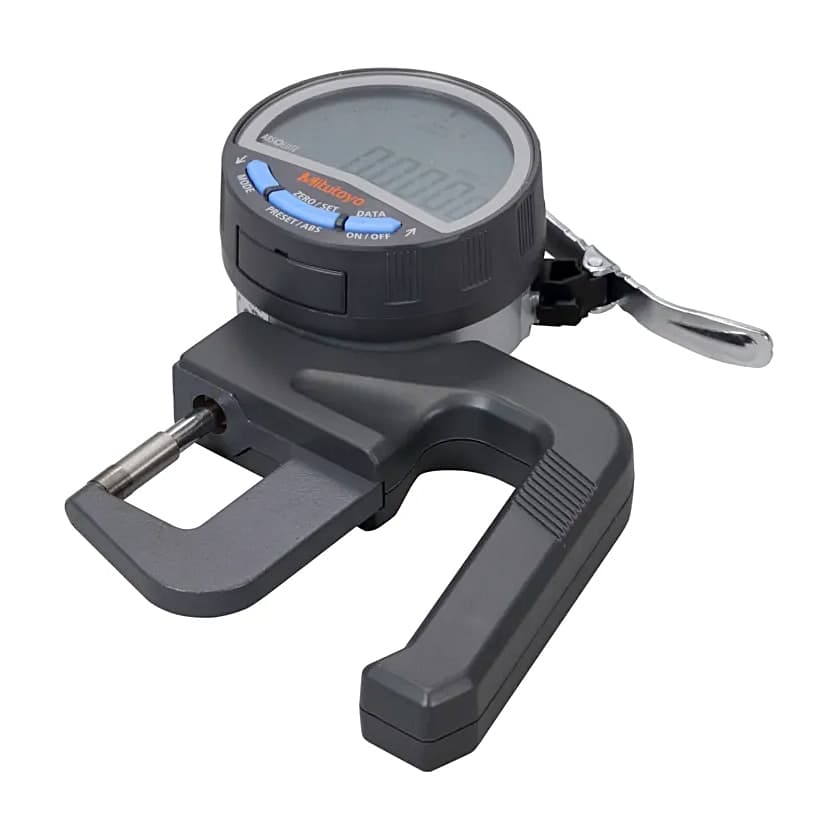

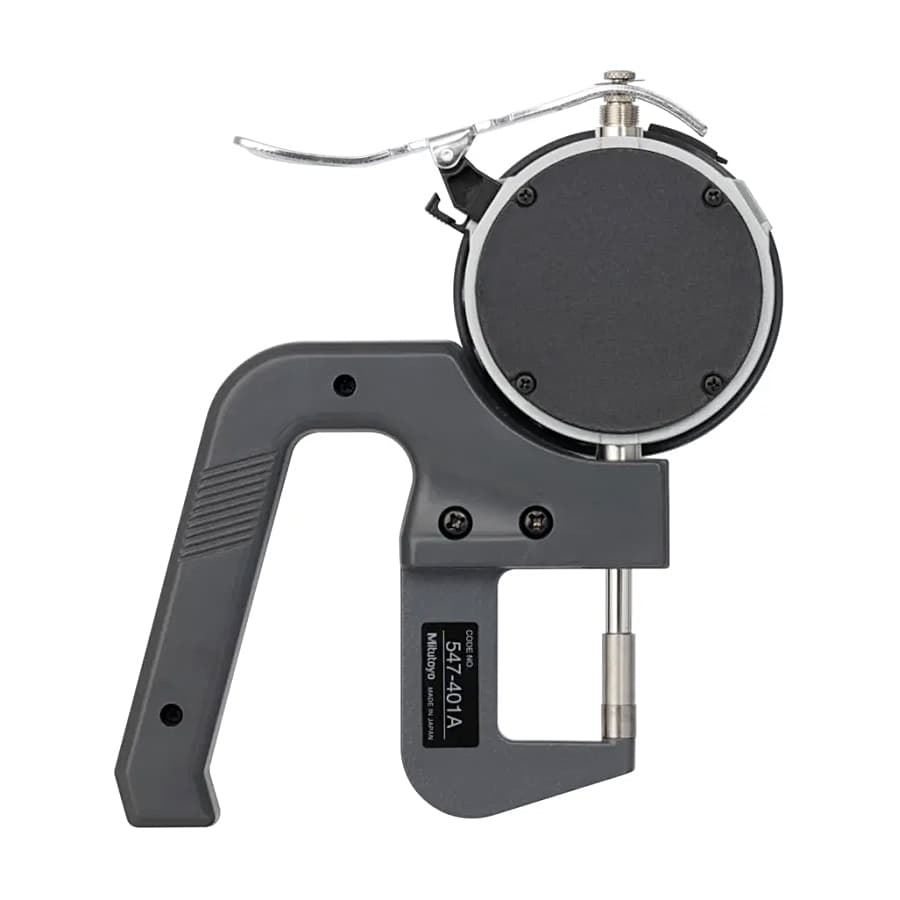

Mitutoyo 0 - 12 mm High Accuracy Absolute Digital Thickness Gauge, 547-401A

Shop all Mitutoyo

SKU: ME.DI.TH.01855

Model: 547-401A

Roll over image to zoom zoom_in
  1. Mitutoyo 0 - 12 mm High Accuracy Absolute Digital Thickness Gauge, 547-401A
  2. Mitutoyo 0 - 12 mm High Accuracy Absolute Digital Thickness Gauge, 547-401A
  3. Mitutoyo 0 - 12 mm High Accuracy Absolute Digital Thickness Gauge, 547-401A
  4. Mitutoyo 0 - 12 mm High Accuracy Absolute Digital Thickness Gauge, 547-401A
  5. Mitutoyo 0 - 12 mm High Accuracy Absolute Digital Thickness Gauge, 547-401A
Visit Mitutoyo Store keyboard_double_arrow_right
  • Weight: 275 Grams
  • Product Type: Thickness Gauge
  • Range (mm): 0 - 12 mm
  • Accuracy: ±3 µm
  • Resolution (Digital Step): 0.0005 mm / 0.001 mm / 0.1 mm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹51613.2 (Incl. of all taxes)

₹43740+ ₹7873.2 GST (18%)

MRP ₹58320

SAVE 25%

7 Business Days

1 Pcs

90173029

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

This ABSOLUTE Digimatic Thickness Gauge with 1 µm digital step enables you to measure film, paper, etc., with flat contact points.


Features:

  • Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
  • Electrostatic capacitance type absolute linear encoder
  • Functions with indicator ID-C No. 543.0-701.0BS


Functions:

  • ABS / INC (INC ZERO)
  • Analog bar resolution selection
  • Analog bar resolution switchable
  • Auto Power OFF setting
  • Calculation function (with formula)
  • Calibration warning function
  • Counting direction switchable
  • Customizing keys
  • DATA/HOLD
  • Digimatic data output
  • Digimatic S1 Bidirectional interface
  • Digital step switchable
  • Function lock
  • GO/±NG judgement
  • Inch/Metric switchable
  • MAX/MIN/RANGE
  • ON/OFF
  • Alarm (Low Voltage, Setting Errors, Sensor Error, Display Overflow a.s.o.)


Package Content:

  • Digital Thickness Gauge
  • CR2023 battery
  • Battery lid opener
  • Spindle lifting lever 21AZB149

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.DI.TH.01855
Product TypeThickness Gauge
Model No547-401A
Type of Product Digital Thickness Gauge
Range (mm) 0 - 12 mm
Accuracy ±3 µm
Resolution (Digital Step) 0.0005 mm / 0.001 mm / 0.1 mm
Display LCD, Character Height 11 mm

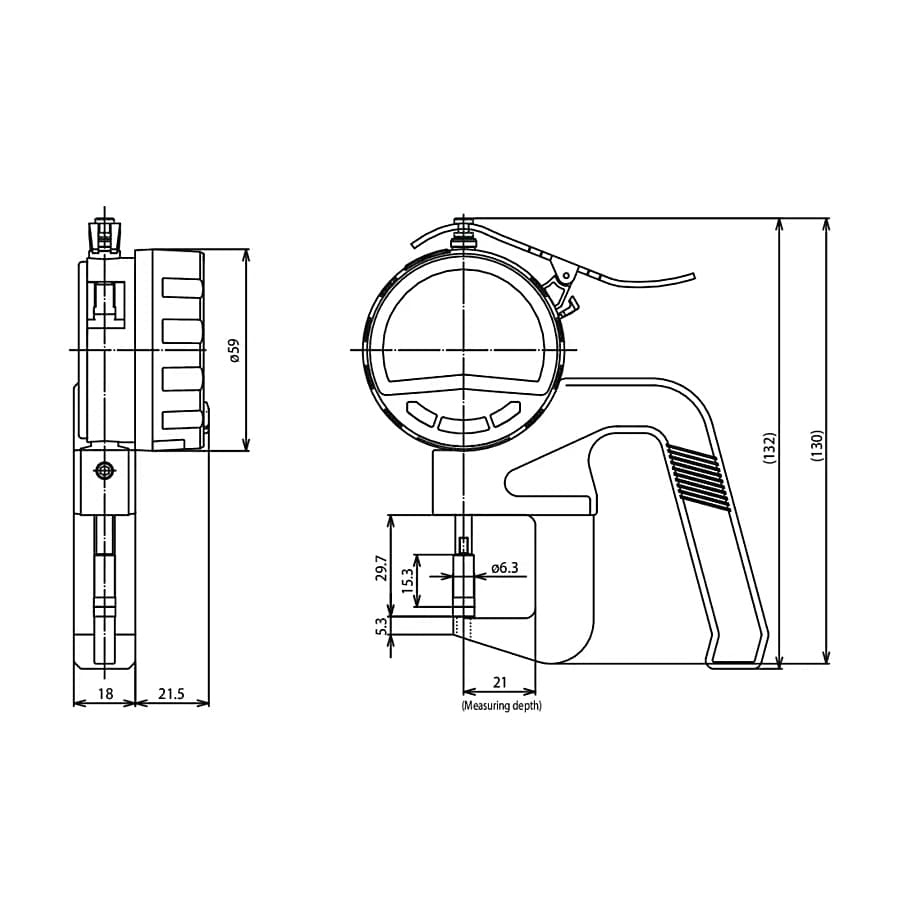

Max. Measuring Depth 21 mm
Measuring Force <3.5 N
Parallelism 3 µm
Protection IP42
Battery Life Continuous Use: Approx. 2700h
Power Supply 1x Battery CR2032 (3V)
