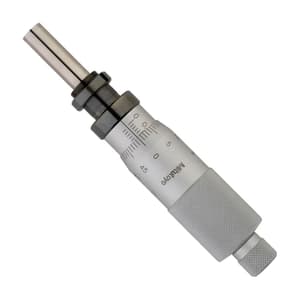

Mitutoyo 0 - 2.5 mm Standard Micrometer Head with Clamp Nut, 110-101
Roll over image to zoom zoom_in
- Weight: 150 Grams
- Product Type: Micrometer Head
- Range (mm): 0 - 2.5 mm
- Graduation (mm): 0.001 mm
- Graduation Feature: Standard
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹19302.44 (Incl. of all taxes)
₹16358+ ₹2944.44 GST (18%)
MRP ₹21810
SAVE 25%
3 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
A high-resolution, non-digital Mitutoyo micrometer head with M12 clamp-nut stem and heavy-duty Ø 8mm non-rotating spindle fitted with flat tungsten-carbide tip.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- The differential movement of spindle threads and nuts allows ultra-fine feeding.
- Differential movement mechanism with double spindle.
- Differential Screw Thread Translator (Extra-Fine Feed) Type
- Non-rotating Spindle
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.MI.MI.00073 |
|---|---|
| Product Type | Micrometer Head |
| Model No | 110-101 |
| Range (mm) | 0 - 2.5 mm |
| Graduation (mm) | 0.001 mm |
| Graduation Feature | Standard |
| Stem Dia. (mm) | 12 mm |
| Spindle End | Flat (Carbide Tip) |
| Max. Permissible Error (µm) | ±5 µm (JMPE) / ±1.5µm (JMPE-Narrow) |
| Fixture thickness for clamp nut | 9.5 mm |
