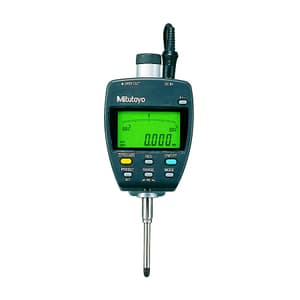

Mitutoyo 0 - 25 mm Digital Indicator ID-F, BS AC-Adapter, 543-551E

Shop all Mitutoyo

SKU: ME.DI.DI.00272

Model: 543-551E

Roll over image to zoom zoom_in
  1. Mitutoyo 0 - 25 mm Digital Indicator ID-F, BS AC-Adapter, 543-551E
  2. Mitutoyo 0 - 25 mm Digital Indicator ID-F, BS AC-Adapter, 543-551E
  3. Mitutoyo 0 - 25 mm Digital Indicator ID-F, BS AC-Adapter, 543-551E

  • Product Type: Digital Indicators
  • Range (mm): 0 - 25 mm
  • Accuracy: 0.003 mm
  • Digital step: 0.01/0.001 mm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

31736.1 (Incl. of all taxes)

26895+ ₹4841.1 GST (18%)


Out of Stock

1 Business Days

1 Pcs

90329000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

This is a superior multifunction indicator.
The ABSOLUTE Digimatic Indicator ID-F offers you the following benefits:

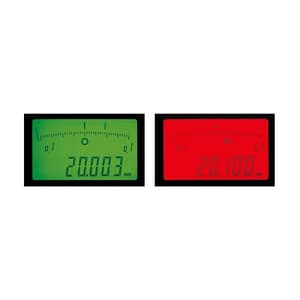

  • 2-colour LCD backlight (green and red) provides you with visual GO/±NG
    tolerance judgment and analog bar-graph display.
  • You can display the maximum, minimum, or range (runout value) during
    measurement.
  • External power supply via AC-Adapter.
  • Multi-functional.
  • GO/ENG judgment function: If a judgment result shows an out-of-tolerance condition, the display backlighting changes from green to red.
  • An analog bar indicator has been integrated to make upper/lower limit and turnover point reading more comfortable.
  • The ABS (absolute) scale restores the last origin position*1 automatically when the indicator is turned on and realizes high reliability by eliminating over-speed errors.
  • Easy-to-read large LCD readout with a character height of 8.5 mm.
  • External power supply type: an AC adapter is a standard accessory. Does not require battery replacement.
  • The resolution can be switched between 0.001 mm/0.01 mm (or 0.001 in/0.0005 in/0.0001 in/0.00005 in).
  • Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.DI.DI.00272
Product TypeDigital Indicators
Model No543-551E
Range (mm) 0 - 25 mm
Accuracy 0.003 mm
Digital step 0.01/0.001 mm
Data output Yes
Max. Permissible Error (Total Range) 0.003 mm
H MPE (Hysteresis) 0.002 mm
Mass 240 g
Measuring force 1.8 N
Protection IP30
Display LCD character height 8.5 mm
Max. response speed Unlimited
Alarm Counting value composition error, overflow error, tolerance limit setting error
Stem Ø 9.52 mm
Contact point Carbide ball thread # 4-48 UNF, Carbide ball, thread # 4-48 UNF
Power supply AC adapter 9V DC, 500mA
Delivered Including AC-Adapter, spindle lifting handle
ON/OFF Yes
ZERO/ABS Yes
PRESET Yes
GO/±NG judgement Yes
Counting direction switchable Yes
Selectable resolution Yes
Digital/Analog Digital
Inch-Metric Metric
Type EN ISO Standard
Contact point Carbide ball thread # 4-48 UNF, Carbide ball, thread # 4-48 UNF
