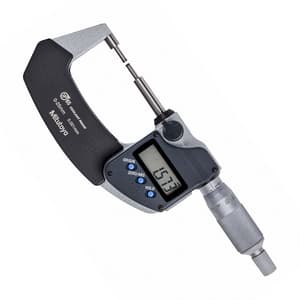

Mitutoyo 0 - 25 mm Digital Spline Micrometer (Type A), 331-251-30
Roll over image to zoom zoom_in
- Weight: 330 Grams
- Product Type: Spline Micrometer
- Range (mm): 0 - 25 mm
- Resolution (mm): 0.001 mm
- Type: A
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹28957.2 (Incl. of all taxes)
₹24540+ ₹4417.2 GST (18%)
MRP ₹32720
SAVE 25%
1 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
This Digital Spline Micrometer makes it easy for you to measure grooves and shaped parts.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
- Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
Functions:
- ABS
- Auto Power OFF after 20 min. non use
- Function lock
- HOLD
- Low-voltage alarm

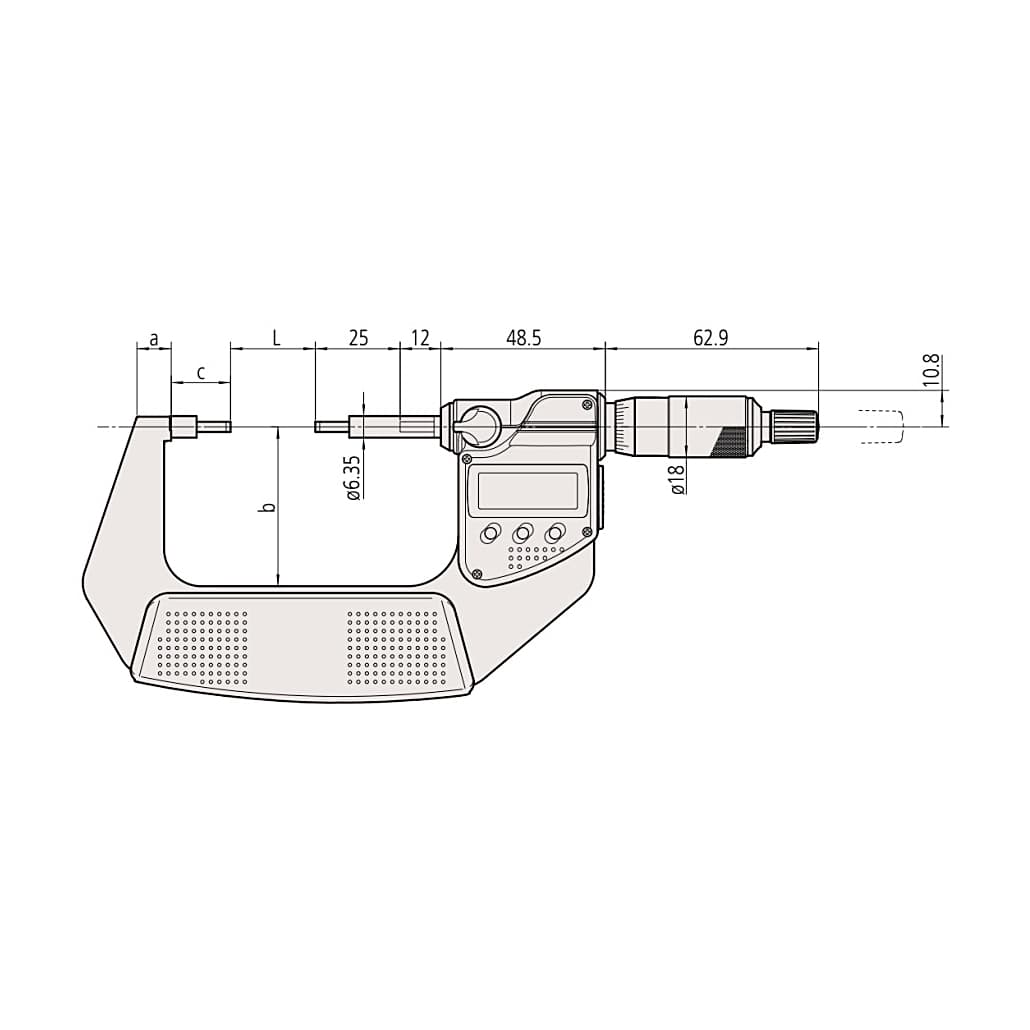

Dimensions Measurement (mm):
 |
|

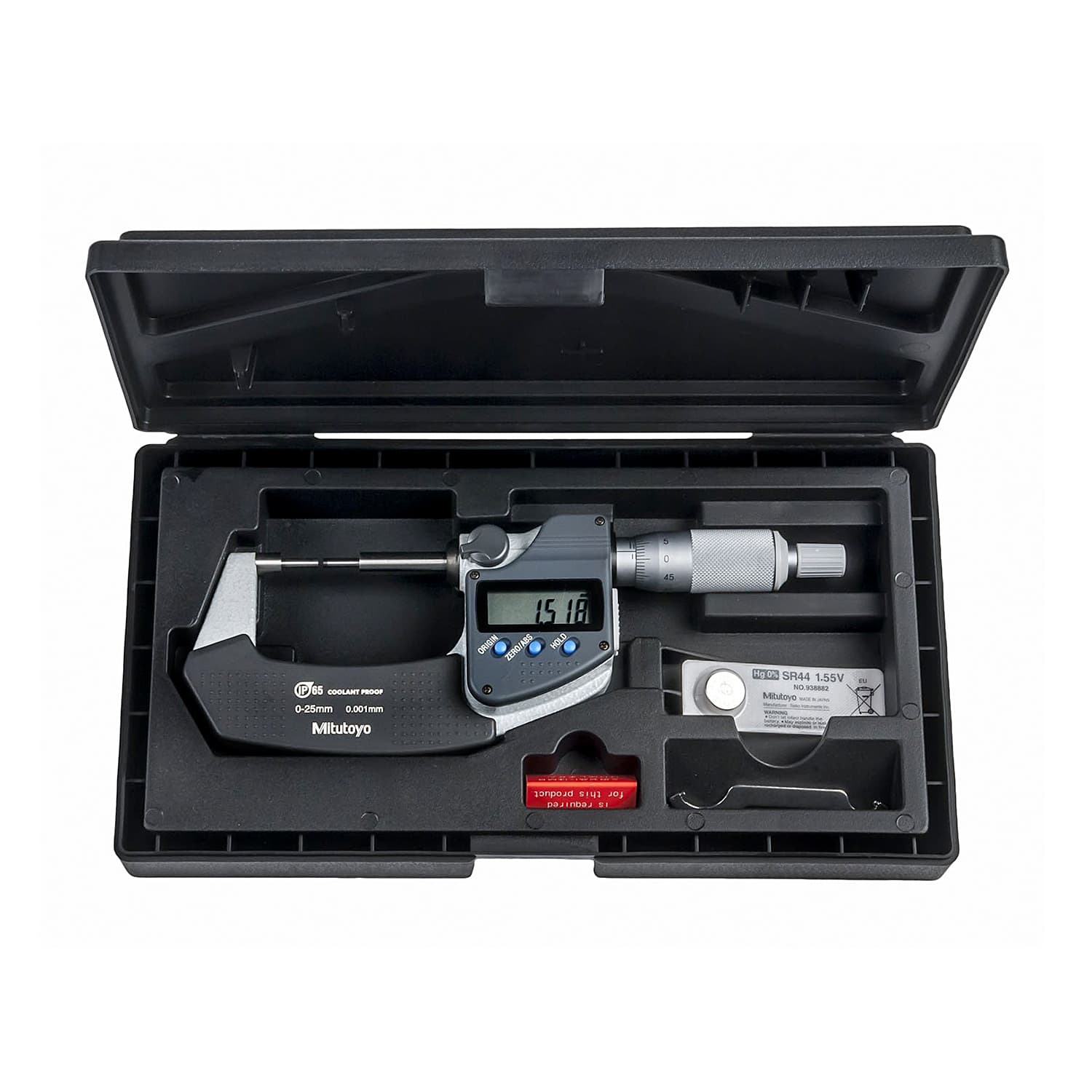

Package Content:
- 1x Digital Spline Micrometer
- 1x Spanner,
- 1x Battery (SR44)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.MI.SP.00033 |
|---|---|
| Product Type | Spline Micrometer |
| Model No | 331-251-30 |
| Range (mm) | 0 - 25 mm |
| Resolution (mm) | 0.001 mm |
| Max. Permissible Error JMPE (µm) | ±2µm |
| Flatness (µm) | 0.3 µm |
| Parallelism (µm) | 2 µm |
| Type | A |
| Measuring Force | 5 - 10 |
| Measuring Spindle | With Spindle Lock, ø6.35 mm, Spindle Pitch 0.5 mm |
| Scale Finishing | Thimble & sleeve satin chrome finish, ø18 mm |
| Display | LCD (Character Height 7.5 mm) |
| Power Supply | 1x SR44 Battery |
| IP Rating | IP65 |
