Mitutoyo 0 - 25 mm Outside Micrometer with Rachet Thimble, 102-707

Shop all Mitutoyo

SKU: ME.MI.OU.00261

Model: 102-707

Roll over image to zoom zoom_in
  1. Mitutoyo 0 - 25 mm Outside Micrometer with Rachet Thimble, 102-707
  2. Mitutoyo 0 - 25 mm Outside Micrometer with Rachet Thimble, 102-707
  3. Mitutoyo 0 - 25 mm Outside Micrometer with Rachet Thimble, 102-707
  4. Mitutoyo 0 - 25 mm Outside Micrometer with Rachet Thimble, 102-707
  5. Mitutoyo 0 - 25 mm Outside Micrometer with Rachet Thimble, 102-707

  • Weight: 180 Grams
  • Product Type: Outside Micrometer
  • Range (mm): 0 - 25 mm
  • Graduation (mm): 0.001 mm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

4080.44 (Incl. of all taxes)

3458+ ₹622.44 GST (18%)

MRP ₹4610

SAVE 25%



1 Business Days

1 Pcs

90173010

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • More accurate in one-handed operation: Inexperienced operators measure significantly more accurately with the new micrometer.

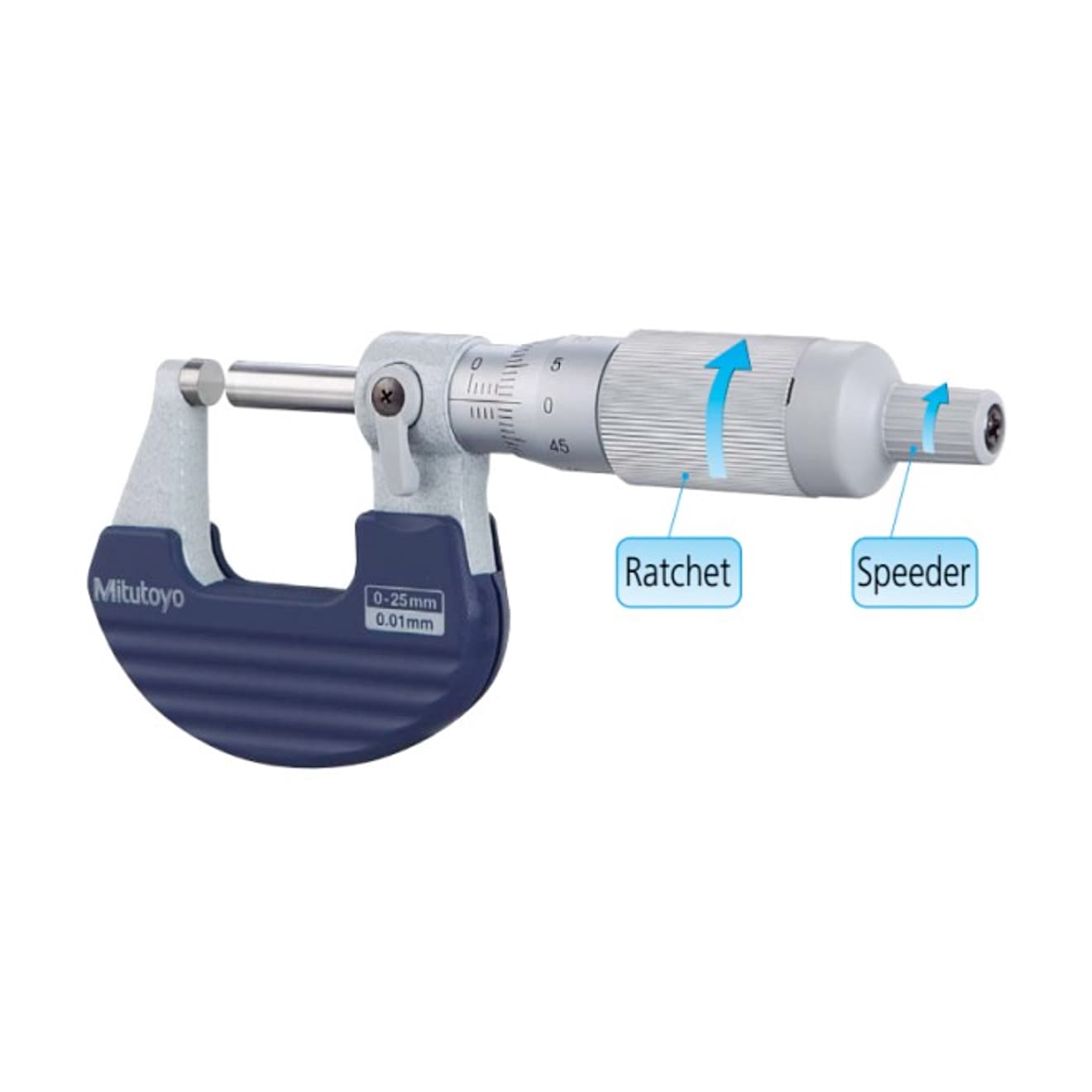

  • Ratchet function works both from the thimble and the speeder.

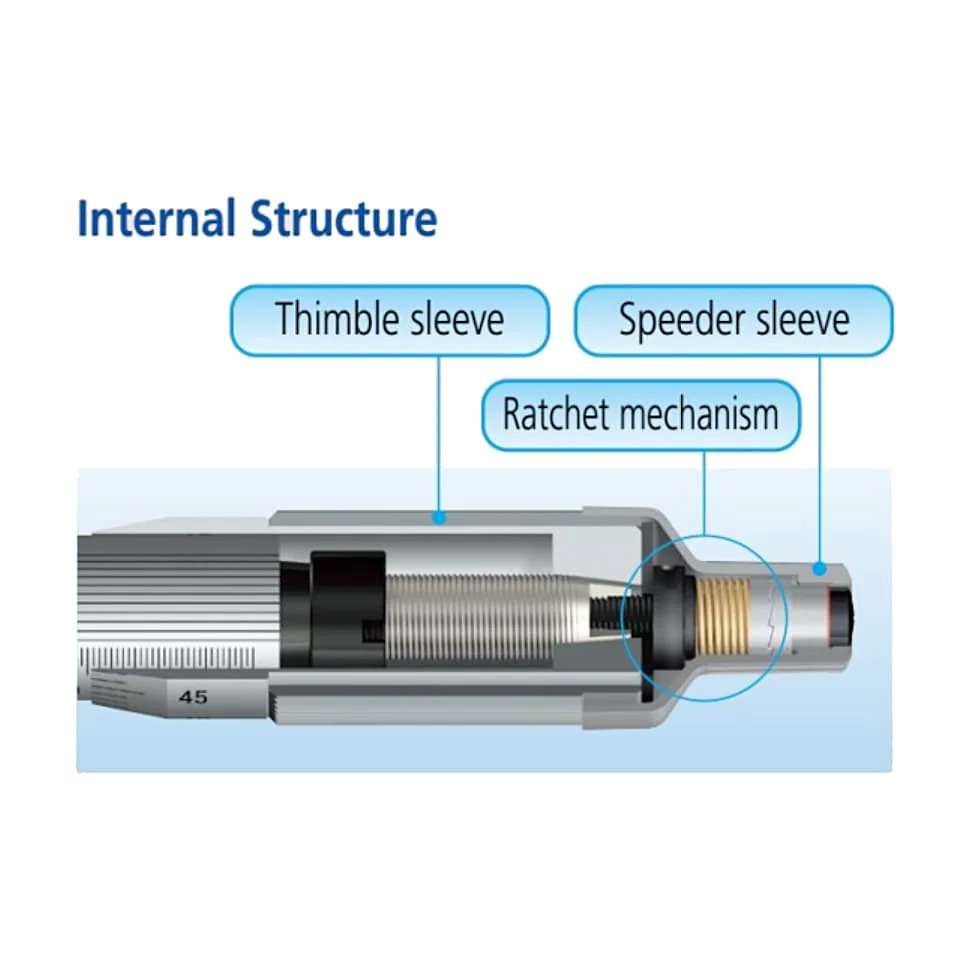

  • Rotating the thimble/ speeder when the workpiece is between the anvil and spindle causes the ratchet mechanism to operate and apply a constant measuring force to the workpiece.
  • Clearly audible ratchet operation for reassurance that measurement is being performed at a constant, preset force.
  • The speeder is always available for quick rotation of the spindle.
  • A simple mechanism, which requires neither part maintenance nor special technique, is employed in the constant-force device.
  • Heat-insulated frame.


Package Content:

  • 1x Outside Micrometer
  • 1x Spanner (301336)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.MI.OU.00261
Product TypeOutside Micrometer
Model No102-707
Type of Product Outside Micrometers
Range (mm) 0 - 25 mm
Graduation (mm) 0.001 mm
Maximum Permissible error (µm) ±2
Flatness (µm) 0.6 µm
Parallelism (µm) 2 µm
Measuring Force 5 to 10 N
Measuring Faces Carbide

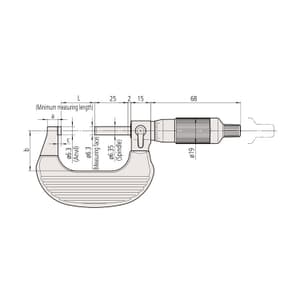

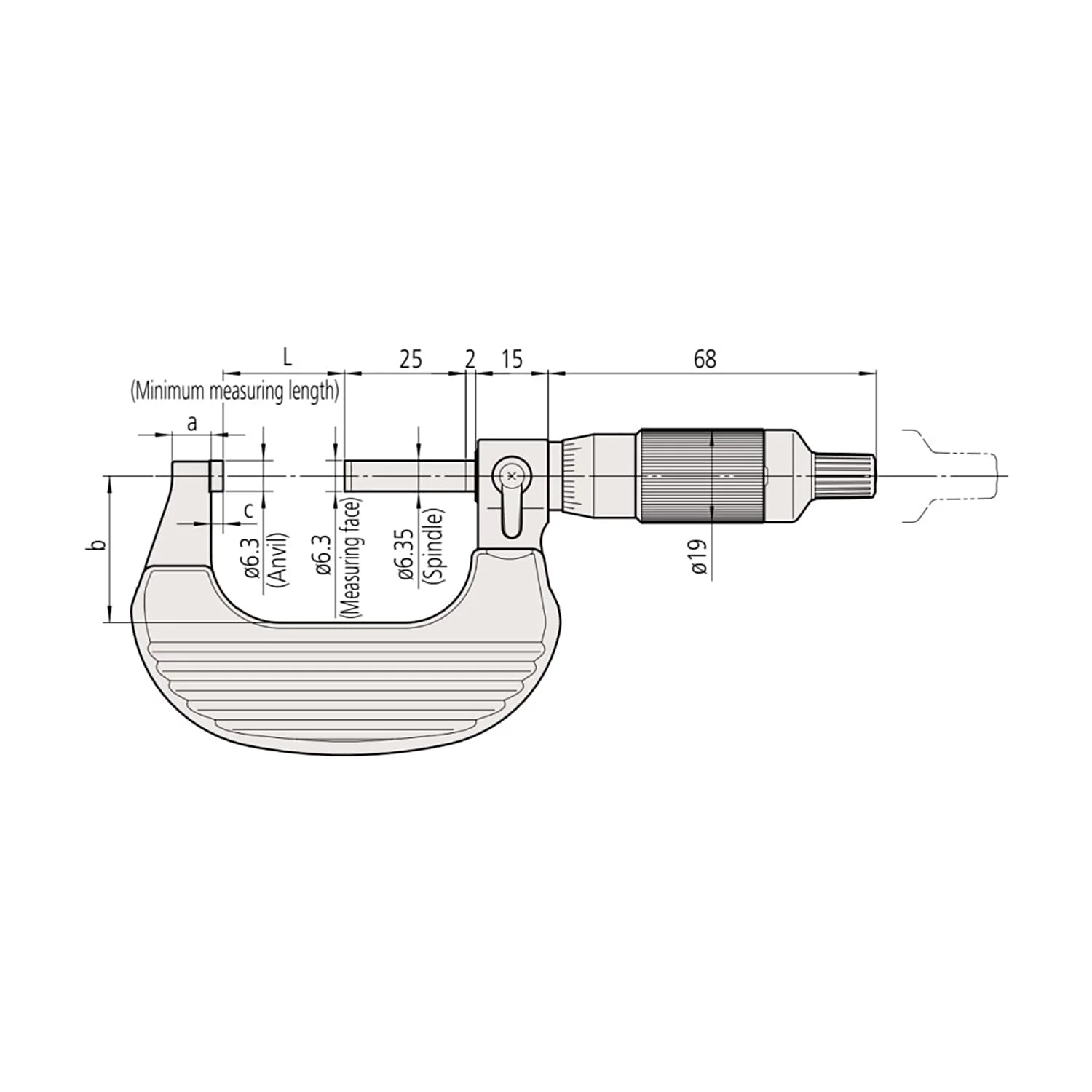

Dimensions (mm) 0 (L) x 5 (a) x 26 (b) x 2.5 (C) mm
