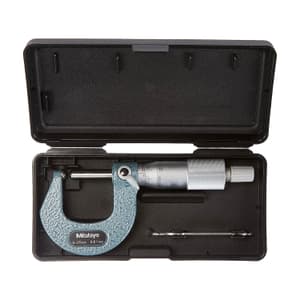

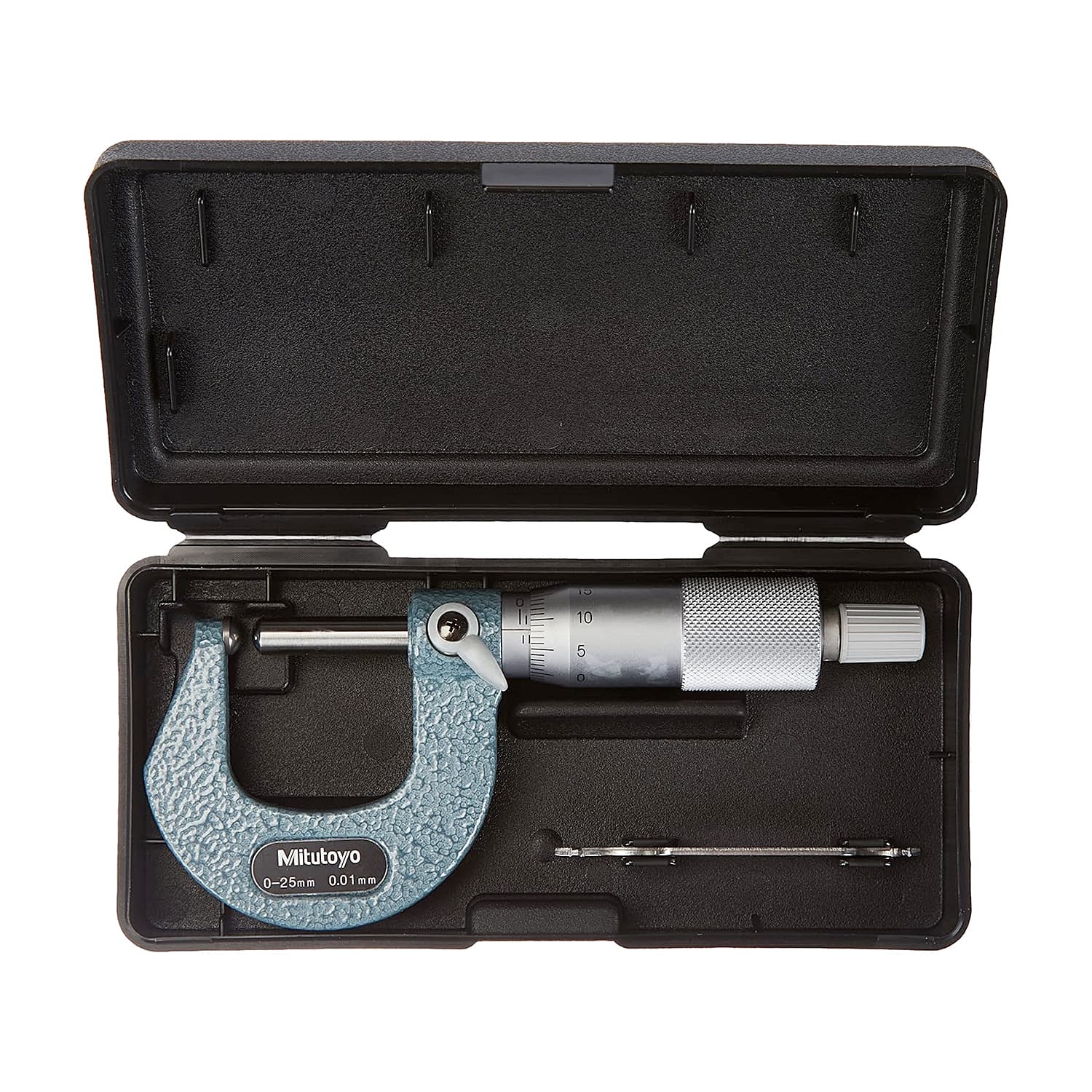

Mitutoyo 0 - 25 mm Spherical Anvil Tube Micrometer (Type F), 115-215

Shop all Mitutoyo

SKU: ME.MI.TU.00027

Model: 115-215

Roll over image to zoom zoom_in
  1. Mitutoyo 0 - 25 mm Spherical Anvil Tube Micrometer (Type F), 115-215
  2. Mitutoyo 0 - 25 mm Spherical Anvil Tube Micrometer (Type F), 115-215
  3. Mitutoyo 0 - 25 mm Spherical Anvil Tube Micrometer (Type F), 115-215

  • Weight: 180 Grams
  • Product Type: Tube Micrometer
  • Range (mm): 0 - 25 mm
  • Graduation (mm): 0.01 mm
  • Anvil / Spindle: Type F (Spherical Anvil & Spindle SR=4 mm)
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

4546.54 (Incl. of all taxes)

3853+ ₹693.54 GST (18%)

MRP ₹4940

SAVE 22%



3 Business Days

1 Pcs

90173010

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

A Mitutoyo non-digital tube micrometer equipped with spherical anvil and spindle tip for making wall thickness measurements on tubes and pipes. A ratchet stop guarantees repeatable measurement.


Features:

  • Carbide-tipped spindle and anvil ensure durability and wear resistance
  • Ratchet-stop mechanism provides uniform measuring pressure for accuracy
  • Specially designed for checking wall thickness across various tubing types


Package Content:

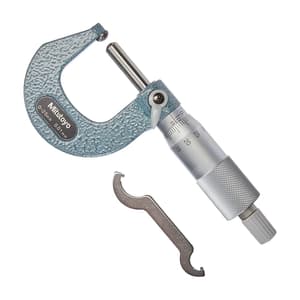

  • Tube Micrometer
  • Spanner

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.MI.TU.00027
Product TypeTube Micrometer
Model No115-215
Range (mm) 0 - 25 mm
Graduation (mm) 0.01 mm
Max. Permissible Error (JPME) ±3µm
Diameter (mm) Ø10 mm
Measuring Force 5 - 10

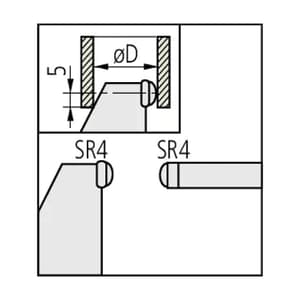

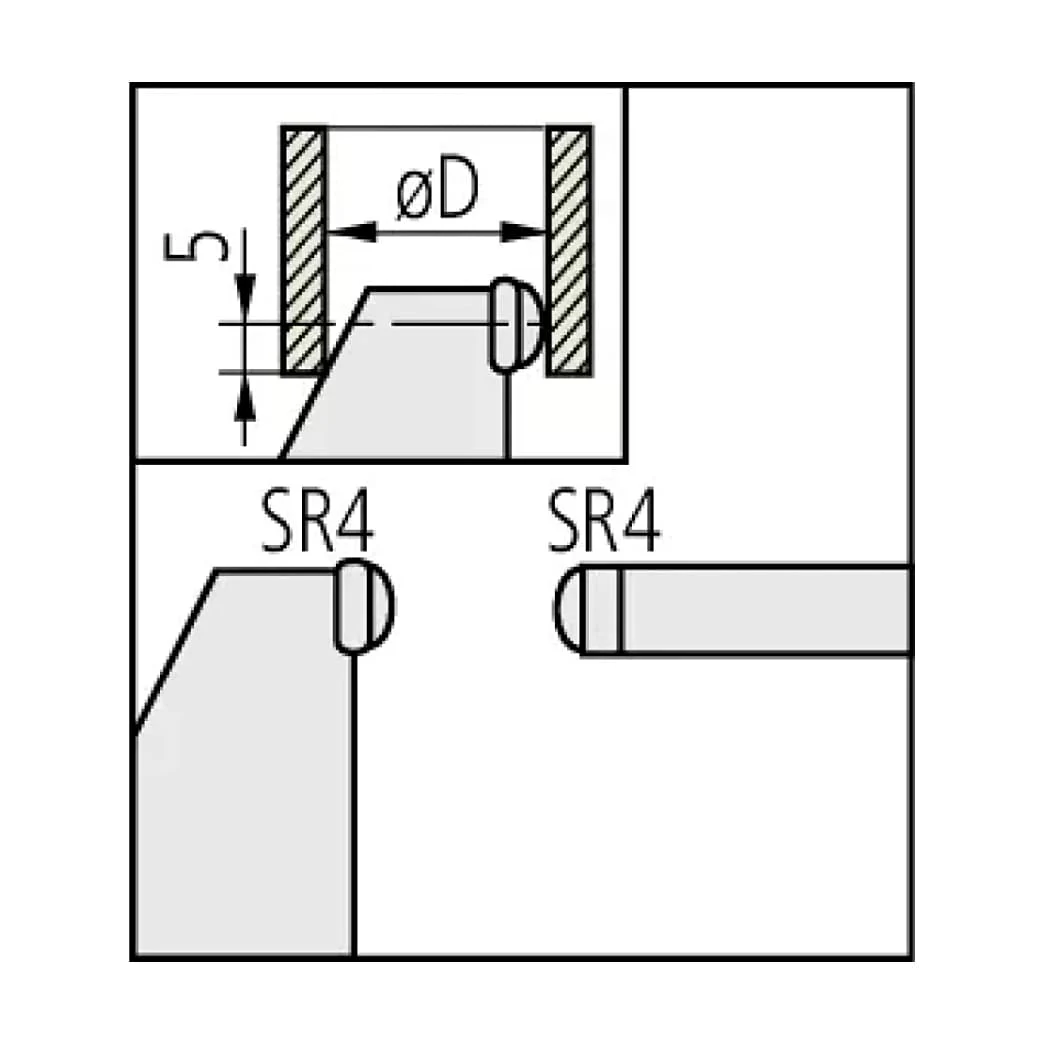

Anvil / Spindle Type F (Spherical Anvil & Spindle SR=4 mm)
Measuring Spindle With Spindle Lock, ø6.35 mm, Spindle Pitch 0.5 mm
Scale Finishing Thimble & Sleeve Satin Chrome Finish, ø18 mm
