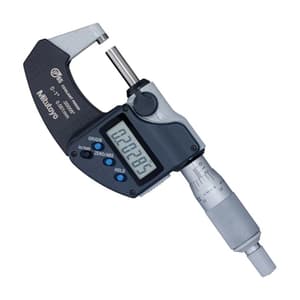

Mitutoyo 1 inch / 25.4 mm Digital Micrometer With Ratchet Stop & SPC Data Output (IP65 Coolant-Proof), 293-330-30

Shop all Mitutoyo

SKU: ME.MI.EL.00145

Model: 293-330-30

Roll over image to zoom zoom_in
  1. Mitutoyo 1 inch / 25.4 mm Digital Micrometer With Ratchet Stop & SPC Data Output (IP65 Coolant-Proof), 293-330-30
  2. Mitutoyo 1 inch / 25.4 mm Digital Micrometer With Ratchet Stop & SPC Data Output (IP65 Coolant-Proof), 293-330-30
  3. Mitutoyo 1 inch / 25.4 mm Digital Micrometer With Ratchet Stop & SPC Data Output (IP65 Coolant-Proof), 293-330-30
  4. Mitutoyo 1 inch / 25.4 mm Digital Micrometer With Ratchet Stop & SPC Data Output (IP65 Coolant-Proof), 293-330-30
Video

  • Weight: 270 Grams
  • Product Type: Electronic Micrometer
  • Range (Inches): 0 - 1 inch
  • Range (mm): 0 - 25.4 mm
  • Measuring Force: 5 - 10 N
  • Power Supply: 1 Battery SR-44
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

16868.1 (Incl. of all taxes)

14295+ ₹2573.1 GST (18%)

MRP ₹19060

SAVE 25%



7 Business Days

1 Pcs

90173010

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • IP65 protection level, enabling use in environments exposed to cutting oil, etc. (Anti-corrosion treatment is required after use.)
  • Measurement data output function is available with a water-resistant connection cable.
  • Auto power ON/OFF function.
  • A nonslip surface is employed for the frame cover and surface panel to achieve stable handheld measurement.
  • Certificate of inspection is included
  • With a standard bar
  • Supplied in fitted Plastic case
  • Oil-resistant material used for all plastic parts
  • Excellent resistance against water and dust enables this micrometer to be used in machining situations that include splashing coolant fluid.


Functions:

  • 2 x PRESET (over 100 mm)
  • ABS / INC (INC ZERO
  • Auto Power OFF after 20 min. non use
  • Data output
  • Function lock
  • HOLD
  • Low voltage alarm


Package Content:

  • Digital Micrometer
  • Spanner,
  • SR44 battery,
  • Certificate of inspection

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.MI.EL.00145
Product TypeElectronic Micrometer
Model No293-330-30
Range (Inches) 0 - 1 inch
Range (mm) 0 - 25.4 mm
Maximum Permissible Error J MPE ±0.00005 inch
Parallelism 0.00004"
Flatness 0.000012"
Measuring Force 5 - 10 N
Digital Step 0.00005" / 0.001 mm
Display LCD, Character Height 7.5 mm
Power Supply 1 Battery SR-44
Battery Life Approx. 2.4 years
Measuring Face Carbide-tipped, Micro-lap Finish
Measuring Spindle With Spindle Lock, Ø6.35 mm, Spindle Pitch 0.5 mm
Scale Thimble & Sleeve Satin Chrome Finish, Ø18 mm

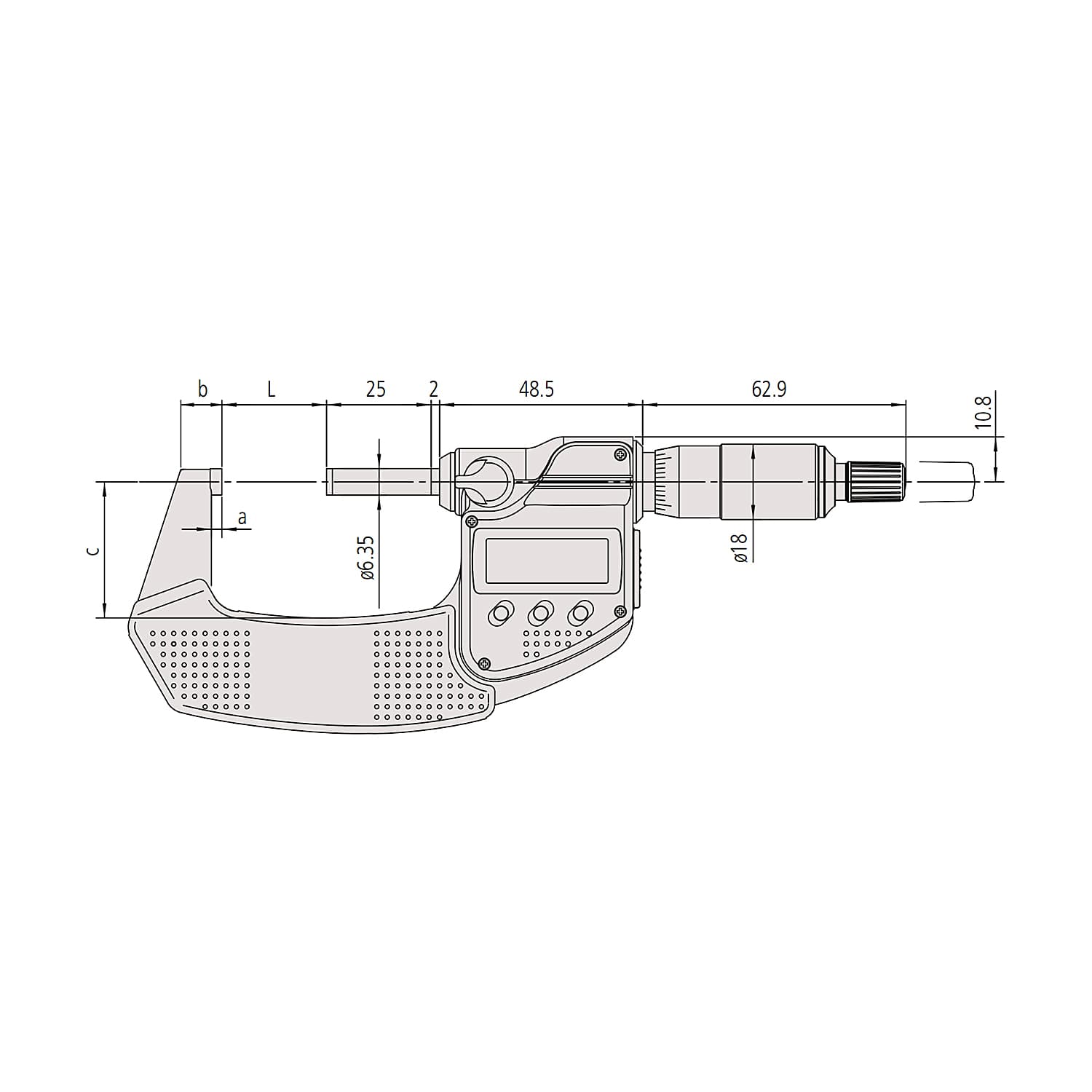

Sizes (a x b x c) 2.5 x 9 x 25 mm
