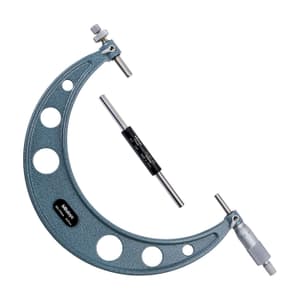

Mitutoyo 150 - 175 mm Gear Tooth Micrometer, 124-179
Roll over image to zoom zoom_in
- Weight: 900 Grams
- Product Type: Gear Tooth Micrometer
- Range (mm): 150 - 175 mm
- Graduation: 0.01 mm
- Accuracy: ±6µm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹46171.04 (Incl. of all taxes)
₹39128+ ₹7043.04 GST (18%)
MRP ₹52170
SAVE 25%
3 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Interchangeable Ball Anvil-Spindle Tip Type
- Measures over-pin diameter of gears with precision steel (carbide) ball-tipped measuring faces.
- With Ratchet Stop for constant force.

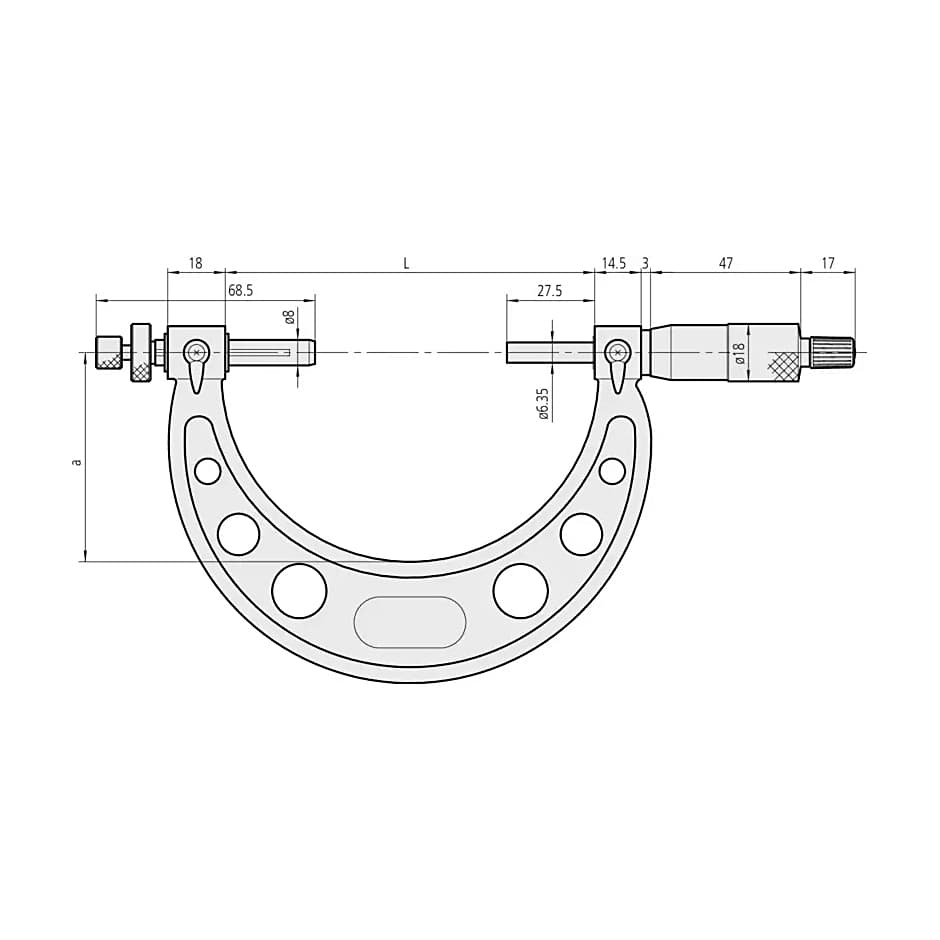

Dimension Measurement:
 |
|

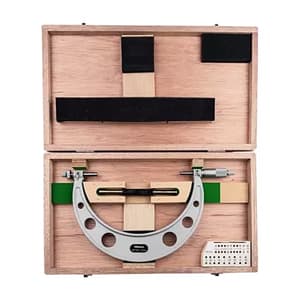

Package Content:
- 1x Gear Tooth Micrometer
- 1x spanner
- 1x setting standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.MI.GE.00011 |
|---|---|
| Product Type | Gear Tooth Micrometer |
| Model No | 124-179 |
| Range (mm) | 150 - 175 mm |
| Graduation | 0.01 mm |
| Accuracy | ±6µm |
| Force Measurement | 5 - 10N |
| Spindle Feed Error | 3 |
| Measuring Spindle | ø6.35 mm With Spindle Lock (Spindle Pitch 0.5 mm) |
| Face Measurement | Interchangeable Anvil / Spindle Inserts (Optional) |
| Scale | Thimble and Sleeve Satin Chrome Finish, ø18 mm |
