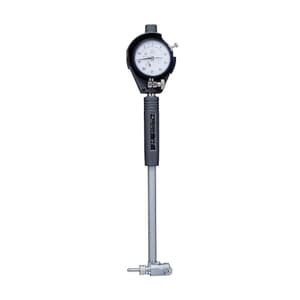

Mitutoyo 18 - 35 mm Standard Bore Gauge With Dial Indicator, 511-711-20
Roll over image to zoom zoom_in
- Weight: 330 Grams
- Product Type: Bore Gauge
- Type of Product: With Dial Indicator
- Range (mm): 18 - 35 mm
- Number Of Anvils: 9 Pcs
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹15930 (Incl. of all taxes)
₹13500+ ₹2430 GST (18%)
MRP ₹18000
SAVE 25%
3 Business Days
1 Set
90173029
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
- Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
- Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
Package Content:
- 1x Bore gauge (511-701)
- 1x Dial indicator (2046AB)
- 1x Plastic cover for indicator (21DZA000)
- 9x Anvils
- 2x Interchangeable washer,
- 1x Spanner (102148)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.BO.00170 |
|---|---|
| Product Type | Bore Gauge |
| Model No | 511-711-20 |
| Type of Product | With Dial Indicator |
| Range (mm) | 18 - 35 mm |
| Number Of Anvils | 9 Pcs |
| Number of Spacers | 2 Pcs |
| Effective Stroke Of Plunger | 1.2 mm |
| Units | Metric |
| Type | Standard |
| Accuracy | 2 µm |
| Graduation | 0.01 mm |
| Measuring Depth | 100 mm |
| Repeatability | 0.5 µm |
