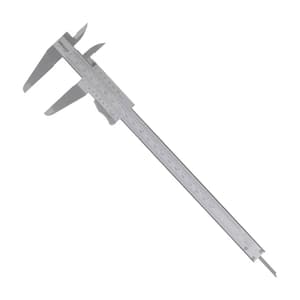

Mitutoyo 200 mm / 8 inch Vernier Double Scale Caliper with Thump Grip, 531-129

Shop all Mitutoyo

SKU: ME.CA.VE.00179

Model: 531-129

Roll over image to zoom zoom_in
  1. Mitutoyo 200 mm / 8 inch Vernier Double Scale Caliper with Thump Grip, 531-129
  2. Mitutoyo 200 mm / 8 inch Vernier Double Scale Caliper with Thump Grip, 531-129
Visit Mitutoyo Store keyboard_double_arrow_right
  • Product Type: Vernier Caliper
  • Range (mm): 0 - 200 mm
  • Range (Inches): 0 - 8 inch
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹5549.54 (Incl. of all taxes)

₹4703+ ₹846.54 GST (18%)

MRP ₹6270

SAVE 25%

1 Business Days

1 Pcs

90173010

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • The slider moves only when the spring-loaded thumb grip is depressed.
  • Allows step measurement.
  • Hardened stainless steel construction with satin chrome finish, for protection of caliper.
  • Four-way measurement capability for outside dimension, inside dimension, depth and step measurements
  • Vernier sliding scale moves only when spring loaded thumb clamp is depressed, for ease of measurement
  • Raised sliding surfaces for preventing defacement and wear of scale graduations
  • Meets Federal Accuracy Specifications GGG-C-111B


Dimensions Measurement (mm)

  • A: 20.5 mm
  • B: 25 mm
  • D: 50 mm
  • H: 16 mm
  • L: 288 mm

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.CA.VE.00179
Product TypeVernier Caliper
Model No531-129
Range (mm) 0 - 200 mm
Range (Inches) 0 - 8 inch
Max. Permissible Error (mm) ±0.03 mm (EMPE - Outside Measurement / SMPE - Inside Measurement)
Graduation (mm) 0.02 mm (0.001 inch)
Jaw Thickness 3 mm
Depth Bar Blade
High Accuracy Yes
