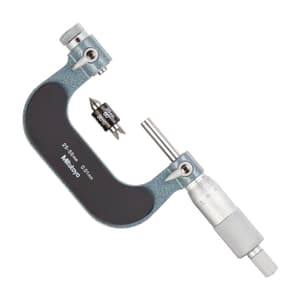

Mitutoyo 25 - 50 mm Interchangeable Anvil Screw Thread Micrometer (Spindle Tip Type), 126-126
Roll over image to zoom zoom_in
- Weight: 290 Grams
- Product Type: Screw Thread Micrometer
- Range (mm): 25 - 50 mm
- Graduation: 0.01mm
- Accuracy: ±4µm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹17823.9 (Incl. of all taxes)
₹15105+ ₹2718.9 GST (18%)
MRP ₹20140
SAVE 25%
3 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- 60 degree or 55 degree V-anvil and conical spindle (interchangeable) are optional, which are made of high-grade steel, hardened and precision ground.
- With ratchet stop for constant force.

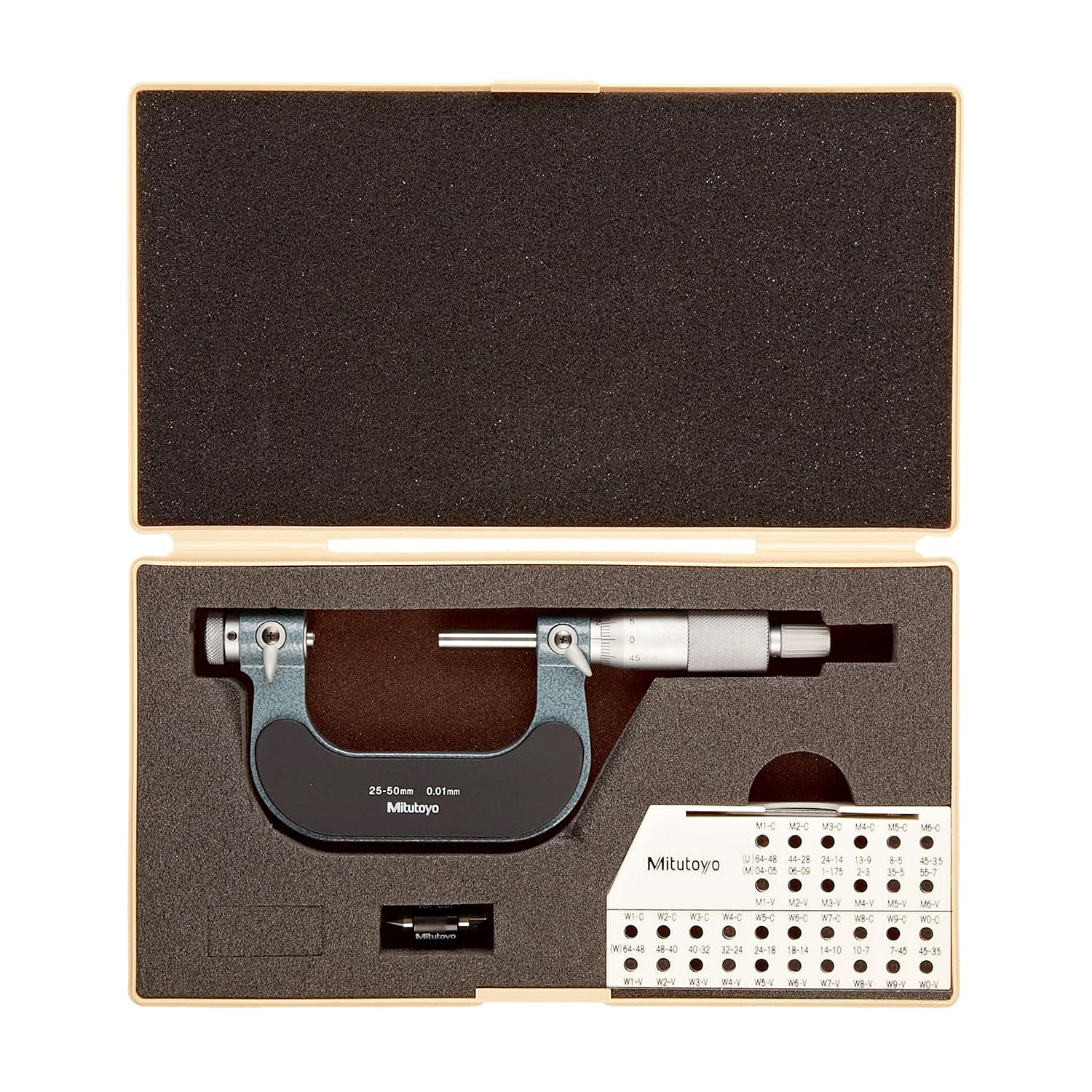

- Supplied in fitted plastic case.
Packing Content:
- 1x Screw Thread Micrometer
- 1x Spanner
- 1x Setting Standard 60°
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.MI.SC.00035 |
|---|---|
| Product Type | Screw Thread Micrometer |
| Model No | 126-126 |
| Range (mm) | 25 - 50 mm |
| Graduation | 0.01mm |
| Accuracy | ±4µm |
| Force Measurement | 5 - 10N |
| Spindle Feed Error | 3 |
| Measuring Spindle | With Spindle Lock, Ø6.35 mm, Spindle Pitch 0.5 mm |
| Face Measurement | Interchangeable Anvil/Spindle Inserts (optional) |
| scale | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
| "a" Size (mm) | 32 mm |
| Length (mm) | 64.5 mm |
