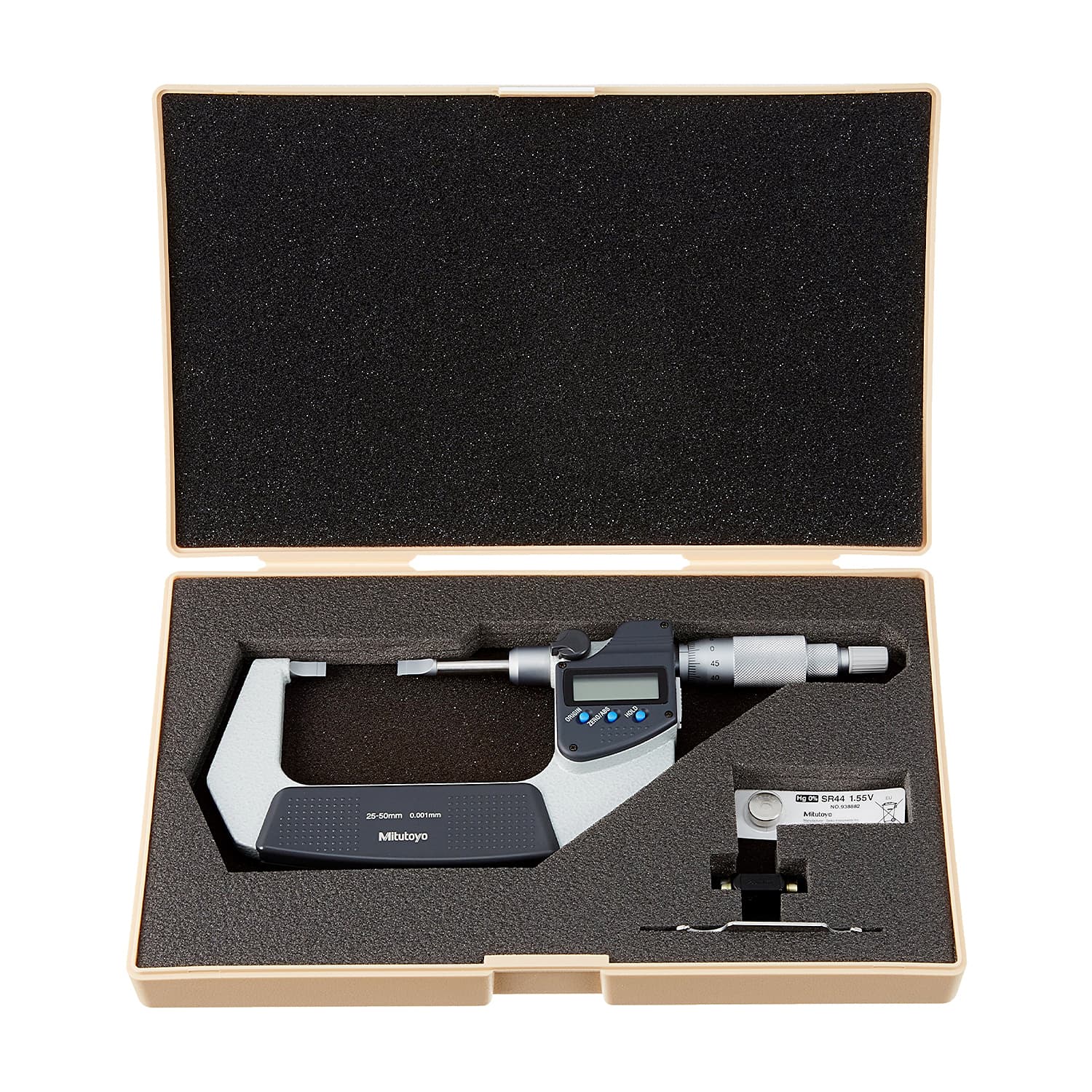

Mitutoyo 25 - 50 mm Non-rotating Spindle Type Digital Blade Micrometer (Type B), 422-261-30
Roll over image to zoom zoom_in
- Weight: 565 Grams
- Product Type: Blade Micrometers
- Range (mm): 25 - 50 mm
- Remarks: Type B
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹42772.64 (Incl. of all taxes)
₹36248+ ₹6524.64 GST (18%)
MRP ₹48330
SAVE 25%
3 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features
- Non-rotating spindle
- With ratchet stop for constant force
- Non-slip grip finish
- Supplied in fitted plastic case
Functions:
- ABS / INC (INC ZERO)
- Auto Power OFF after 20 min. non use
- Function lock
- HOLD
- Low voltage alarm
- ORIGIN
Package Content:
- 1x Digital Blade Micrometer
- 1x Setting Standard
- 1x Spanner
- 1x SR44 battery
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.MI.BL.00081 |
|---|---|
| Product Type | Blade Micrometers |
| Model No | 422-261-30 |
| Range (mm) | 25 - 50 mm |
| Resolution | 0.001 mm |
| Accuracy | ±3µm |
| Remarks | Type B |
| Blade Size (mm) | 0.40 mm |
| Display | LCD, (Character Height 7.5 mm) |
| Measuring Face | Carbide-tipped or Hardened Steel Spindle & Anvil |
| Measuring Force | 3 - 8 N |
| Measuring Spindle | With Spindle Lock, Ø6.35 mm, Spindle Pitch 0.5 mm |
| Parallelism | 3 µm |
| Scale | Thimble & Sleeve Satin Chrome Finish, Ø18 mm |
| Power Supply | 1x Battery SR-44 |
| Battery Life | Approx. 2.4 Years |
