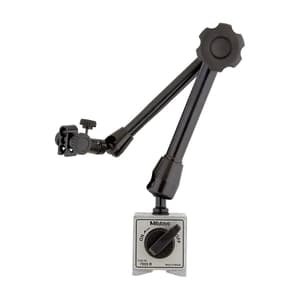

Mitutoyo 346 mm Universal Magnetic Stand, 7033-10
Roll over the image to zoom in
Key Features
- Product Type: Magnetic Stand
- Weight: 1.75 kg
- Working Radius: 346 mm
- Total Height: 425 mm
- Thread Arm / Base: M8 x 1.25
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹33,134 (Incl. of all taxes)
₹28,080 + ₹5,054 GST (18%)
MRP was MRP ₹37,440
Save 25%
7 Business Days
1
90319000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Product Information
Highlights
Mitutoyo's Magnetic Stands accept all dial indicators and dial test indicators. The On-Off switch offers instant mounting and dismounting without any adverse effect to the indicators or workpiece surface
Features:
- It comes with a mechanical locking system and allows fine adjustment.
- You can also fix a dial indicator in any position by mechanically clamping the articulated arm.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | For Dial Indicators |
|---|---|
| Clamping Force (Vertical) | 600 N |
| Working Radius | 346 mm |
| Clamping Device | Magnetic |
| Total Height | 425 mm |
| Fine Adjustment | With fine feed wheel ±4° |
| Thread Arm / Base | M8 x 1.25 |
| Base Size (L x W x H) | 59 x 50 x 55 mm |
| Stem Hole Ø | 6 mm, 8 mm, 9.53 mm, dovetail |
