Mitutoyo 50 - 75 mm Hub Micrometer, 147-303
Roll over image to zoom zoom_in
- Weight: 170 Grams
- Product Type: Hub Micrometer
- Range (mm): 50 - 75 mm
- h1 (mm): 6.5 mm
- h2 (mm): 11 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹18010.34 (Incl. of all taxes)
₹15263+ ₹2747.34 GST (18%)
MRP ₹20350
SAVE 25%
3 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Measure hub thickness and shoulder inside a bore
- With a ratchet stop for constant force

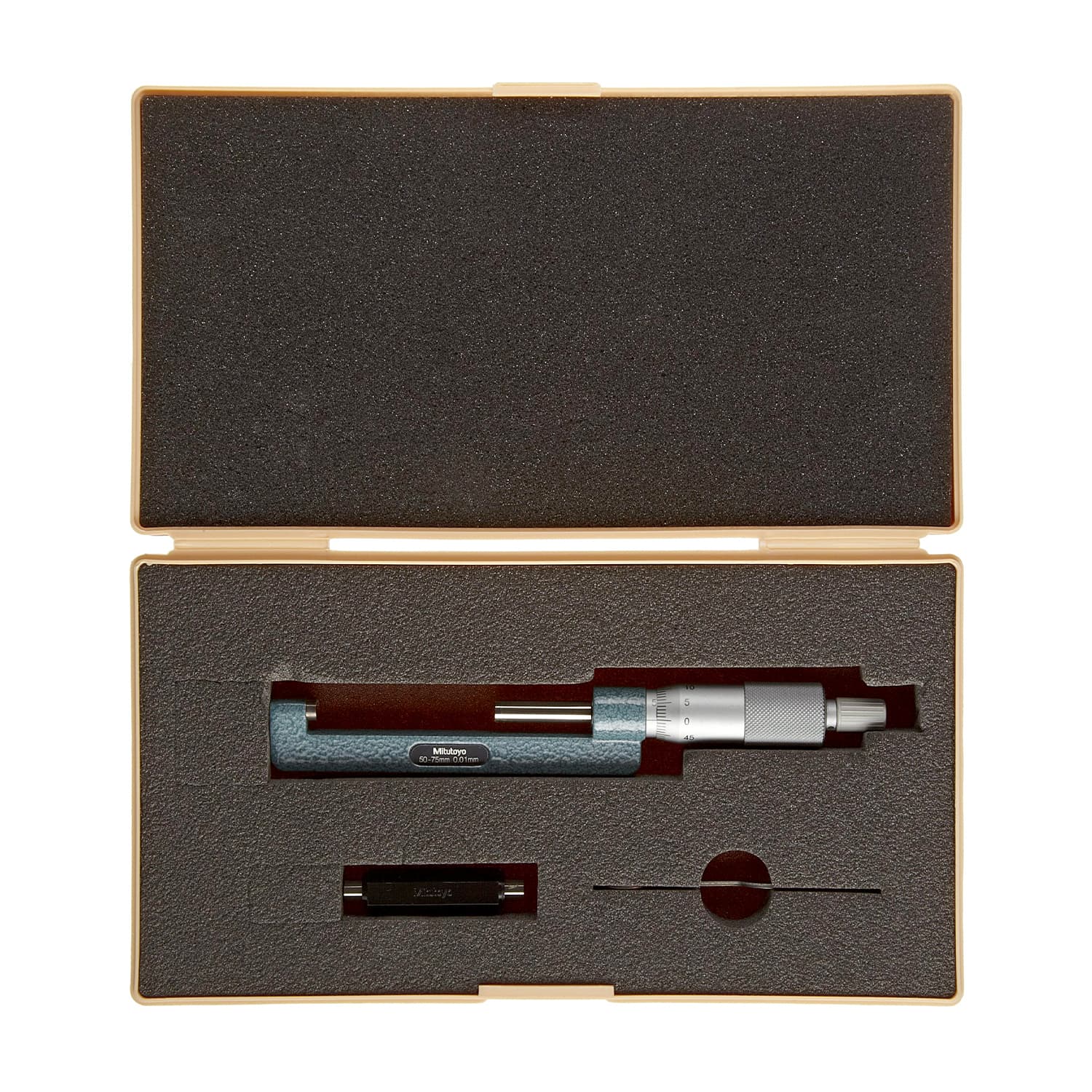

- Supplied in a fitted plastic case.

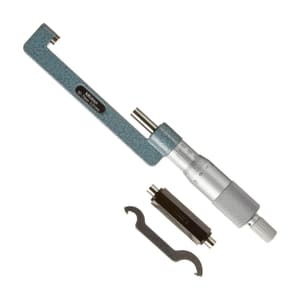

Package Content:
- Hub Micrometer
- Spanner
- Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.HU.00007 |
|---|---|
| Product Type | Hub Micrometer |
| Model No | 147-303 |
| Range (mm) | 50 - 75 mm |
| h1 (mm) | 6.5 mm |
| h2 (mm) | 11 mm |
| h3 (mm) | 13 mm |
| H (mm) | 20.5 mm |
| Accuracy | ±2µm |
| Graduation (mm) | 0.01 mm |
| Flatness | 0.6µm |
| Parallelism | 3µm |
| Measuring Force | 5 - 10N |
| Measuring Spindle | Ø6.35 mm, Spindle Pitch 0.5 mm |
| Measuring Face | Carbide-tipped, Micro-lap Finish |
| Scale | Thimble & Sleeve Satin Chrome Finish, Ø18 mm |
