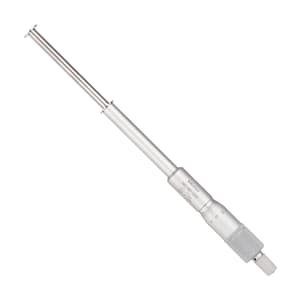

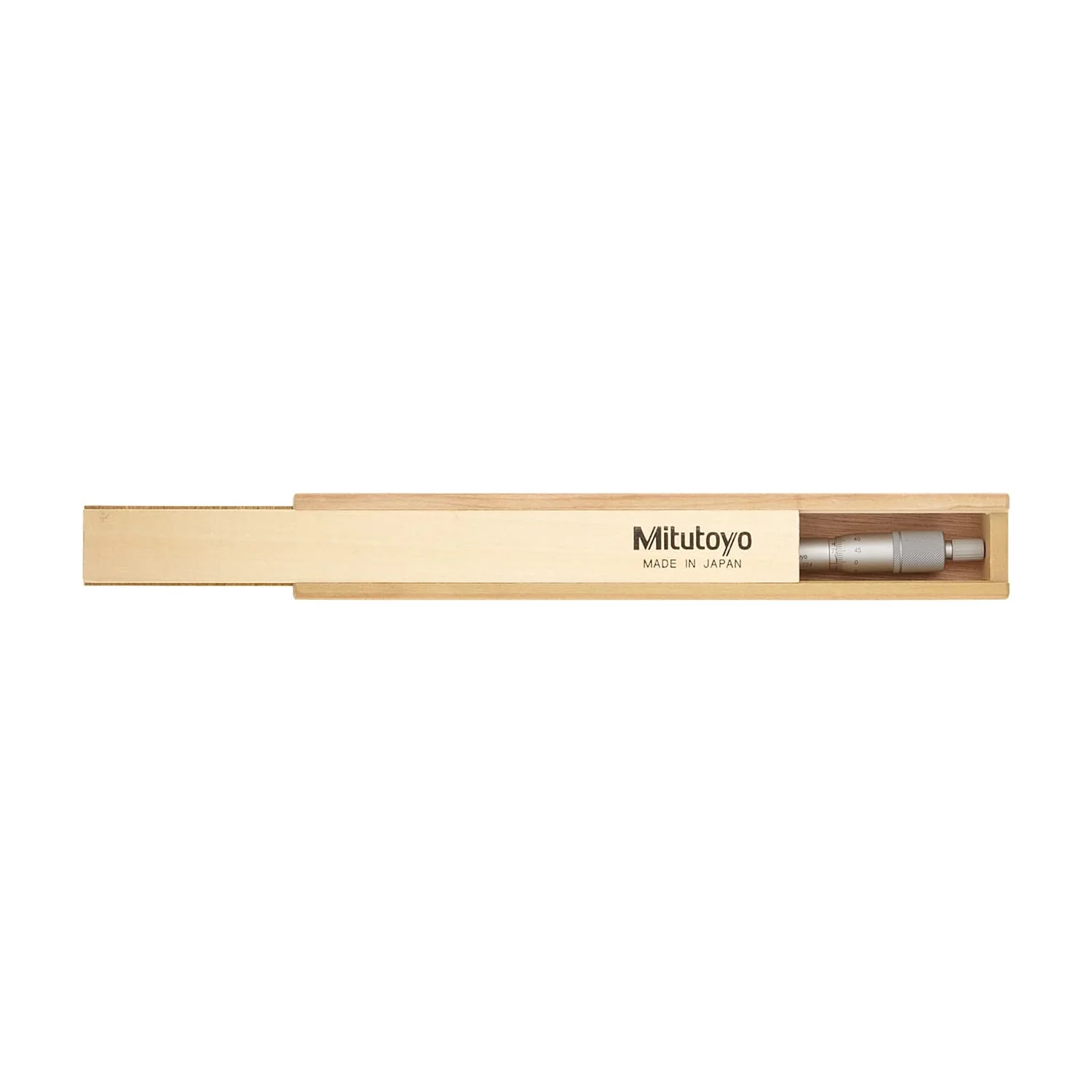

Mitutoyo 50 - 75 mm Non-rotating Spindle Type Groove Micrometer (Dia. 12.7 mm Flange), 146-224

Name: Mitutoyo 50 - 75 mm Non-rotating Spindle Type Groove Micrometer (Dia. 12.7 mm Flange), 146-224
Brand: Mitutoyo
SKU: ME.MI.GR.00004
Price: 21488 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all Mitutoyo

SKU: ME.MI.GR.00004

Model: 146-224

Roll over image to zoom zoom_in

Visit Mitutoyo Store keyboard_double_arrow_right

Key Features

Weight: 165 Grams
Product Type: Groove Micrometer
Range (mm): 50 - 75 mm
Range Inside: 51.5 - 76.5 mm

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

₹25355.84 (Incl. of all taxes)

₹21488+ ₹3867.84 GST (18%)

MRP ₹28650

SAVE 25%

Dispatch: 7 Business Days

Items in Pack: 1 Pcs

HSN Code: 90173010

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Flanged spindle for measuring width, depth and location of grooves inside/ outside bores and tubes.
Provided with two types of graduations for inside and outside measurements.
Non-rotating spindle type has two-directional ratchet stop.

Package Content:

1x Groove Micrometer
1x Spanner

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKU	ME.MI.GR.00004
Product Type	Groove Micrometer
Model No	146-224
Type of Product	Groove Micrometer
Range (mm)	50 - 75 mm
Range Inside	51.5 - 76.5 mm
Graduation	0.01 mm
Flange	Ø12.7 mm
Measuring Force	5 - 10N
Measuring Spindle	Spindle Pitch 0.5 mm
Parallelism	10 µm
Scale	Thimble & Sleeve Satin Chrome Finish, Ø18 mm
