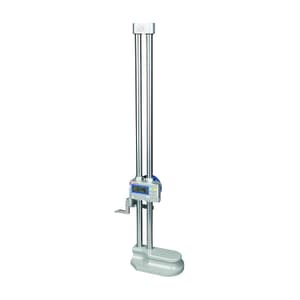

Mitutoyo 600 mm / 24 inch Double Column Digital Height Gauge, 192-672-10
Roll over image to zoom zoom_in
- Weight: 8.3 Kg
- Product Type: Height Gauge
- Range (mm): 0 - 600 mm
- Range (Inches): 0 - 24 inch
- Digital Step: 0.0005/0.0002" or 0.01/0.005 mm
- Accuracy: ±0.0015 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹110501.1 (Incl. of all taxes)
₹93645+ ₹16856.1 GST (18%)
MRP ₹124860
SAVE 25%
7 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Highly versatile multi-function type
- Its double-column structure ensures high measuring accuracy.
- Carbide-tipped scriber provided.
- Large character height of 11 mm provides good readability.
- Rigid construction ensures repeatable measurement.
- Coarse/fine feed switching.
- Bi-directional touch-signal probe is an optional accessory. It can quickly and accurately measure steps, inside width and outside width.
- With SPC data output.
- Two preset reference heights
Functions:
- ABS / INC (INC ZERO)
- DATA (output with cable) / HOLD (display value)
- Low voltage alarm
- mm / inch switching
- ON/OFF
- PRESET (2 values)
- Stylus tip diameter compensation
- Touch-trigger probe
- ±SWITCHING
Package Content:
- 1x Digital Height Gauge
- 1x Carbide tipped scriber
- 1x Scriber clamp
- 1x SR44 battery
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.HE.00138 |
|---|---|
| Product Type | Height Gauge |
| Model No | 192-672-10 |
| Type of Product | Digimatic Height Gauge |
| Range (mm) | 0 - 600 mm |
| Range (Inches) | 0 - 24 inch |
| Digital Step | 0.0005/0.0002" or 0.01/0.005 mm |
| Accuracy | ±0.0015 inch |
| Maximum Permissible Error J MPE | ±0.04 mm / 0.0015 inch |
| Max. Permissible Error E MPE | ±0.0015 inch / ±0.04 mm |
| Max. response speed | 500 mm/s |
| Power Supply | 1x Battery SR-44 |
| Probe Connector | Yes |
| Battery life | Approx. 3500 hours |
