• Three independent controllable channels
• Low ripples / low noise
• Up to 100 group timers
• Multi-working mode: individual, parallel and series
• Over-voltage / Over-current protection
• Data-logging function: Could record the output voltage and current and display recorded data in chart
• Auto-cooling system
• 4 inch high resolution (480 × 320 pixels) LCD

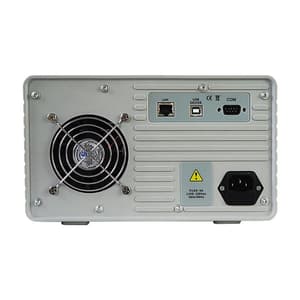

• Multi-CI: USB, RS232 and LAN
• SCPI and LabVIEW are supported

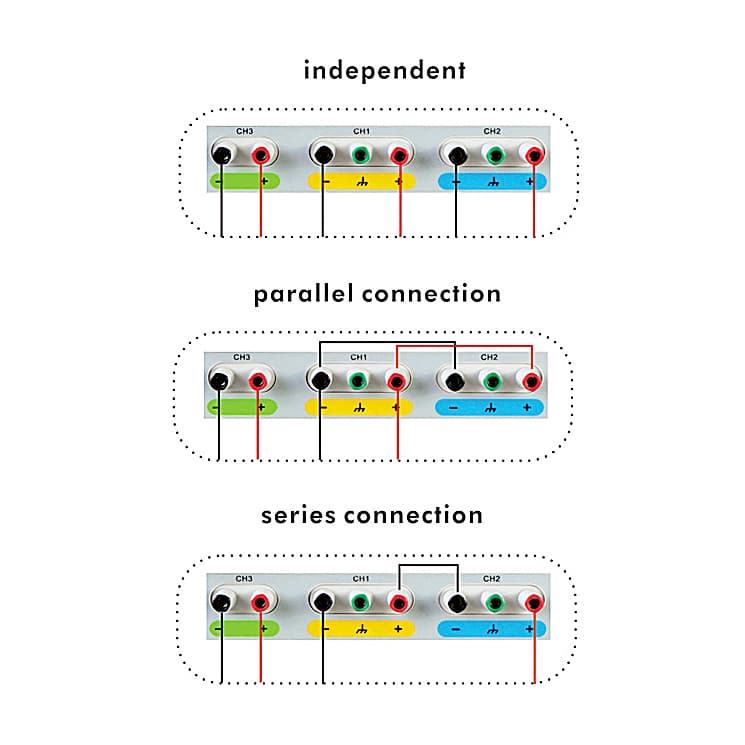

Triple Output: 3 independent channels function as 3 power supply unit; via parallel / series connection, the power output range of 1 channel could be wider.

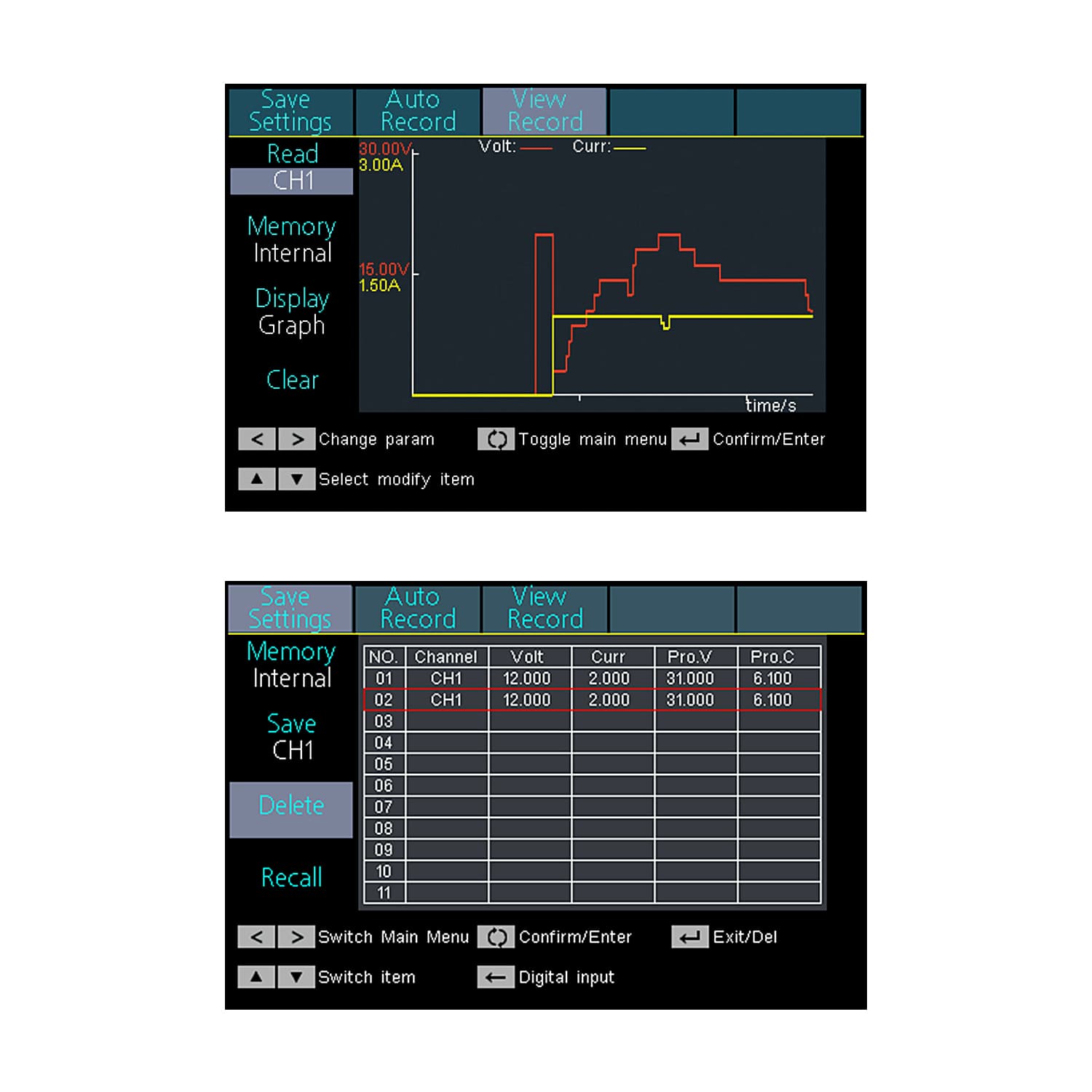

Creative Data Recording Function to monitor the changing status of powering system, displaying recorded data in chart. E Low Ripples / Low Noise

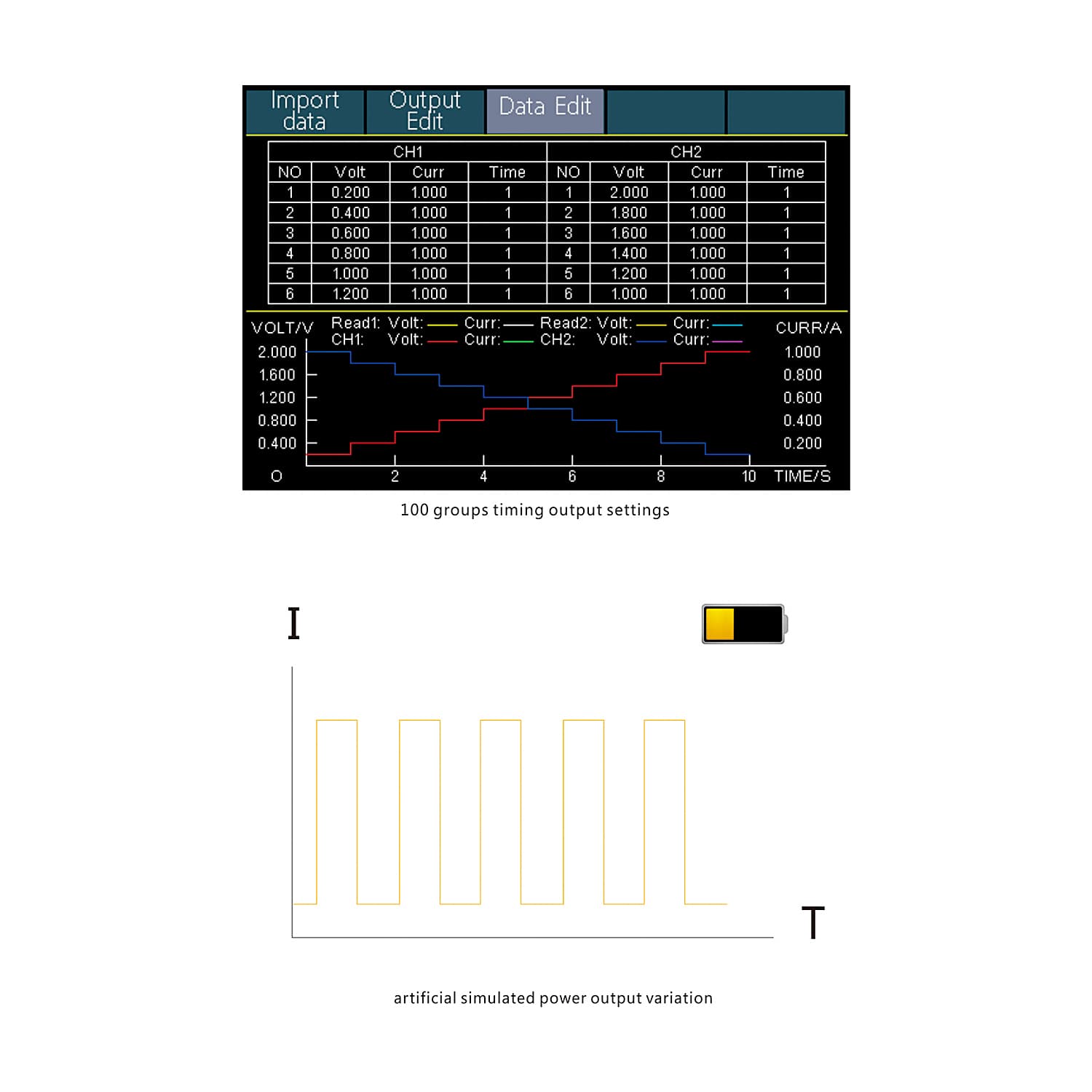

Timing Output Support 100 groups timing output settings, the power output curve could be adjusted via PC, or device itself. And applicable to artificial simulated power output variation.

CV / CC Auto-switch Along with load varies, the power output auto-switches between CV / CC. Give an operation example, in the circumstance you set a voltage of 10V at a current of 1A, when actual current not larger than 1A, the power supply unit works under CV status, the power output alters with load accordingly; whereas when actual current larger than 1A, the power supply unit will limit the current automatically, and switch into CC mode, then the power output alters with load accordingly. CV / CC auto-switch fulfills within power supply unit, no human intervention needed.

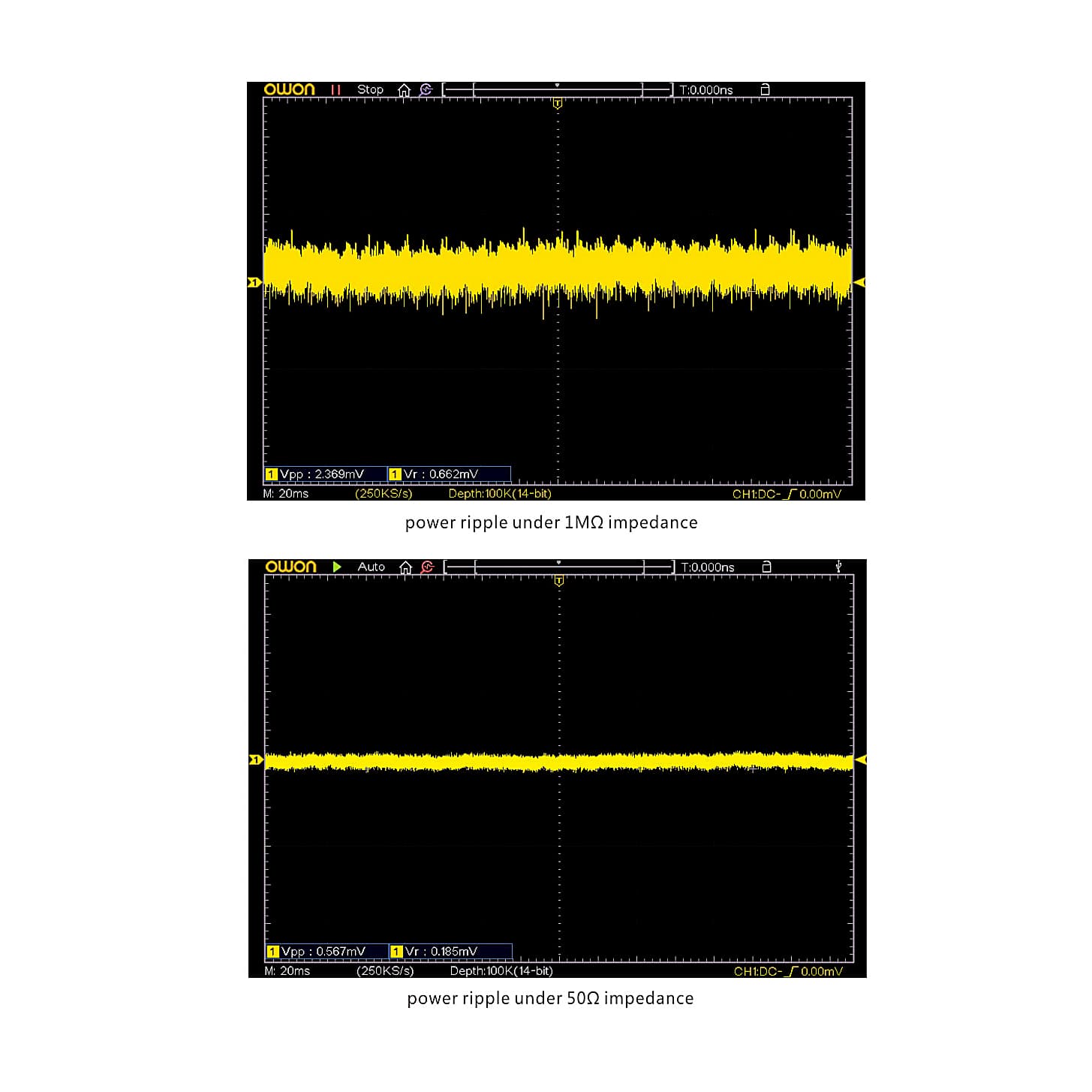

Low Ripples / Low Noise OWON ODP features super- low ripples, and super- low noise, which causes almost no influences to circuit test.

Technical Data:

Load Regulation	Voltage	≤0.01% + 3mV
	Current	≤0.01% + 3mA
Line Regulation	Voltage	≤0.01% + 3mV
	Current	≤0.01% + 3mA
Settings Resolution	Voltage	1mV
	Current	1mA
Read Back Resolution	Voltage	1mV
	Current	1mA
Settings Accuracy (25°C ± 5°C) (within 12 months)	Voltage	≤0.03% + 10mV
	Current	≤0.1% + 8mA
Read Back Accuracy (25°C ± 5°C)	Voltage	≤0.03% + 10mV
	Current	≤0.1% + 8mA
Noise & Ripple (20Hz - 20MHz)	Voltage (Vp-p)	≤4mVp-p
	Voltage (rms)	≤1mVrms
	Current (rms)	≤5mArms
Output Temperature Coefficient (0°C - 40°C)	Voltage	≤0.03% + 10mV
	Current	≤0.1% + 5mA
Read Back Temperature Coefficient	Voltage	≤0.03% + 10mV
	Current	≤0.1% + 5mA
Parallel Settings Accuracy	Voltage	≤0.02% + 5mV
	Current	≤0.1% + 30mA

Package Content:

• Programmable DC Power Supply
• Power Cord
• CD Rom
• Quick Guide
• USB Cable
• Fuse
• Test Leads (Optional)
