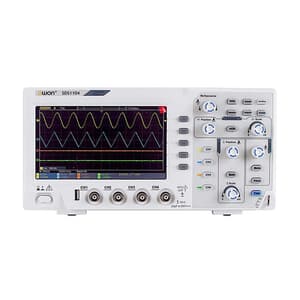

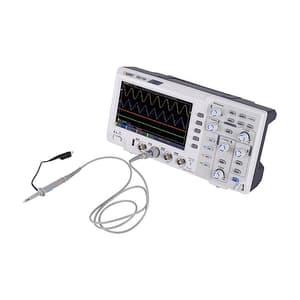

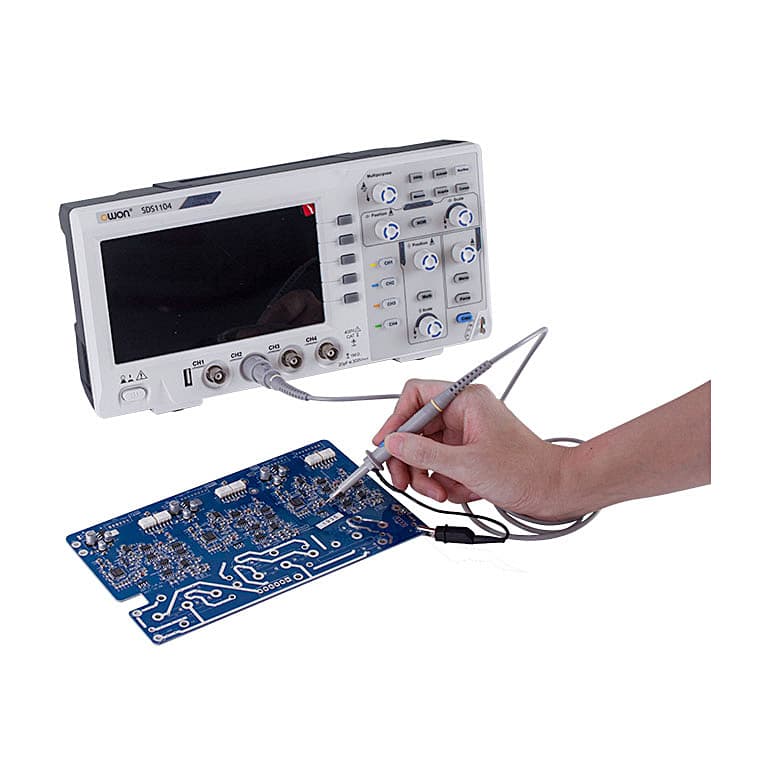

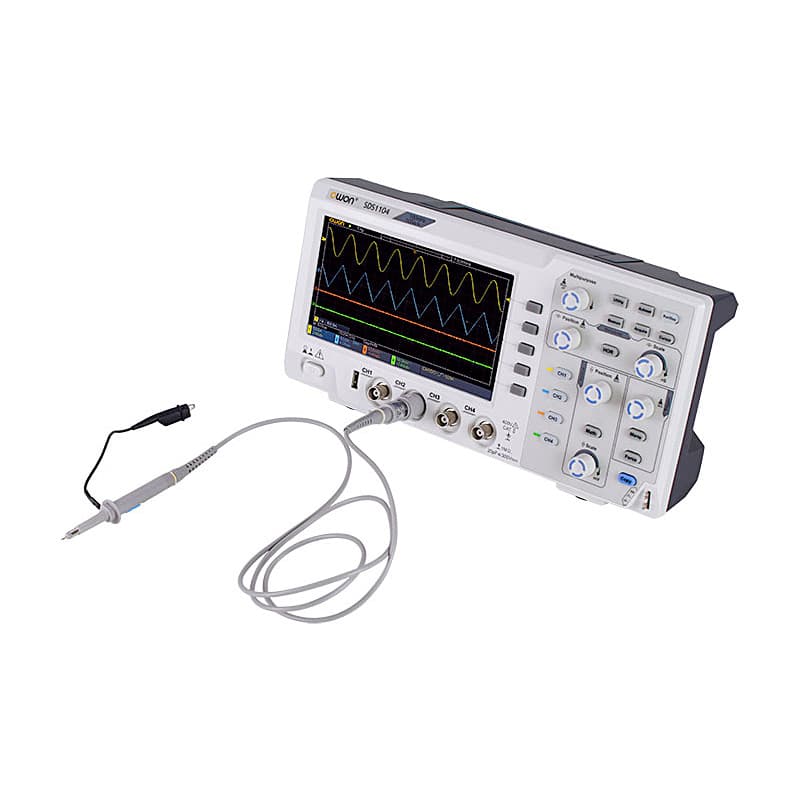

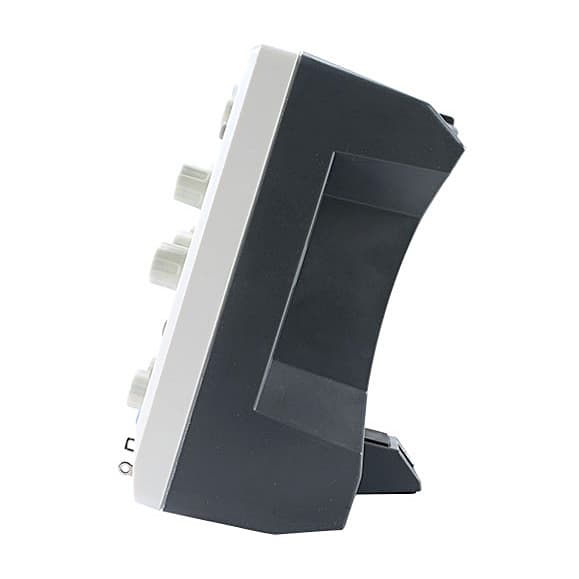

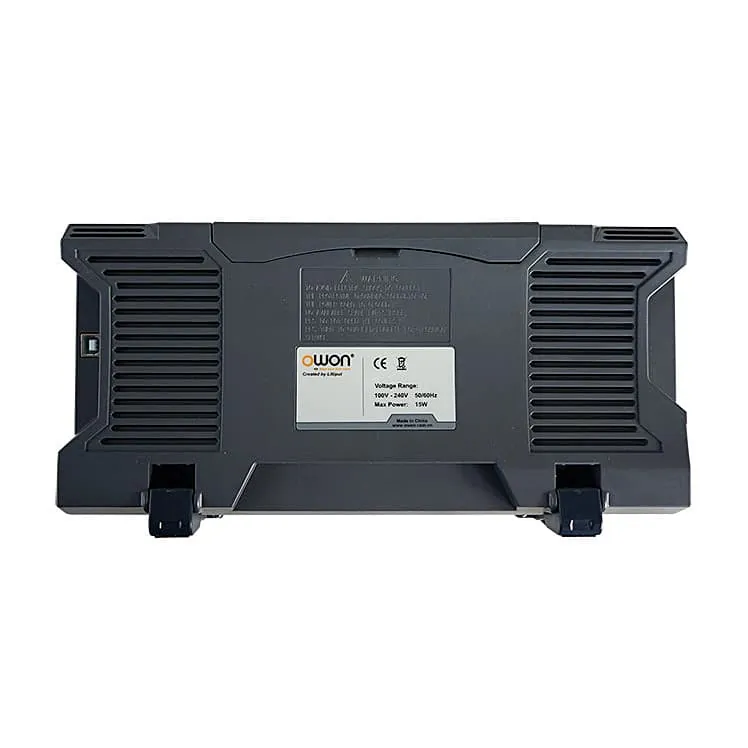

Owon 100MHz / 1GS/s Four Channel Economical Type Digital Storage Oscilloscope, SDS 1104
Roll over image to zoom zoom_in
- Weight: 1.1 Kg
- Product Type: Oscilloscopes
- Bandwidth: 100 MHz
- No. of Channels: Four Channel
- Sample Rate: 1GS/s
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹40155.4 (Incl. of all taxes)
₹34030+ ₹6125.4 GST (18%)
MRP ₹41500
SAVE 18%
5 Business Days
1 Set
903020
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

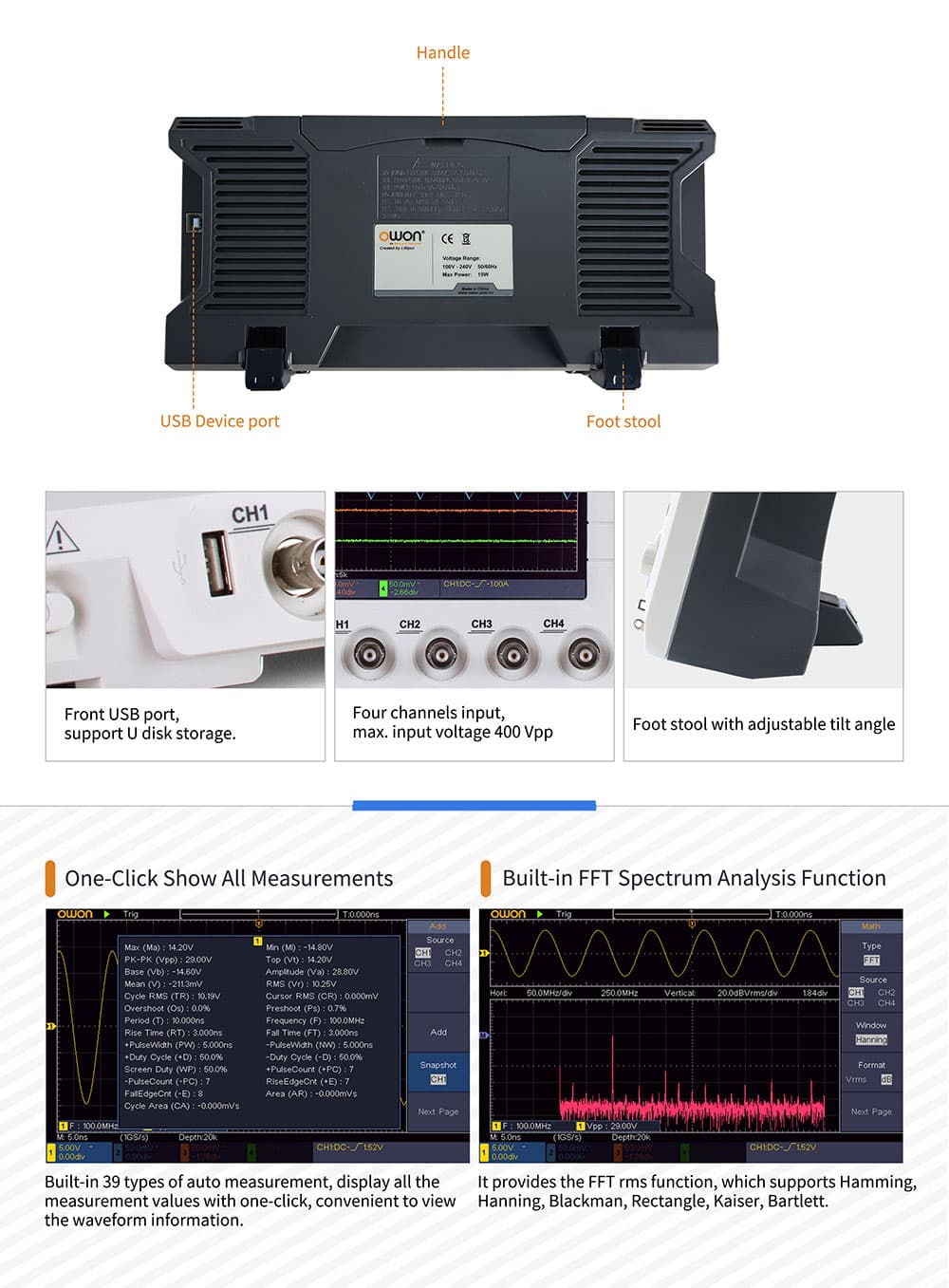

Automatic Measurement: Vmax, Vmin, Vpp, Vtop, Vbase, Vamp, Vavg, Vrms, Cycle RMS, Cursor RMS, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty Cycle, -Duty Cycle, Screen Duty, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Delay AB , Delay AB, Phase AB, Phase AB, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, Cycle Area.

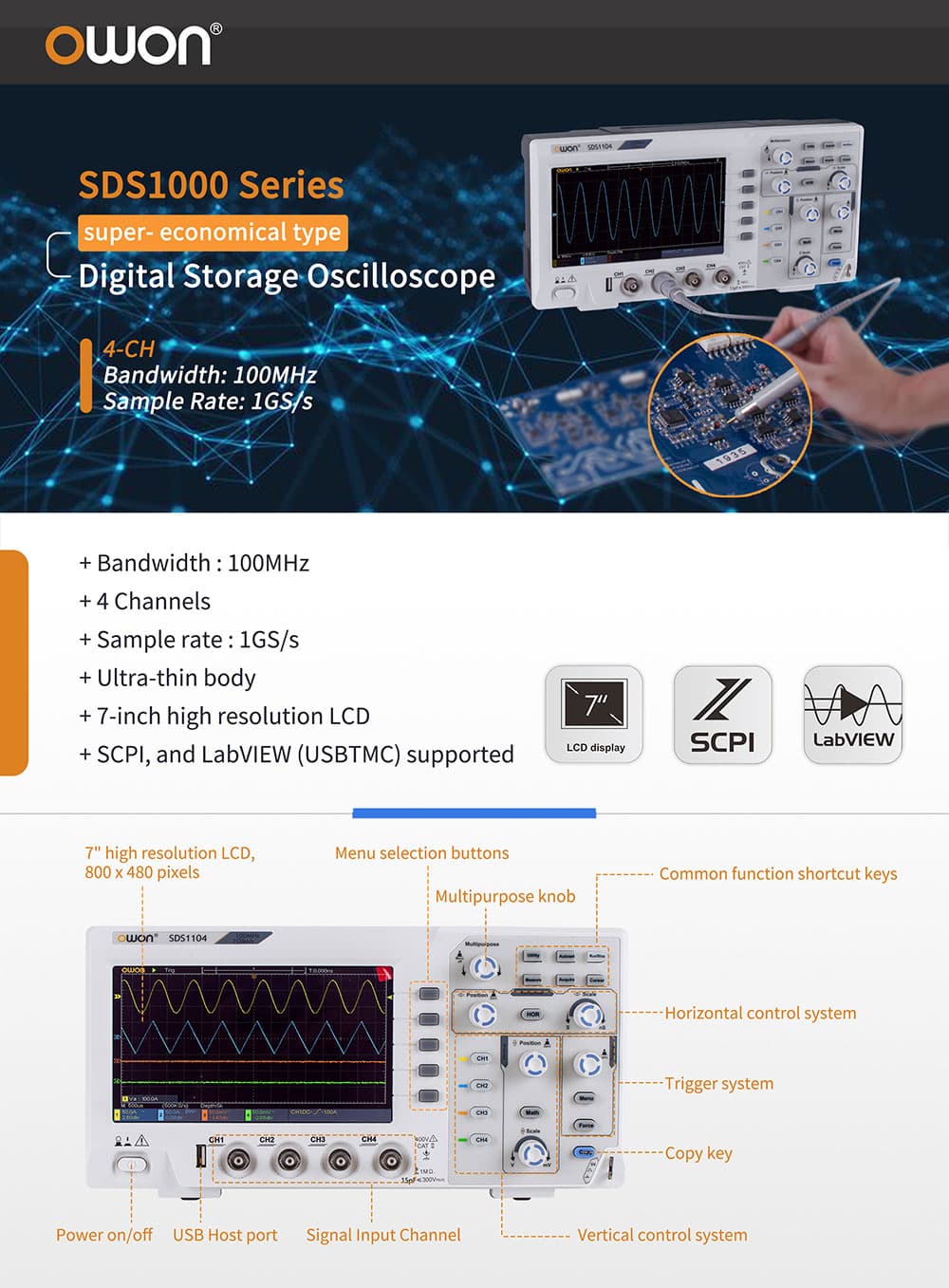

- Ultra-thin body.
- 7 inch high resolution LCD.
- SCPI, and Labview supported.
 |
 |
 |
 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.OS.00018 |
|---|---|
| Product Type | Oscilloscopes |
| Model No | SDS1104 |
| Bandwidth | 100 MHz |
| No. of Channels | Four Channel |
| Sample Rate | 1GS/s |
| Record Length | 20K |
| Power Consumption | <15W |
| Frequency Counter | Available |
| Trigger Type | Edge, Video |
| Waveform Storage | 16 Waveforms |

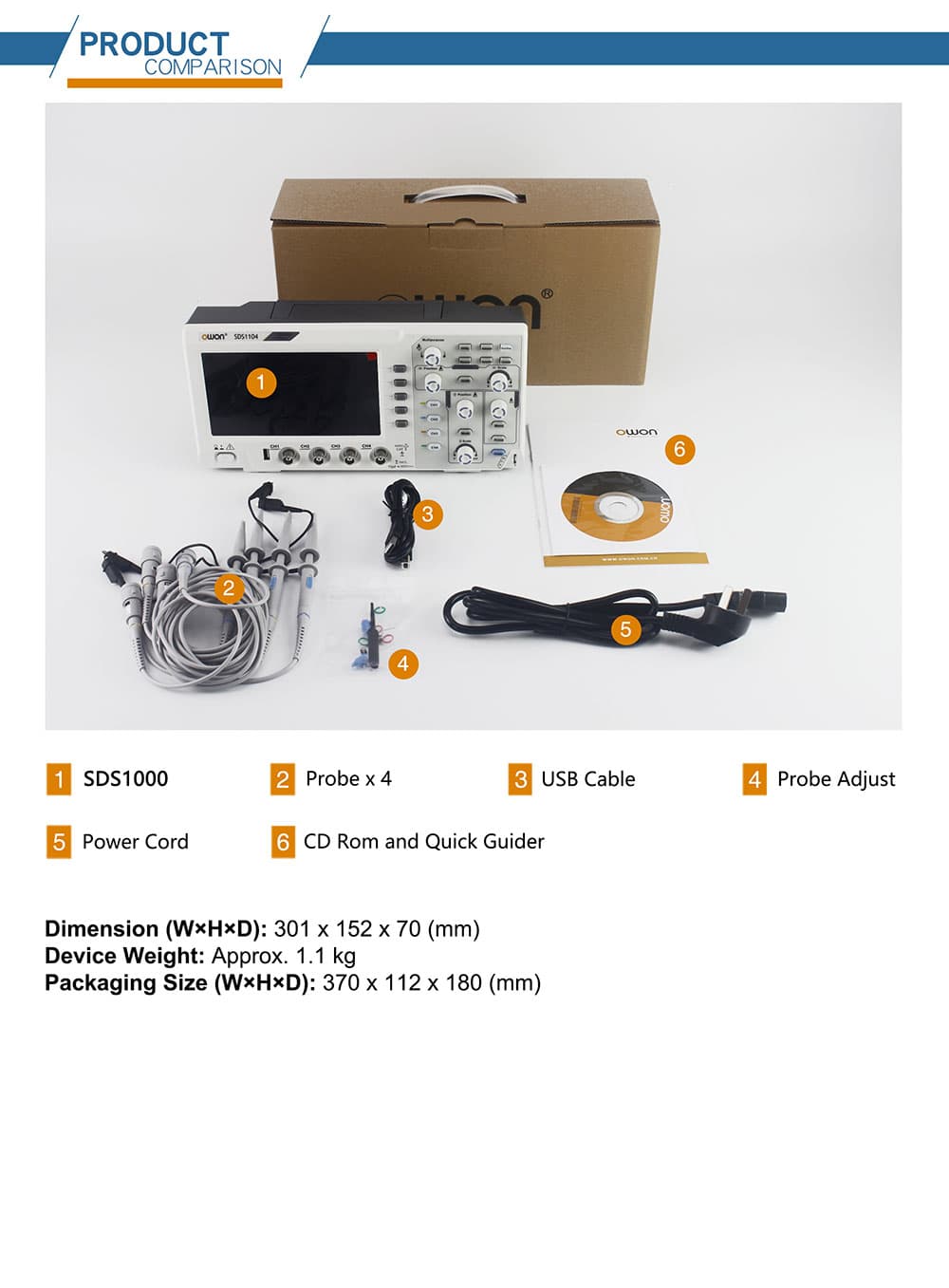

| Dimension (W x H x D) | 301 x 152 x 70 mm |
| Input Coupling | DC, AC , and GND |

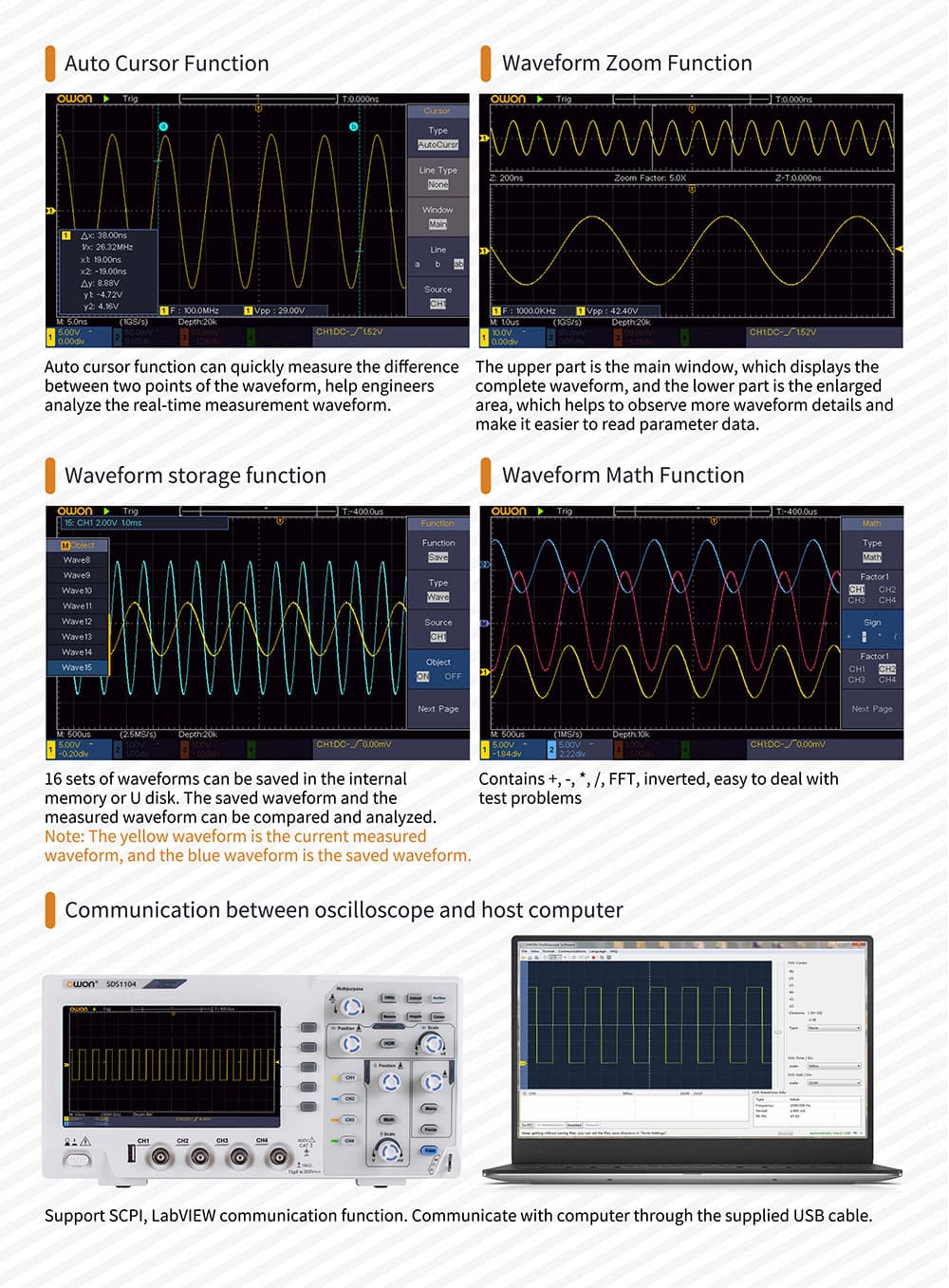

| Waveform Math | +, -, x, ÷, invert, FFT |
| Probe Attenuation Factor | 1X, 10X, 100X, 1000X |
| Communication Interface | USB host, USB device |
| Trigger Mode | Auto, Normal, and Single |
| Vertical Sensitivity | 5mV/div - 5V/div (at input) |
| Display | 7" Color LCD, 800 x 480 Pixels |
| Power Supply | 100V - 240V AC, 50/60Hz, CAT II |
| Horizontal Scale (s/div) | 2ns/Div - 1000s/Div, Step by 1-2-5 |
| Vertical Resolution (A/D) | 8 bits (2 Channels Simultaneously) |
| Cursor Measurement | ?V, ?T between cursors, ?V and ?T between cursors, Auto-cursors |
