Owon 9 KHz - 1.5 GHz / 1Hz Spectrum Analyzer With Tracking Generator Kit, XSA 1015-TG

Shop all OWON

SKU: ME.EL.SP.00001

Model: XSA1015-TG

Roll over image to zoom zoom_in
  1. Owon 9 KHz - 1.5 GHz / 1Hz Spectrum Analyzer With Tracking Generator Kit, XSA 1015-TG
  2. Owon 9 KHz - 1.5 GHz / 1Hz Spectrum Analyzer With Tracking Generator Kit, XSA 1015-TG
  3. Owon 9 KHz - 1.5 GHz / 1Hz Spectrum Analyzer With Tracking Generator Kit, XSA 1015-TG
Visit OWON Store keyboard_double_arrow_right
  • Product Type: Spectrum Analysers
  • Frequency Range: 9 KHz - 1.5 GHz
  • Frequency Resolution: 1Hz
  • Aging Rate: <1ppm/year
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹113983.28 (Incl. of all taxes)

₹96596+ ₹17387.28 GST (18%)

MRP ₹117800

SAVE 18%

5 Business Days

1 Set

903020

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The OWON XSA1015-TG has a noise level of -130 dBm/Hz and -150 dBm/Hz when the built-in pre-amplifier is switched on. The tracking generator is capable of producing an output frequency of 100 kHz to 1.5 Ghz. Furthermore, the power of this signal is adjustable from -30 dBm to 0 dBm. 1.5GHz., Tracking Generator, Coloured LCD 10.4", VGA, PhoneJack, USB+Software.


What's Included In This Package:

  • Power Cord
  • CD-Rom
  • Manual


Features:

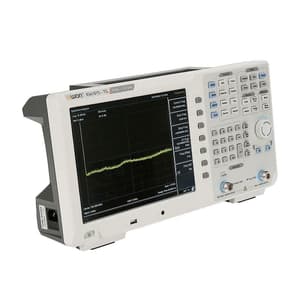

The OWON XSA1015-TG spectrum analyser has a frequency range up to 1.5GHz and has a tracking generator. The XSA1015-TG has a large 10.4" LCD display and is equipped with advanced measurement functions.

XSA1015TG Series Spectrum Analyzer

  • Frequency Range from 9 kHz up to 1.5 GHz
  • 138dBm Displayed Average Noise Level
  • Phase Noise -98dBc/Hz @1Gz and offset at 10KHz
  • Total Amplitude Accuracy <1.5dB
  • 10Hz Minimum Resolution Bandwidth (RBW)
  • EMI Pre-compliance Test Kit, optional EMC test software
  • Standard Pass/Fail on-site test alert ability
  • Up to 1.5 GHz Tracking Generator Kit
  • 10.4 inches display

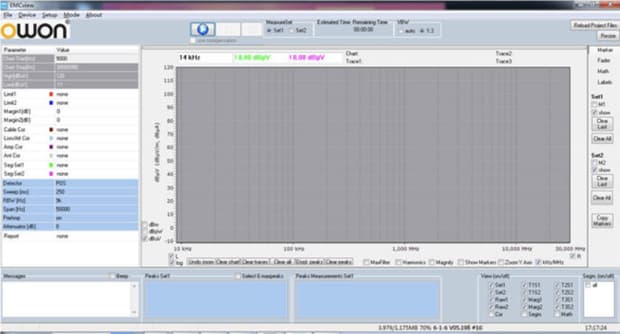

Provide EMC test function

With the more then 200 mainstream Built-in EMC test standards and regulations templates. The user selects the corresponding template, and the software automatically sets the spectrum analyzer and records the test data. The data and regulations can be compared on the same screen. Users can also customize regulations for comparative analysis.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.SP.00001
Product TypeSpectrum Analysers
Model NoXSA1015-TG
Frequency Range 9 KHz - 1.5 GHz
Frequency Resolution 1Hz
Aging Rate <1ppm/year
Resolution Bandwidth(-6db) 200Hz,9kHz,120KHz
Video Bandwidth(-3db) 10Hz-3MHz,1-3-10 step
100kHz-1MHz -150dBm(typ.)
1MHz-5MHz -150dBm(typ.)
5MHz-1.5GHz -148dBm(typ.)
Level Measurement Uncertainty < 1.5db(nom.)
TG Frequency Range 100kHz-1.5GHz
TG Output Level Range -30dBm-0dbm
SSB Phase Noise(fc=1GHz) <-85dbc/Hz@10kHz offset / <-100dBc/Hz@100kHz offset(typ.)
Resolution Bandwidth(-3db) 10Hz -500kHz, 1-10 step; 1MHz-3MHz
Units of Level Axis dBm, dBpW, dBµW, W, dBµV, dBmV,V
Trace Detectors Position-peak, negative-peak, sample, normal, RMS
Trace Functions Clear write, max hold, min hold, view, blank, average
Displayed Average Noise Level(DANL) PA on, RBW=VBW=100Hz, sample detector, trace average = 50, tracking generator off, normalized to 1Hz
TG Output Level Resolution 1dB

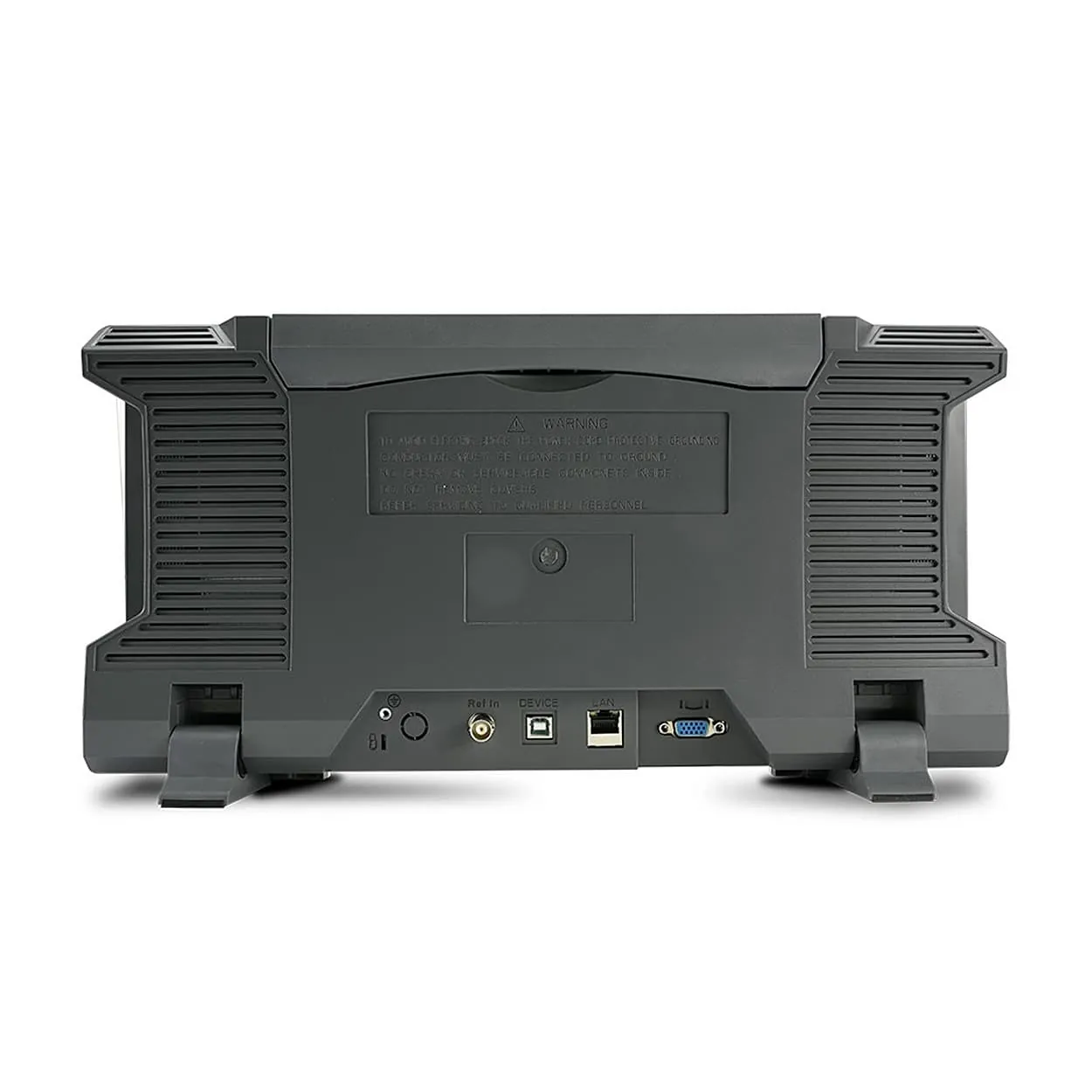

Interfaces LAN, USB, VGA, phone jack
