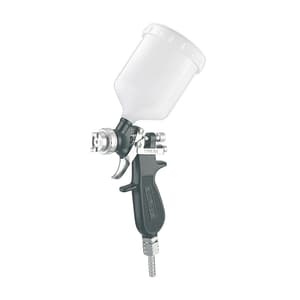

Pilot 0.34 Ltr High Pressure Conventional Spray Gun with Plastic Top Feed Cup, Type-64N
Roll over the image to zoom in
Key Features
- Product Type: Spray Gun
- Weight: 357 g
- Application: High Pressure
- Cup Capacity: 0.34 Ltr
- Required Pressure: 2.1-2.8 kgs/Sq.cm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,168 (Incl. of all taxes)
₹1,837 + ₹331 GST (18%)
MRP was MRP ₹2,355
Save 22%
2 Business Days
1
84242000
Download Product LeafletNot available
Download Pilot CatalogueNot available
Download Pilot CatalogueNot available
Highlights
The Legacy Series consists of PILOT’s Iconic range of Spray Guns which typically operate at higher air pressures and are used for coating any type of surface/object. High air pressure results in super fine atomization resulting in a smoother & high quality spray finish.
- Iconic design & performance.
- Symmetric & durable gravity cup.
- Lightweight & less operator fatigue.

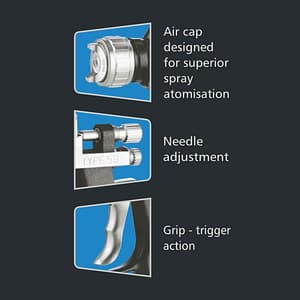

- Rotatable air cap facilitating round & fan flow pattern.
Areas of Application:
 |
Handicrafts |
 |
Electrical Equipment |
 |
Automobiles |
 |
Furniture |
 |
Sports Goods |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Application | High Pressure |
|---|---|
| Cup Capacity | 0.34 Ltr |
| Gun Distance From Workpiece | 228.6 mm / 9 inch |
| Fluid Nozzle Orifice Dia. | 1.6 mm |
| Required Pressure | 2.1-2.8 kgs/Sq.cm |
| Material Output | 300 cc/min |
| Max. Pattern Width | 180 mm |
| Min. Air-Compressor | 1 HP |
| Air Consumption of Rated Pressure | 115-170 lit/min (4-6 c.f.m) |
