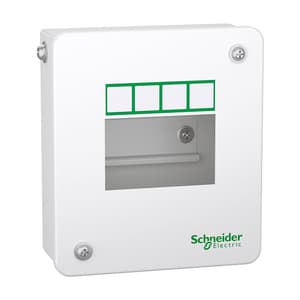

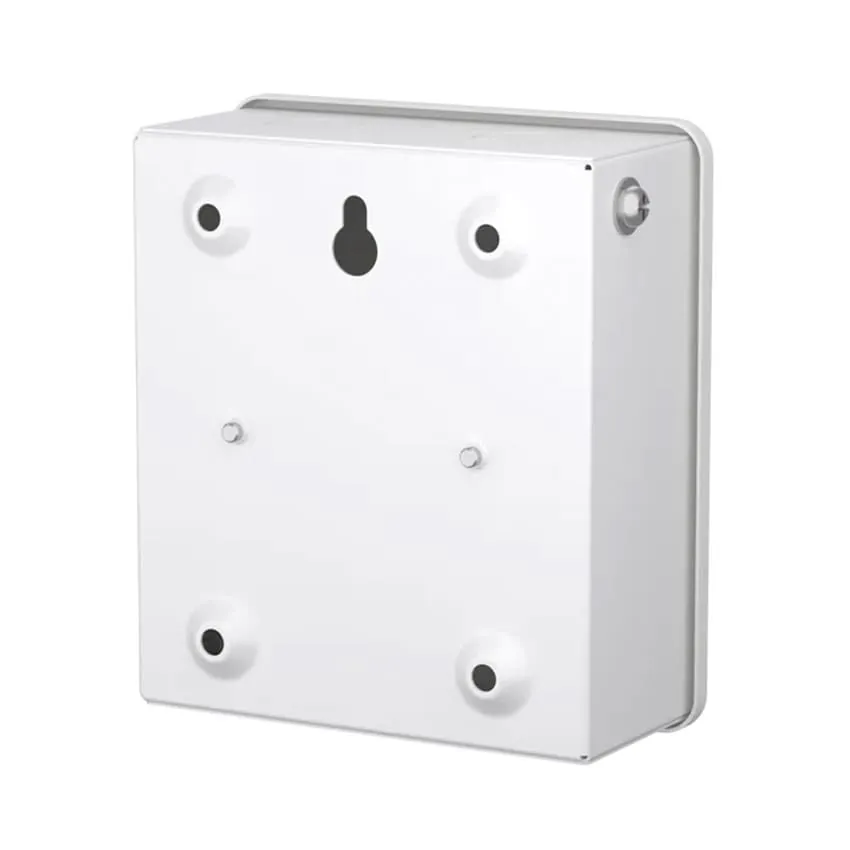

This Acti9 distribution board comes with single metal door for door opening. This distribution board gives total flexibility to mount any type of modular devices as per load requirement. It allows the mounting of modular devices on 1 row of 4 modules of 18mm (4 modules total). The dimensions are (W) 138mm x (H) 156mm x (D) 65mm.

The color of the distribution board is white (RAL 9003). The degree of protection is IP30, IK08 with the single metal door. This distribution board is compliant with IS 8623-1, IS 8623-3 and IEC 61439-3 standards.

Complementary

Product compatibility	Modular device
Enclosure mounting	Surface Flush
Number of horizontal rows	1
Number of 18 mm modules per row	4
Total number of 18 mm modules	4
Enclosure/cubicle description	Single door enclosure
Enclosure material	Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA front plate
Height	156 mm external:
Width	138 mm external:
Depth	65 mm external:

Environment

IP degree of protection	IP30
IK degree of protection	IK08
Standards	IS 8623-1 IS 8623-3 IEC 61439-3
Product certifications	ERDA CPRI

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7 cm
Package 1 Width	16 cm
Package 1 Length	14.2 cm
Package 1 Weight	1.07 kg
