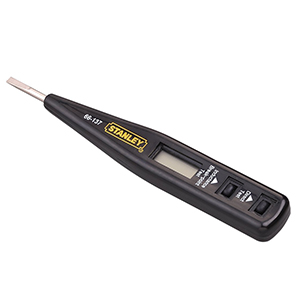

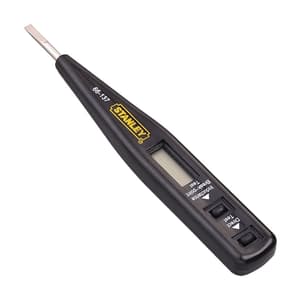

Stanley Multi Tester is an electronic device used to test low and extra-low voltage electrical circuits. It is a must tool to keep handy for every electrician. These Testers are widely utilized in various fields like domestic consumers, commercial and agricultural settings. These Screwdrivers are equipped with the capacity of direct detection of live objects ranging from 12V to 220V AC or DC power.

The Stanley 66-137 model comes with the technically advanced feature of an LED display system associated with rapid testing of voltage indication. These Hand Tools are battery dispensable and that results in absolute worth using for the buyer as it offers economical benefit. The CE-certified multitester is the assurance of safety and trust.

Features & Benefits:

• Direct Detection: 12V - 220V AC/DC live objects through LCD display.When testing DC, please touch the earth with your hand.
• For breakpoint test - find phase line/ground line or breakpoint of phase line and place the tip of the tester, press the "Induction breakpoint test" (you can check the flow of current in an insulated wire from outside).
• If the tester voltage doesn't reach 70% or higher voltage then it will display lower voltage. For example: In a 220V pin/socket, if the current of 154 volts is flowing then the display will show 12, 36, 55, and 110 and not 220V in the LCD screen.
• In rapid induction voltage testing, you can use an induction electrode to test electric objects lower than 12V.CE certification by European commission.

Applications:

• Socket Testing
• Circuit Testing

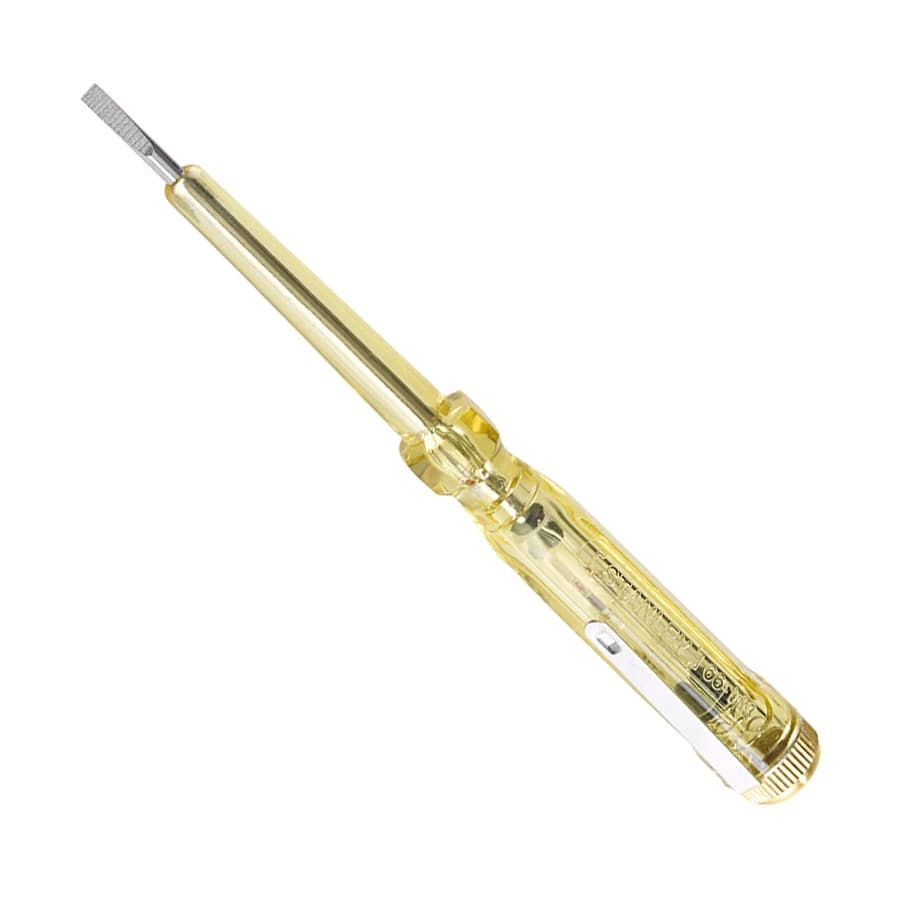

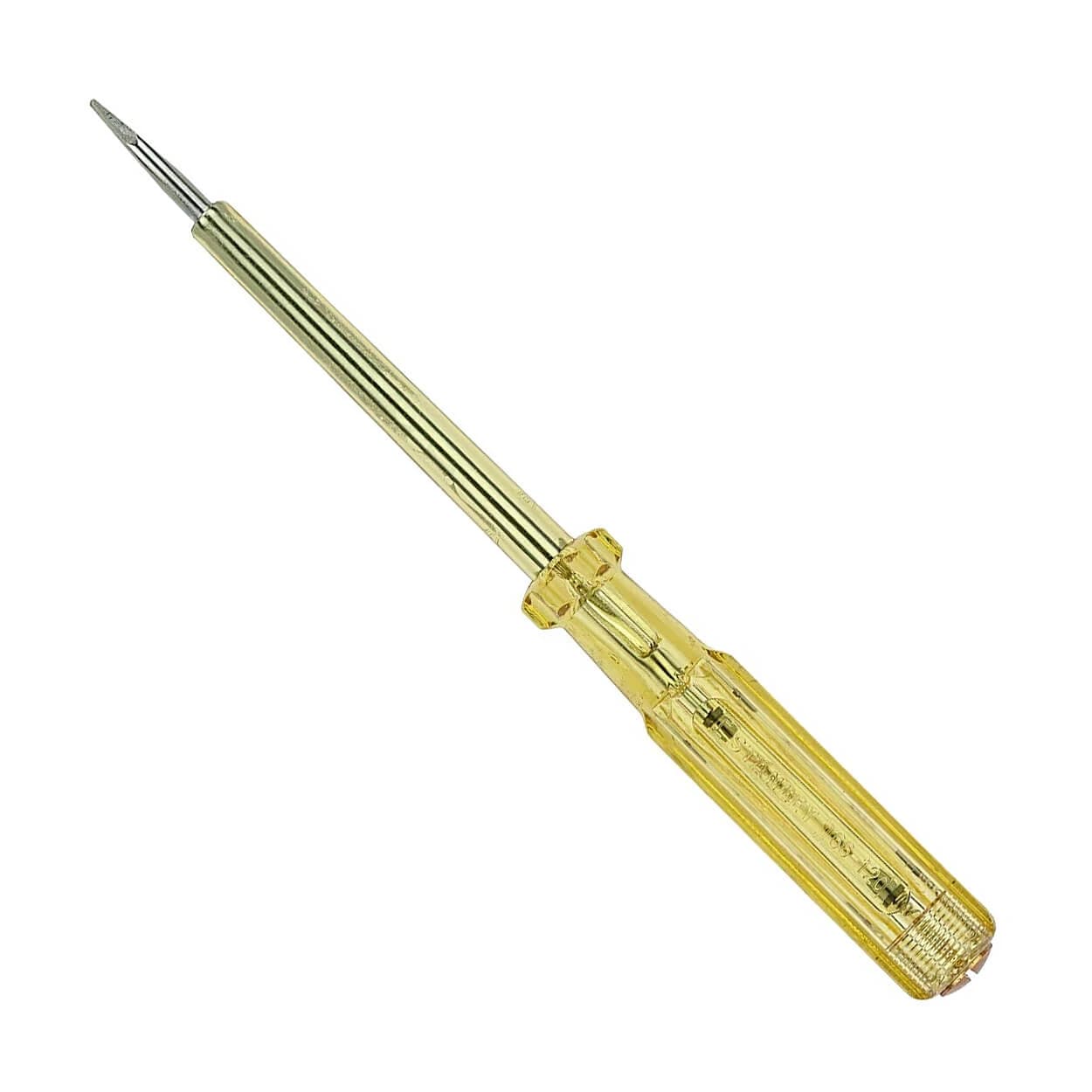

STANLEY Digital Tester Are you still using the Analog tester to check the issues in the switchboard, waiting for the light to blink? It is not only a primitive technology but also doesn’t give you information on the voltage in the circuit. STANLEY tools bring you a tester that not only gives you the current flow but also the voltage flow in the circuit. The LCD display, Direct test, and Inductance test are the key features of this tester. This digital tester also helps you identify the break-point in the circuit. So throw away the old analog tester and embrace this new digital tester. A Basic Tester STANLEY digital tester is a tool for every home. It can be used to check the current flow and break-point in current flow in a circuit. The LCD screen displays the voltage in the circuit.

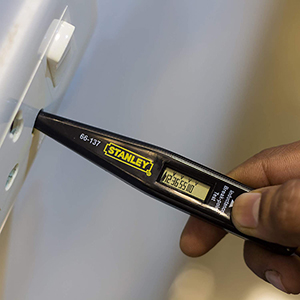

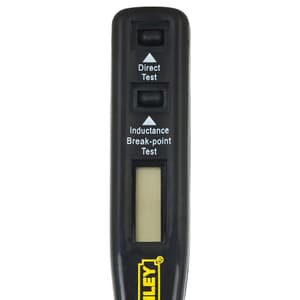

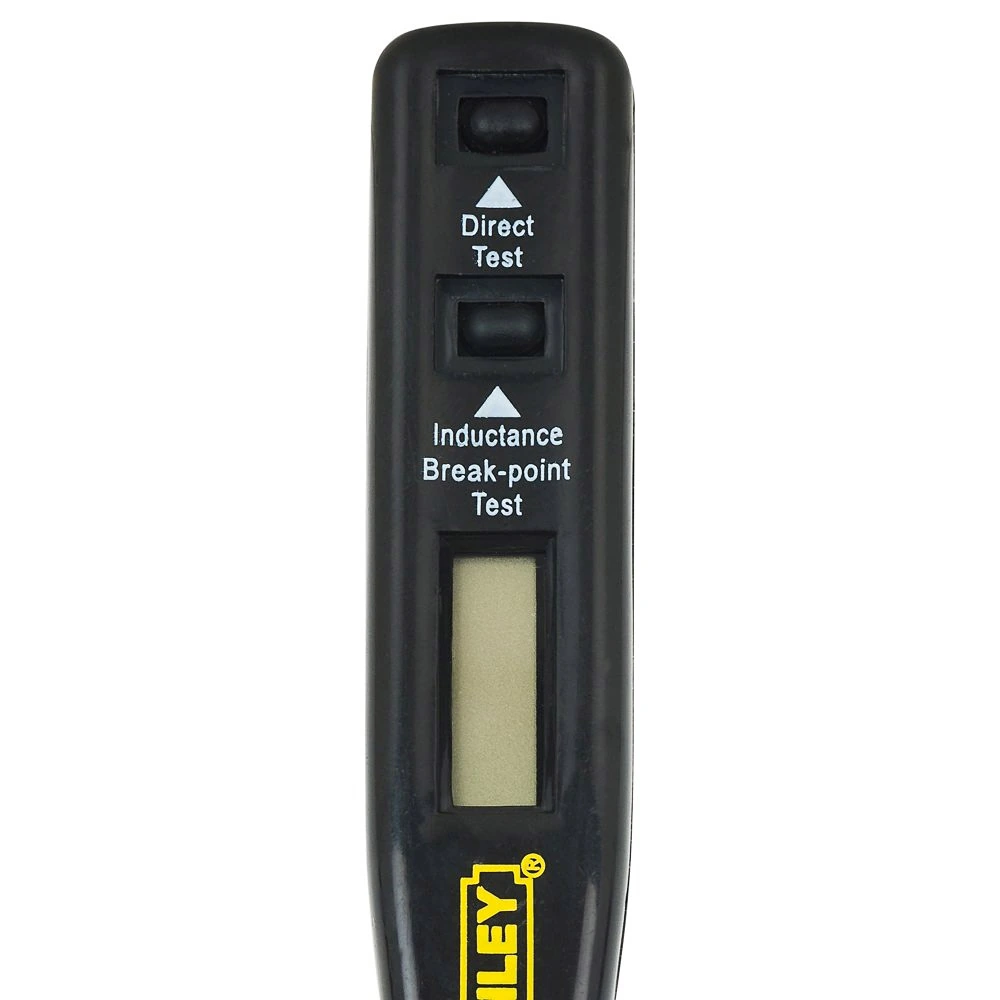

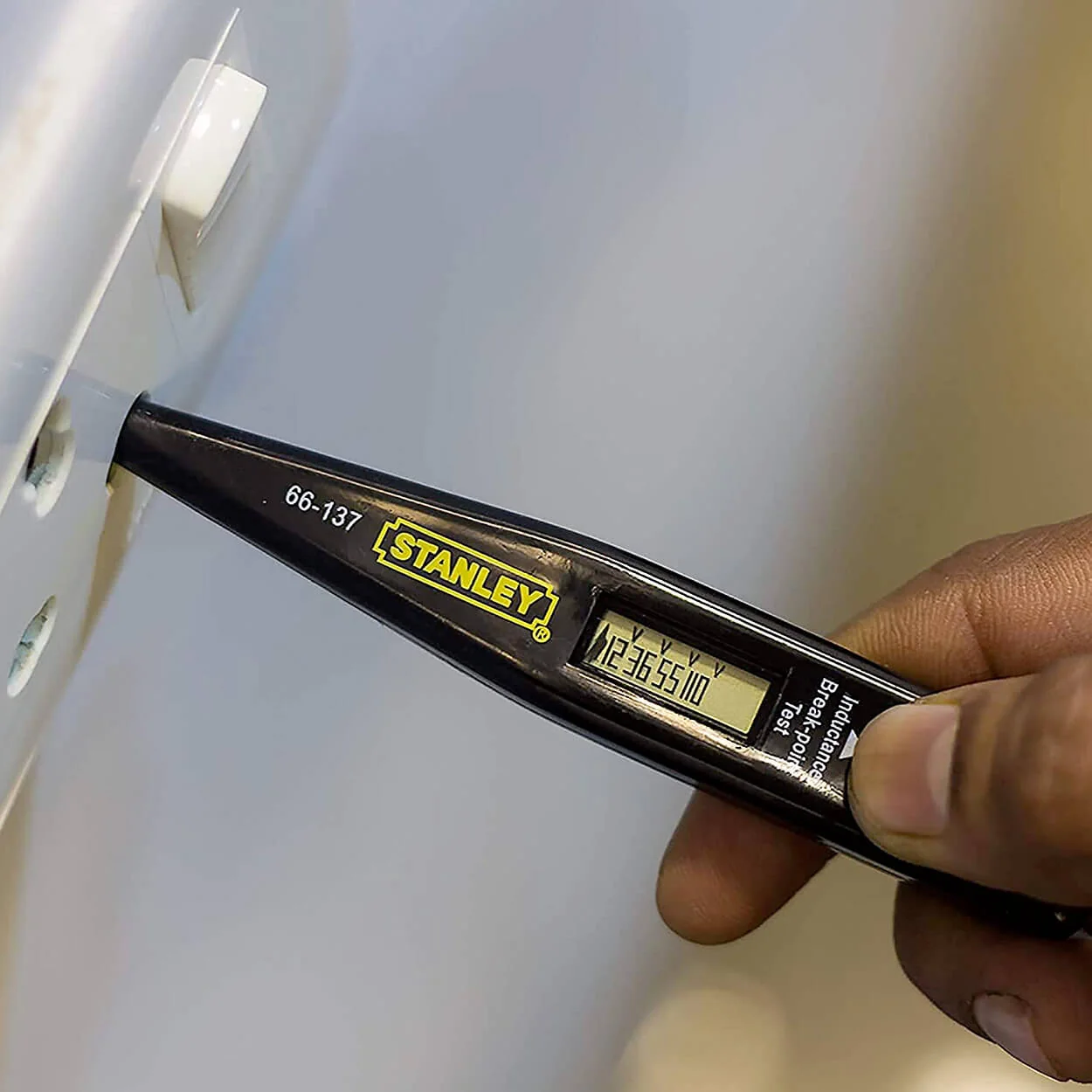

Direct & Inductance Test The Direct & Inductance test are the two main features of this tester. The direct test will provide the details on current and voltage flow. The Inductance test will find the ground line (earth wire) or break point of the phase line. Direct Test: The Direct test helps you determine the current flow and the voltage. In a 220V pin/socket, if the current of 154 volts is flowing, then the display will show 12, 36, 55, and 110 and not 220V on the LCD screen. In the above image, only 12 V or less than 12 V current is flowing in the socket. So any device which requires 220V will not work if plugged into this socket. Inductance Test: You can check if the electric current is flowing in a circuit by placing the tester on top of the wire. This is a safe and easy way to find out if the circuit is active or not. If it's active then it is represented by the induction symbol.

Identifying the Ground Line STANLEY digital tester can also help you find the ground line in the circuit. Keep the tip of the tester 1-5cm from the tested electric line, if an induction marking () is found on the LCD, the tested line is a ground line. LCD Display STANLEY digital tester has an LCD display. The symbol represents the electric current flow. The tester can read voltage up to 220V and highlight 12, 36, 55, 110, and 220 volts. This helps you to determine which type of device to be used based on the device’s operating range voltage.
