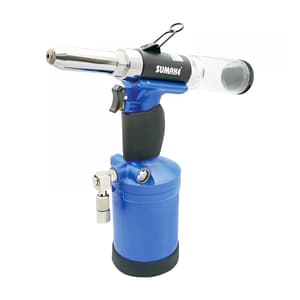

Sumake 1/4 inch Air Hydraulic Blind Riveter (Vacuum Type), ST-66192V
Roll over image to zoom zoom_in
- Weight: 1.95 Kg
- Product Type: Air Hydraulic Riveter
- Working Pressure: 85 ~ 95 psi (5.97 ~ 6.67 kgs/cm²)
- Stroke: 15 mm (0.59")
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹28668.1 (Incl. of all taxes)
₹24295+ ₹4373.1 GST (18%)
3 Business Days
1 Pcs
8467
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Lightweight and ergonomically designed.
- Press lightly trigger for pulling and spinning out.
- Spin-on; pull-up; spin-out action.
- It can be suspended or hand-held.
- Air-hydraulic operation.
- Heavy duty plastic body.
- Bi-directional 360 rotation air hose universal joint.
- Brand-new technology; have low recoil of shockless; can reduce part of tools consume; and the operator is tired.
- Can be connected universal joint and opened or closed in order to reduce the consumption of air easily.
- Safety valve; automatically release the pressure when the pressure is over the set 110 psi to protect from the operator and tool.
Rivet Capacity:
- Standard blind rivet: Ø4.8 - 6.4;
- Blind rivet magnalock/monobolt/oarlock: Ø 4.8 - 6.4
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
SKU | PN.PN.AI.00145 |
---|---|
Product Type | Air Hydraulic Riveter |
Model No | ST66192V |
Working Pressure | 85 ~ 95 psi (5.97 ~ 6.67 kgs/cm²) |
Stroke | 15 mm (0.59") |
Traction Power | 1695 kgs (3740 lbs) |
Air Consumption | 4 CFM (113 l/min) |
Nosepieces | 3/16, 7/32, 1/4 inch (4.8, 5.6, 6.4 mm) |
Height (mm) | 306 mm |
Length of Placing Head | 278.1 mm |
Base Diameter | 88.6 mm |
