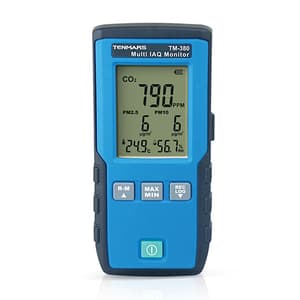

This meter can make 5 measures of air quality once a time, including CO2, PM2.5, PM10, temperature and humidity. The measurement for CO2 is used for the air exchange rate of total heat exchangers or other ventilation fans or systems, The measurement for PM2.5 or PM10 is used for the cleaning capacity of air purifiers and the measurement for temperature and humidity is used to estimate the dehumidification effect of dehumidifiers.

Features:

• 20 logs for manual and automatic recording values
• Real-time measurement of CO2 / PM2.5 / PM10 / Temperature / Humidity.
• °C or °F unit selection.
• Locking function for Maximum value/minimum value/average value.
• Auto-shutdown function and disable auto-shutdown function.
• Adjustment and calibration function (CO2/temperature/humidity).
• CO2/PM2.5/PM10 red backlight alarm.
• Manual record and auto-record.
• Key sound assists to ensure the operation works.
• When the measured value reaches the setting value for alarm, the LCD backlight shines in red and related measurement items flash.
• Red backlight alarm setting function (CO2: 1000PPM / PM2.5: 35µg/m³ / PM10: 75µg/m³)
• 5V micro USB interface for external power supply

Electrical specification:

PM2.5
Sensor	Laser particulate matter sensor
Measuring range	0-500 μg/m3
Accuracy	±8μg :<=50µg/m3  ±10% of reading value:>50µg/m3
Resolution	1
Reaction time	<10seconds



PPM10
Sensor	Laser particulate matter sensor
Measuring range	0-500 μg/m3
Accuracy	±10μg :<=50µg/m3  ±15% of reading value:>50µg/m3
Resolution	1
Reaction time	<10 seconds



CO2
Sensor	Non-Dispersion Infrared(NDIR)
Measuring range	400 to 9999ppm
Accuracy	±70ppm ±3% of readings.  (400-2000ppm)
Resolution	±1ppm
Reaction time	90% during about 2 minutes



Temperature
Sensor	Bandgap temperature sensor
Effective range	-10°C~50°C / 14°F~122°F
Accuracy	±1.0°C/±1.8°F  (Non-charging and   30 minutes after charging)
Resolution	0.1°C / 0.1F  (0~35°C / 32°F~95°F) ;   1°C / 1°F  (Above 100°C /°F or   below -10°C /°F)
Reaction time	About 1 second



Humidity @25°C
Sensor	Capacitive humidity sensor
Effective range	1-99%
Accuracy	±5.0%RH(10~90%);   ±8.0%RH(<10%,>90%) no  condensation, at 25°C
Resolution	0.1%
Reaction time	About 4 seconds

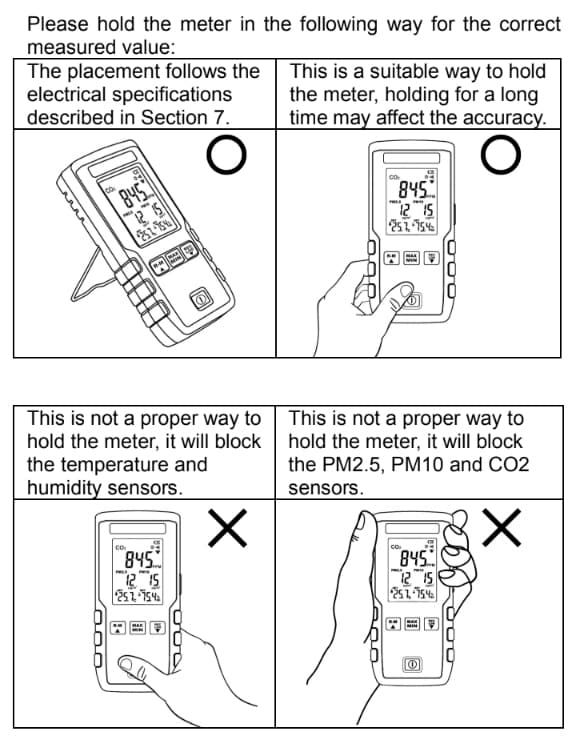

Operation:

Package Content:

• 1x Multi Indoor Air Quality Monitor with a 3.7V Rechargeable lithium battery
• 1x Micro USB cable
• User’s Manual
