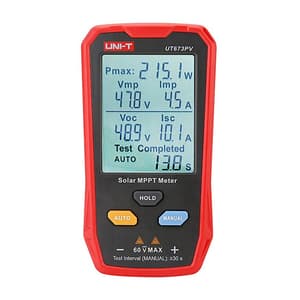

UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current. Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.

Features:

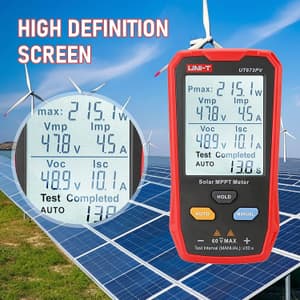

• Large screen and multiple result display
• No batteries needed, powered by the solar panel

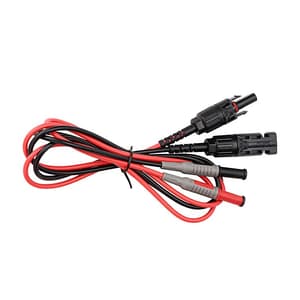

• Equipped with MC4 test lead

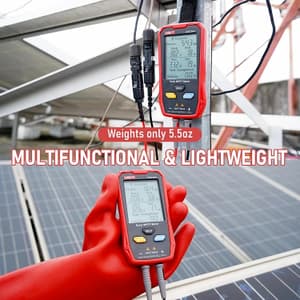

• Portable and convenient
• Reverse polarity connect Protection
• Over-voltage & Current protection
• Over-temperature protection
• Overpower protection
• Manual/Auto MPPT test
• Data hold

Technical Data:

	Range	Accuracy
Max power measurement	5 - 800W	±(1.0% + 10)
Max power current(DC)	0 - 35A	±(1.5% + 5)
Max power voltage(DC)	12 - 60V	±(1.5% + 5)
Open circuit current(DC)	12 - 60V	±(1.5% + 5)
Short circuit current(DC)	0 - 35A	±(1.5% + 5)
