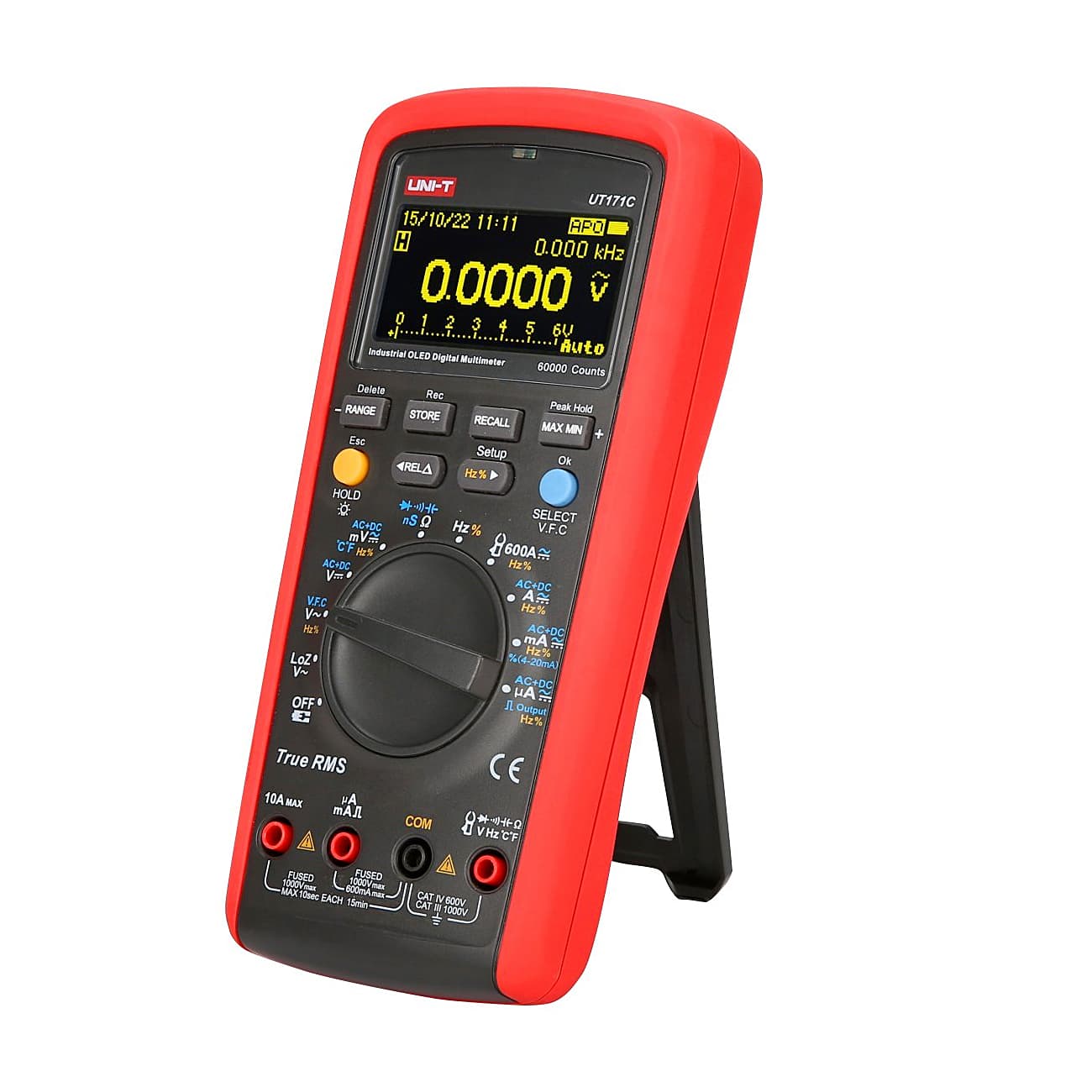

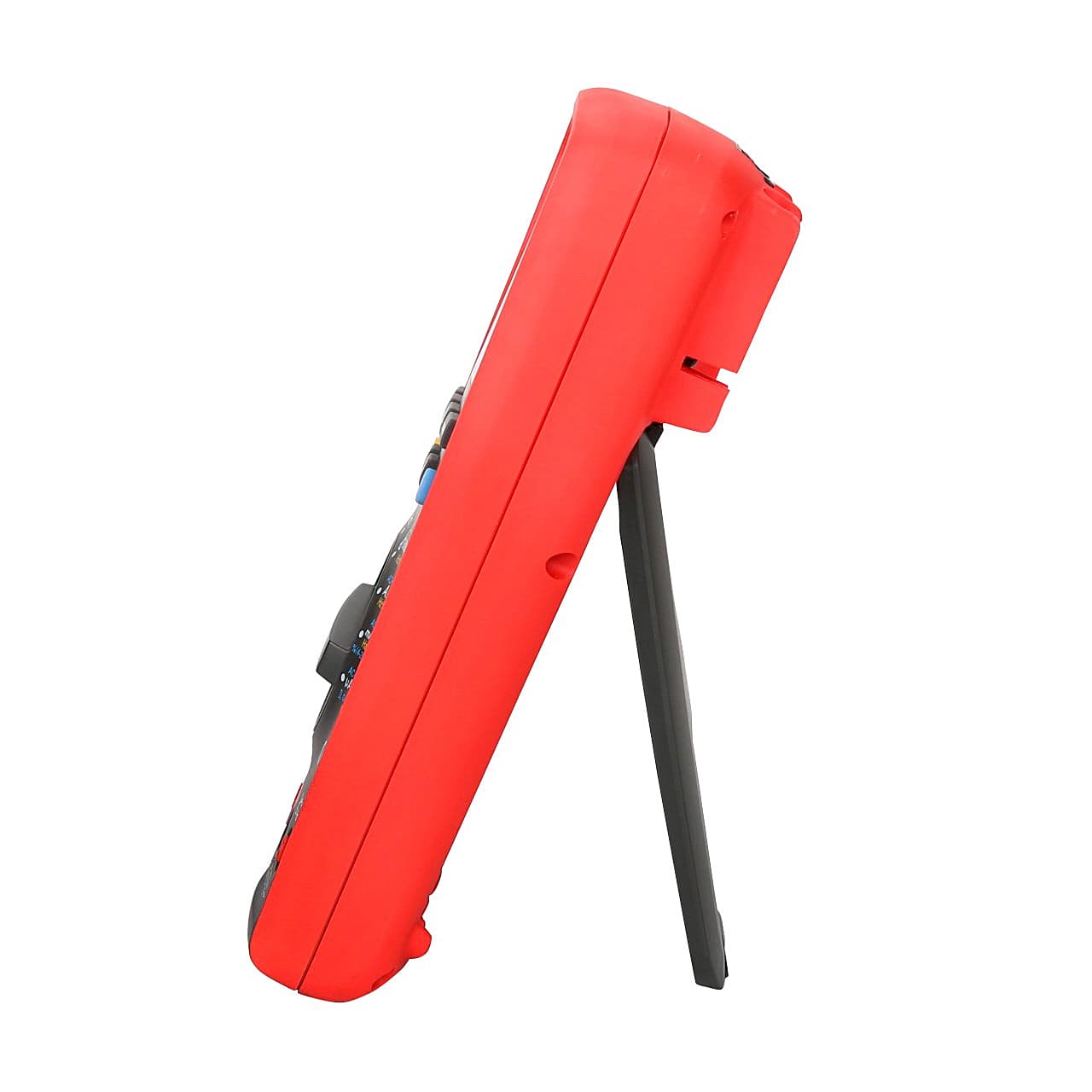

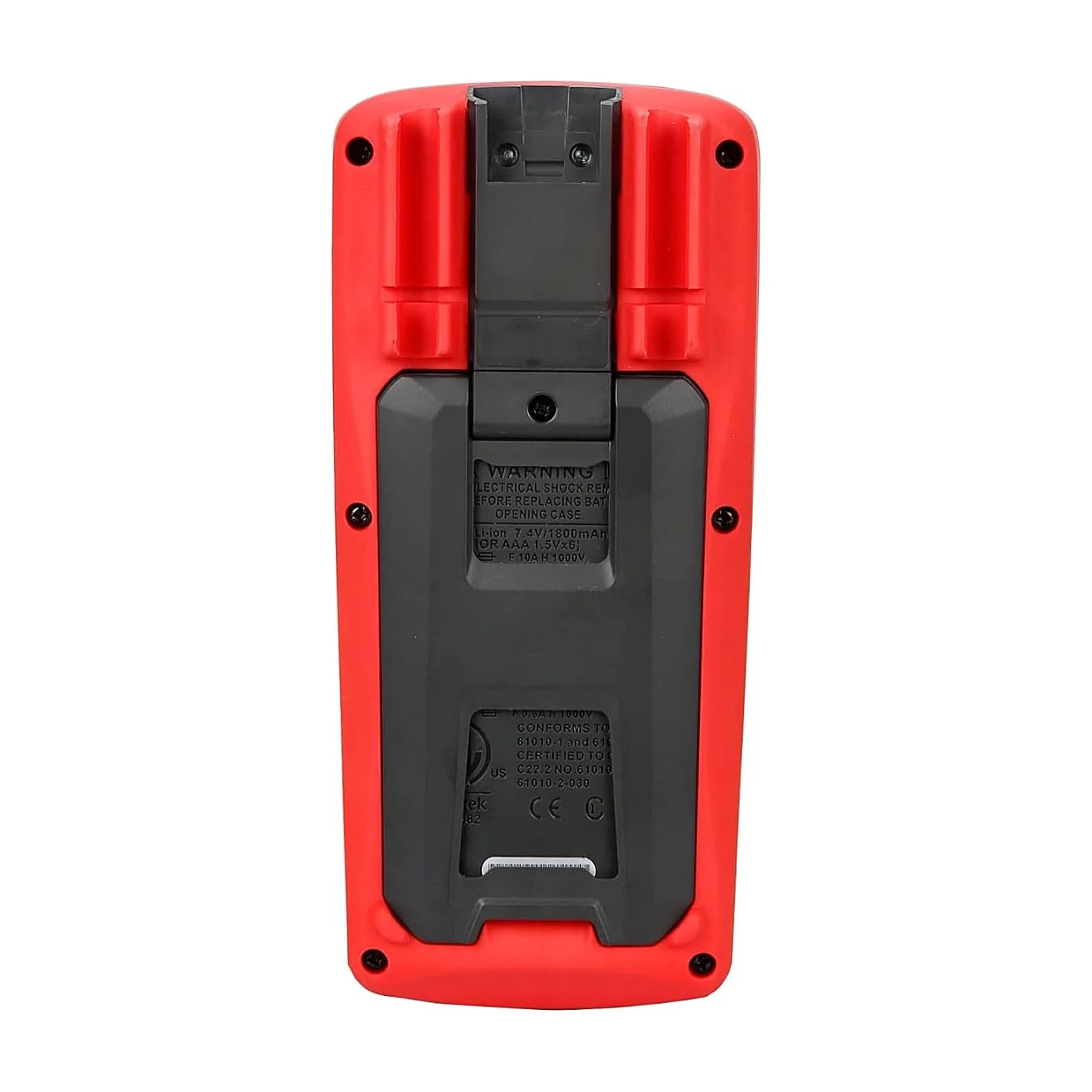

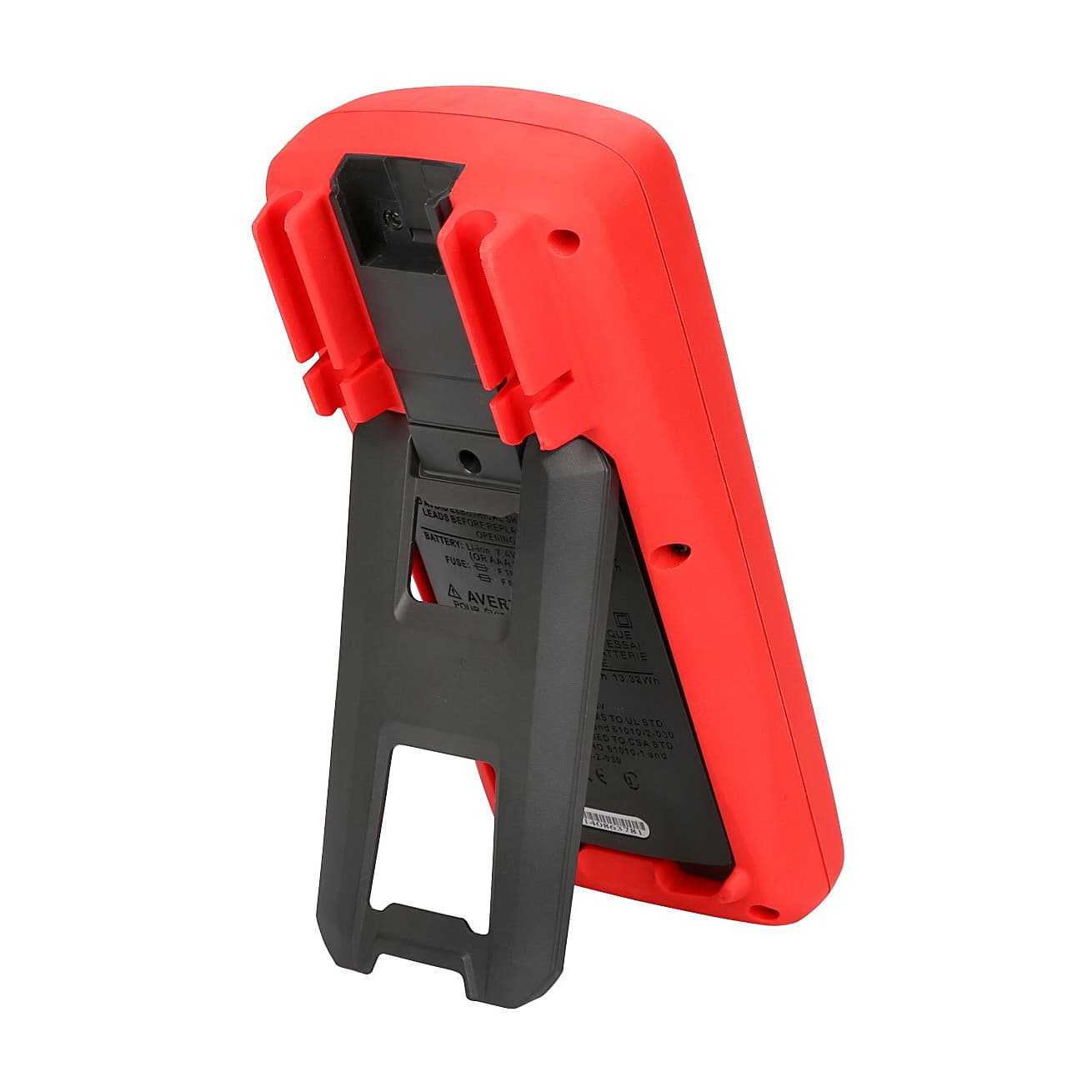

UNI-T 60000 Count Industrial True RMS Digital Multimeter, UT171C
Roll over image to zoom zoom_in
- Weight: 384 Grams
- Product Type: Multimeter
- Display Count: 60000
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹21122 (Incl. of all taxes)
₹17900+ ₹3222 GST (18%)
7 Business Days
1 Set
9030
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
UT171 series are industrial grade multimeters used by professionals. Its built-in square wave output is useful for troubleshooting industrial control signals. Its LoZ (ACV) feature can be used to identify residual (ghost) voltage in large capacitors. UT171C’s OLED display is perfect for working in low temperatures down to -30°C.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- AC+DC measurement
- Peak hold
- Rechargeable battery
- VFC low-pass filtering
- USB/Bluetooth communication
Functions:
- Auto/Manual range
- True RMS
- Continuity buzzer
- NCV/Data hold/MAX/MIN
- Relative mode
- LCD backlight
- Mis-plug alarm
- Low battery indication
- Auto power off
- Input protection
- Input impedance for DCV
- Input impedance for DCV
Applications:
- Capacitance measurement
- Resistance measurement
Package Content:
- Digital Multimeter
- Batteries
- test leads
- point contact temperature probe
- USB interface cable
- power adaptor
- PC software CD
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00300 |
|---|---|
| Product Type | Multimeter |
| Model No | UT171C |
| Display Count | 60000 |
| DC Voltage | 1000V ±(0.025%+5) |
| AC Voltage | 1000V ±(0.4%+40) |
| DC Current | 10A ±(0.15%+2) |
| AC Current | 10A ±(0.75%+5) |
| Resistance (Ohm) | 60MOhm ±(0.05%+2) |
| Admittance (nS) | 60nS ±(1%+10) |
| Capacitance | 60mF ±(2.5%+40) |
| Frequency (Hz) | 10Hz~10MHz ±(0.01%+5) |
| Temperature (°C) | -40°C ~ 1000°C ±(1%+30) |
| Temperature (°F) | -40°F ~ 1832°F ±(1.5%+50) |
| Bandwidth (Hz) | 100kHz |
| 4~20mA loop | 0 ~ 100% |
| LoZ (ACV) | Around 3kOhm |
| Diode | Around 3V |
| Duty Cycle | 0.1% ~ 99.9% |
| Data Storage | 9999 |
| Display Type | OLED |
| Analog Bar Graph | 31 |
| Input impedance for DCV | Around 1GOhm |
| Power Supply | 7.4V 2000mAh Li-ion battery |
| Display Size | 70.6 x 35.3 mm |
| Product Color | Red & Grey |
| Certifications | CE, UKCA, cETLus |
| Dimensions (mm) | 206 x 95 x 55 mm |
