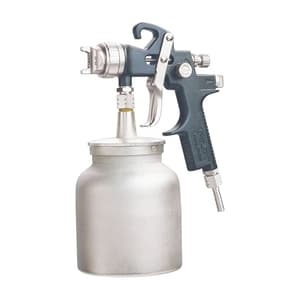

Pilot 1 Ltr High Volume Low Pressure Spray Gun with Bottom Feed Cup, HVLP-08

Shop all Pilot

SKU: PN.SP.SP.00003

Model: HVLP08000

Roll over image to zoom zoom_in
  1. Pilot 1 Ltr High Volume Low Pressure Spray Gun with Bottom Feed Cup, HVLP-08
  2. Pilot 1 Ltr High Volume Low Pressure Spray Gun with Bottom Feed Cup, HVLP-08

  • Weight: 995 Grams
  • Product Type: Spray Gun
  • Application: High Volume Low Pressure
  • Cup Capacity: 1 Ltr
  • Required Pressure: 2-4 kgs/Sq.cm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

3064.46 (Incl. of all taxes)

2597+ ₹467.46 GST (18%)

MRP ₹3330

SAVE 22%



2 Business Days

1 Pcs

84242000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Evolution Series Spray Guns are intelligently designed to provide the user with their spray coating requirements. The HVLP Spray Guns are used for more efficient application resulting in higher transfer efficiency, reduced overspray, material consumption and pollution, while HP Spray Guns integrate the benefits of HVLP & Legacy Series ensuring high quality finishing and transfer efficiency.

  • Large surface area coverage.
  • Symmetric & durable suction feed cup.

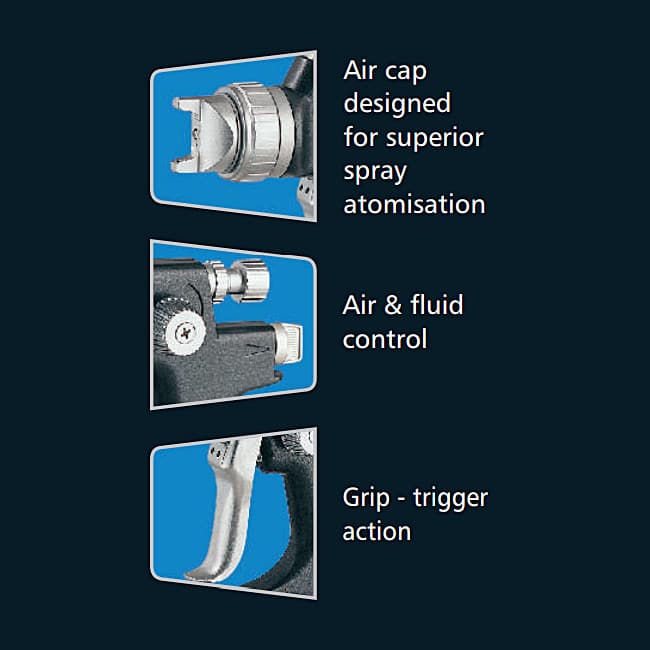

  • Superior air cap performance.
  • Built-in air & spreader control for finer adjustment.
  • High transfer efficiency with minimum wastage.
  • Compatibility with pressure feed tanks.


Areas of Application:

Automobiles
Furniture
Industries
Sports
Textile

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUPN.SP.SP.00003
Product TypeSpray Gun
Model NoHVLP08000
Application High Volume Low Pressure
Cup Capacity 1 Ltr
Gun Distance From Workpiece 200 mm / 8 inch
Fluid Nozzle Orifice Dia. 1.3 mm
Required Pressure 2-4 kgs/Sq.cm
Max. Pattern Width 430 mm
Min. Air-Compressor 2 HP
Air Consumption of Rated Pressure 340-370 lit/min (12-13 c.f.m)
