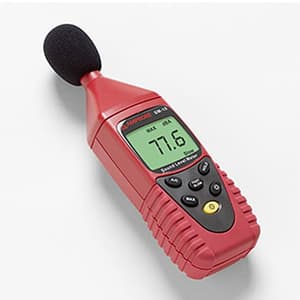

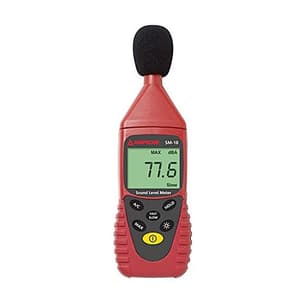

Amprobe 4 Digits Sound Meter, SM-10

Shop all Amprobe

SKU: ME.NO.SO.00003

Model: SM10

Roll over image to zoom zoom_in
  1. Amprobe 4 Digits Sound Meter, SM-10
  2. Amprobe 4 Digits Sound Meter, SM-10
  3. Amprobe 4 Digits Sound Meter, SM-10
  4. Amprobe 4 Digits Sound Meter, SM-10

  • Product Type: Sound Meter
  • Display: 4 digits LCD
  • Auto power off: Approx. 5 min
  • Frequency range: 31.5 Hz to 8 kHz
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

16247.42 (Incl. of all taxes)

13769+ ₹2478.42 GST (18%)

MRP ₹20249

SAVE 32%



3 Business Days

1 Set

9027

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Amprobe SM-10-A Sound Meter has been designed to check compliance with safety regulations and perform acoustic analysis by safety engineers, health, industrial and safety offices as well as quality control.

They use two different weighting filters required by the IEC651 and ANSI S1.4 Type 2 for audio filtering. The A-weighting is for general noise sound level and the C weighting is for measuring the sound level of acoustic material control in various environments (ie 94 dB 1 kHz etc).


Features:

  • Designed to meet the measurement requirements of safety engineers, health, industrial safety offices and quality control in various environments.
  • A and C weightings for checking compliance with safety regulations as well as acoustic analysis
  • Measuring ranges: A weighting 30 ~130dB C weighting 35~130dB
  • Frequency range: 31.5Hz~8KHz
  • Display with 0.1dB steps on a 4 digits LCD
  • Slow (1 sec) and fast (125ms) response settings to check peak and average noise levels
  • Max/min recording
  • Data Hold to freeze reading on a digital display
  • Accessories supplied: carrying case, user manual and 9 V battery (installed)
  • CE, designed to meet IEC651 type2, ANSI S1.4 type2.

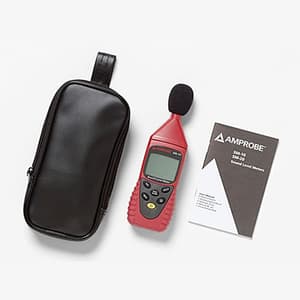

What's Included In This Package:

  • SM-10
  • Carrying case
  • 9 V battery (installed)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.NO.SO.00003
Product TypeSound Meter
Model NoSM10
Display 4 digits LCD
Microphone 1/2 inch electret condenser microphone
Power supply 9V NEDA 1604, IEC 6F22, JIS 006P battery
Auto power off Approx. 5 min
Environment Indoor operation, < 2000 m
Standard applied IEC 651 Type 2, ANSI 1.4 Type 2
Dynamic range 50 dB
Resolution 0.1 dB, Display update: 0.5 sec.
Time weighting FAST(125mS), SLOW(1 sec)
Frequency range 31.5 Hz to 8 kHz
Measuring level range (Auto Range) A-Weighting: 30 dB ? 130 dB C-Weighting: 35 dB ? 130 dB
Data Data hold
