Apex 225 x 175 mm / 9 x 7 Inch Compound Angle Table (Rectangular Table), 704R-225x175

Name: Apex 225 x 175 mm / 9 x 7 Inch Compound Angle Table (Rectangular Table), 704R-225x175
Brand: Apex
SKU: HA.VI.CO.00002
Price: 29815.00 INR
Availability: InStock

Shop all Apex

SKU: HA.VI.CO.00002

Model: 704R-225x175

Roll over the image to zoom in

Visit Apex Store

Key Features

Product Type: Compound Table
Weight: 42 kg
Sizes (mm): 225 x 175 mm
Size (Inches): 9 x 7 inch

See all product information

ToolBuy Benefits

Secure Payments
Order Tracking (opens in a new tab)

₹29,815 (Incl. of all taxes)

₹25,267 + ₹4,548 GST (18%)

MRP was MRP ₹38,872

Save 35%

Dispatch: 5 Business Days

Items in Pack: 1

HSN Code: 84663090

Download Product LeafletNot available

Download Apex CatalogueNot available

Product Information

Highlights

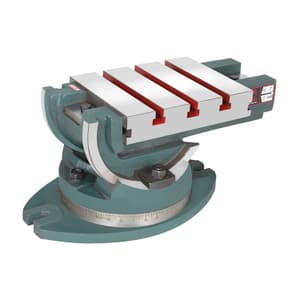

Movement on the table is indexed fully 360 degrees in the Horizontal plane 90 degrees in the Vertical. So that any combination of angles may be obtained "T" Slots in the table are machined from the solid and a hole is bored centrally and fitted with steel Sleeves for receiving Spigots. The table swivels on a ground steel spigot and can be locked in any position by the steel clamp shown.

Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.

Specifications

Technical specifications for Apex 225 x 175 mm / 9 x 7 Inch Compound Angle Table (Rectangular Table), 704R-225x175
Sizes (mm)	225 x 175 mm
Size (Inches)	9 x 7 inch
Height Overall (mm)	200 mm
Length Overall (mm)	390 mm
Tenon Slot Size (mm)	20 mm
T-Slots Size (mm)	13 mm
Finish	Hammer Tone Mid Grey
