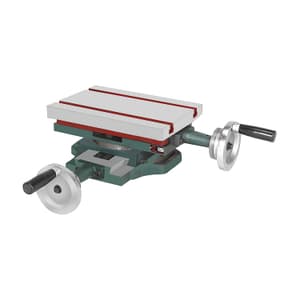

Apex 300 x 200 mm / 12 x 8 Inch Compound Sliding Table With Calibrated Wheels & Swivel Graduated Base, 707-300x200
Roll over image to zoom zoom_in
- Weight: 40 Kg
- Product Type: Compound Table
- Sizes (mm): 300 x 200 mm
- Size (Inches): 12 x 8 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹23368.72 (Incl. of all taxes)
₹19804+ ₹3564.72 GST (18%)
MRP ₹30468.15
SAVE 35%
5 Business Days
1 Pcs
6302
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- The T-Slots are machined from Solid.
- Equipped with two-axis positioning.
- Dovetailed slides have adjustable steel gibs to compensate for wear.
- The surface table can swivel all around and 0° is marked to show the angular movement.
- The base has bolt slots for machine mounting.
Application:
- These precision-built standard slide tables are essential for accurate boring drilling, grinding, and milling operations
Construction:
- Casting is the close Grey Iron dully stress relieved accurately machined and the ground surface provides tolerance well within 0.01 MM / 100 MM.
- Precision ACME feed screw is running in a hot-stamped phosphor Bronze Nut thrust color for smooth operation and the minimum backlashes.
- The top surface of the table has two equally spaced cross T-Slots.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| SKU | HA.VI.CO.00006 |
|---|---|
| Product Type | Compound Table |
| Model No | 707-300x200 |
| Sizes (mm) | 300 x 200 mm |
| Size (Inches) | 12 x 8 inch |
| Height Overall (mm) | 120 mm |
| Length Overall (mm) | 510 mm |
| Travel Bothways (mm) | 200 x 125 mm |
| T-Slots Size (mm) | 13 mm |
| Swivel Graduation | 360° |
| Wheel Graduation (inches) | .002 inch |
| Finish | Amazon Green |
